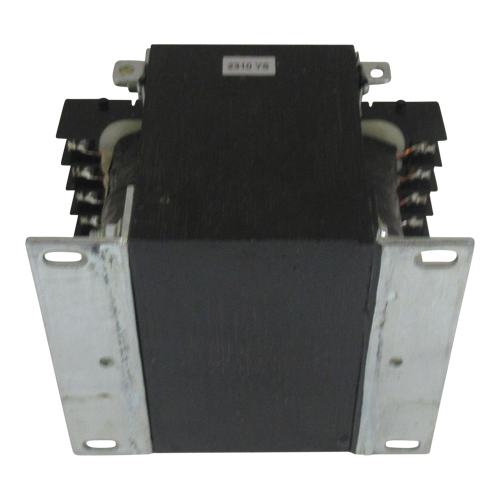

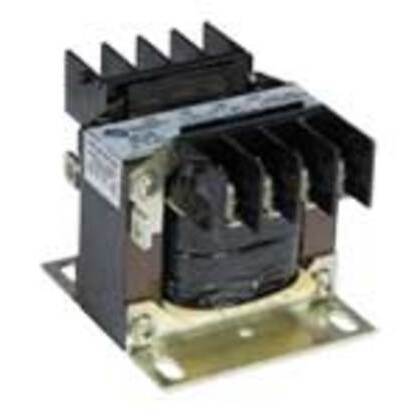

Hammond Power SP350MQMJ Control Transformer 350VA 240x480-120x240

Product Description

The Hammond Power SP350MQMJ is a 350VA control transformer ideally suited for general-purpose, industrial, and light-duty loads. Designed for applications where high inrush or machine tool duty are not necessary, this open-style control transformer offers an efficient and economical solution.

• Well suited for HVAC applications
• Ideal for signal and alarm systems
• Perfect for motor control circuits, lighting and circuit isolation

Product Highlights

This transformer is an efficient and economical solution for various applications, including HVAC, signal and alarm systems, and motor control circuits.

Product Information

Standard Information

• Brand: Hammond Power
• Manufacturer Part Number: SP350MQMJ

Technical Specifications

• Manufacturer Part Number: SP350MQMJ
• Manufacturer: Hammond Power Solutions
• Number of Outlets: 1
• Number of Outputs: 1
• UNSPSC Code: 39120000
• Unit of Measure: EA
• Series: HPS Spartan Series
• Needed Voltage: 110 VAC, 115 VAC, 120 VAC, 220 VAC, 230 VAC, 240 VAC
• Mounting Type: Panel Mount
• Mounting Hole Size: 3.31/3.58 in
• Secondary Voltage: 120 (115, 110)/240 (230, 220) VAC
• UPC Code: 803423098797
• Primary Type: Industrial Transformer
• Primary Voltage: 240 (230, 220)/480 (460, 440) VAC
• Power Rating: 350 VA
• Secondary Current: 2.92/1.46 A
• Phase: 1 Phase
• Available Voltage: 220 VAC, 230 VAC, 240 VAC, 440 VAC, 460 VAC, 480 VAC
• Frequency: 50/60 Hz
• Type: Control Transformer
• Capacity: 350 VA
• Configuration: Open-Frame
• Termination: screw
• Standards: CSA, UL, CE
• Volt Amps: 350
