Hammond Power Solutions Q005XEKF Potted 1PH 5KVA 440-240 CU

Product Description

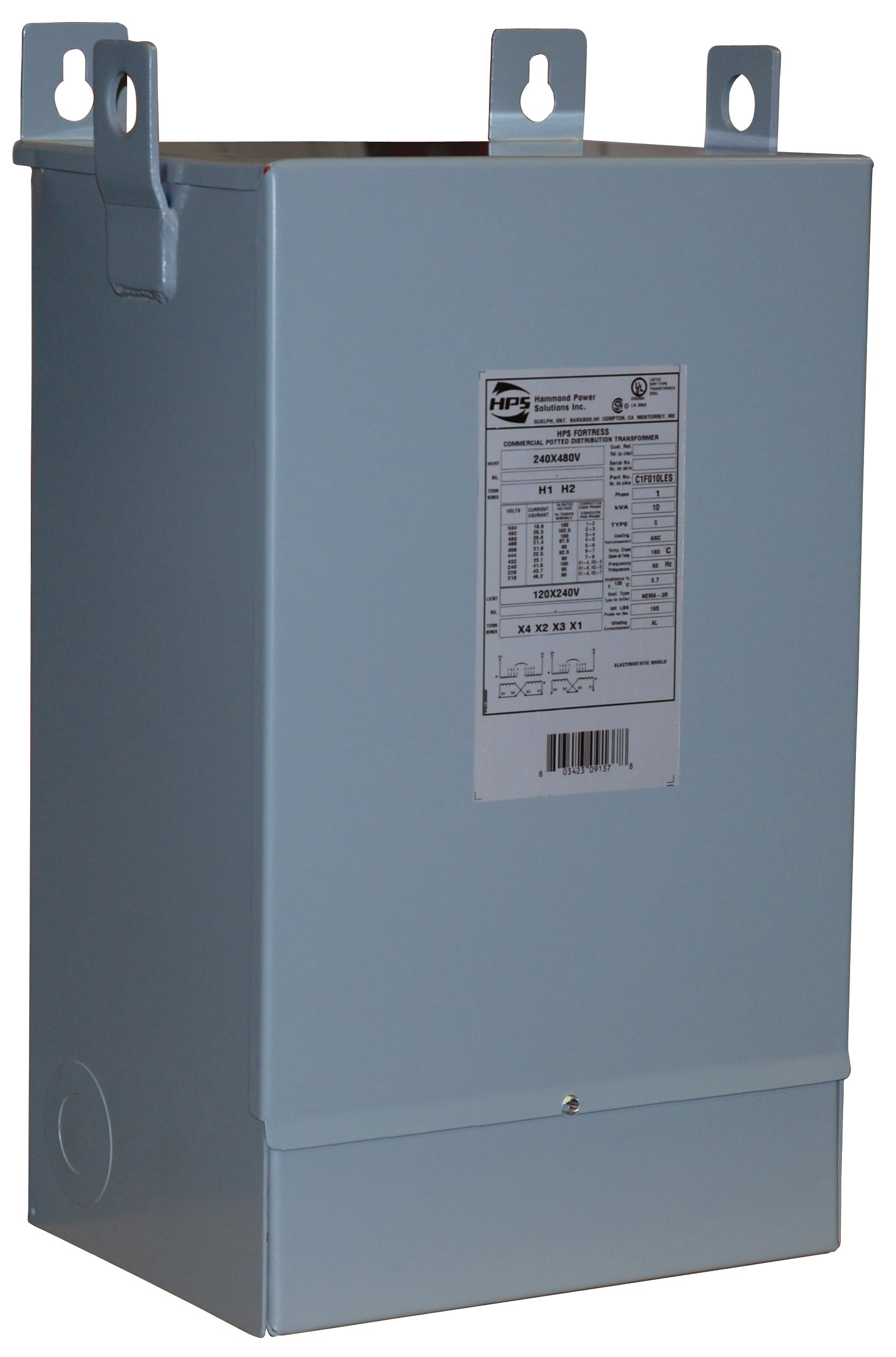

The HAMMOND POWER Solutions Q005XEKF is a 600V Class hazardous location single phase encapsulated distribution transformer, export model, with a 5 kVA rating. It is designed for indoor or outdoor use with an NQ5-N3R enclosure. Suitable applications include petrochemical, marine, industrial, oil & gas, mining, and waste water treatment.

• Encapsulated distribution transformer
• Suitable for hazardous locations
• Designed for indoor or outdoor use

Product Highlights

Single phase encapsulated distribution transformer for hazardous locations with a 5 kVA rating and NQ5-N3R enclosure.

Product Information

Standard Information

• Brand: HAMMOND POWER Solutions
• Manufacturer Part Number: Q005XEKF

Technical Specifications

• GTiN: 00803423033064
• Type: Transformer > Distribution > Potted > Hazardous Location > Single Phase
• Brand: Hammond Power Solutions
• Width: 10 in
• Height: 17-1/4 Inch
• Length: 7-3/4 Inch
• Wattage: 5000 Watt
• Enclosure: NQ5-N3R - Indoor or Outdoor
• Sub Brand: Industrial Potted Transformer
• Product UPC: 80342303306
• 12-Digit UPC: 803423033064
• Applications: Petrochemical, Marine, Industrial, Oil & gas, Mining, Waste Water
• Input Voltage: 190/200/208/220/240 x 380/400/416/440/480 V
• Output Voltage: 120/240 V
• Temperature Rating: 40 C
• Winding Material: CU + Shield - above 500VA
• kVA: 5 kVA
• Primary Voltage: Export
• Secondary Voltage: 120/240
• Temperature Rise & Insulation Class: 115C
• BIL Rating: 10 kV
• Frequency: 60 Hz (50/60 Hz available)
• Mounting: Floor or wall/ceiling mounting available
• Sound Level: Meets NEMA ST-20 standards
• UL: File: E258346
• Product Series: HPS Titan
• Family Series: Hammond Power Solutions Transformers, HPS Titan Series
• Description: HPS Titan, 5kVA, 1PH, NEMA 3R, Pri 208/415, Sec 120/240, 10in.Hx17.25in.Wx7.75in.D
• Phase: 1
• VA Rating: 5,000 VA
• Primary Fuseholder: Not Available
• Secondary Fuseholder: Not Available
• NEMA Rating: NEMA 3R
• Insulation Class: Class B
• Temperature Rise (F): 176 °F
• Approvals: UL
