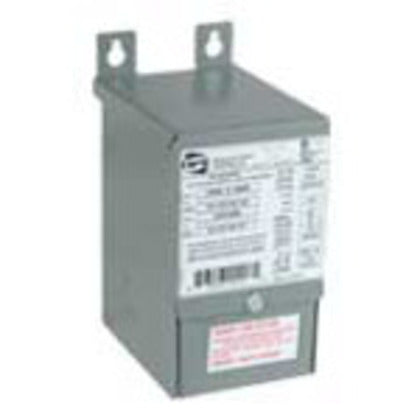

Hammond Power Solutions Q002LEKF 2 kVa 240 x 480 Volt Primary 120/240 Volt Secondary 1-Phase Encapsulated Transformer

Product Description

The HAMMOND POWER Solutions Q002LEKF is an HPS Titan encapsulated transformer designed for harsh environments and hazardous locations where gases, liquids, and dust could lead to serious consequences. It features an ANSI 61 grey, UL50 heavy-duty NEMA type 3R enclosure and standard wall mounting. Typical applications include institutional, commercial, industrial, petrochemical, marine, and mining.

• HPS Titan encapsulated transformer
• Designed to operate in harsh environments/hazardous locations
• ANSI 61 grey, UL50 heavy duty NEMA type 3R enclosure

Product Highlights

This encapsulated transformer is ideal for use in demanding conditions

Product Information

Standard Information

• Brand: HAMMOND POWER Solutions
• Manufacturer Part Number: Q002LEKF
• Country of Origin: United States

Technical Specifications

• Type: Transformer > Distribution > Potted > Hazardous Location > Single Phase
• Brand: Hammond Power Solutions
• Width: 7 in
• Height: 11-3/4 Inch
• Length: 6-1/2 Inch
• Wattage: 2000 Watt
• Enclosure: NQ4-N3R - Indoor or Outdoor
• Frequency: 60 Hz
• Sub Brand: Industrial Potted Transformer
• Product UPC: 80342303295
• 12-Digit UPC: 803423032951
• Applications: Petrochemical, Marine, Industrial, Oil & gas, Mining, Waste Water
• Input Voltage: 240X480 V
• Output Voltage: 120/240 V
• Temperature Rating: 40 C
• Configuration: Encapsulated
• Manufacturer Part Number: Q002LEKF
• Power Rating: 2 kVA
• Primary Type: Industrial Transformer
• Series: Universal Series
• UPC Code: 803423032951
• Phase: Single Phase
• Primary Voltage: 240x480V
• VA: 2000VA
• Insulation System: 130°C (80°C rise) standard on all units
• Encapsulation: All units are encapsulated with electrical grade silica sand and resin compounds
• Enclosure Type: Heavy duty type 3R, optional type 4, 4X (stainless steel) and 12
• Termination: Front accessible separate high and low voltage lead wires or copper tabs
• Conduit Knock-Outs: Standard side and rear knock-outs on all units (no knock-outs on Stainless Steel enclosures)
• Mounting: Standard Wall Mounting, Lifting provisions standard on all units
• Seismic: Seismically certified in accordance with IBC 2009; Section 1613 Earthquake Loads, for SDS <= 2.00g, z/h = 1.0, and IP = 1.5
• Volt Amps: 2kVA
• type_updatedforcompatibility: Distribution
• va_rating: 2,000 VA
• primary_voltage: 240 V, 480 V
• secondary_voltage: 120 V, 240 V
• enclosed: Yes
• primary_fuseholder: Not Available
• secondary_fuseholder: Not Available
• nema_rating: NEMA 3R
• insulation_class: Class B
• temperature_rise_f: 176 °F
