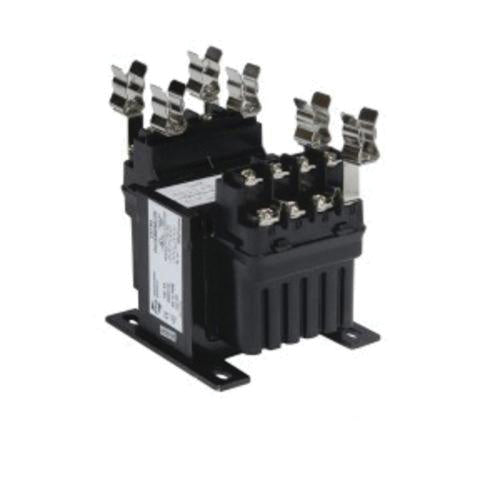

Hammond Power Solutions PH150AJ Transformer 150VA

Product Description

The HAMMOND POWER SOLUTIONS PH150AJ is an Imperator group A encapsulated machine tool industrial control transformer. Designed for high inrush industrial applications using electromagnetic components like relays and solenoids. Features high-quality silicon steel laminations and all-welded construction. Suitable for automation, panel shops, machines, solenoids, control applications and timers.

• Designed to meet high inrush industrial applications
• Suitable for use with relay, solenoids and magnetic motor starters
• High quality, high permeability silicon steel laminations

Product Highlights

This industrial control transformer is ideal for automation and control applications requiring high inrush capabilities and reliable performance.

Product Information

Standard Information

• Brand: HAMMOND POWER SOLUTIONS
• Manufacturer Part Number: PH150AJ
• Country of Origin: US

Technical Specifications

• Type: Dry, Core and Coil, Molded
• Brand: Hammond Power Solutions
• Width: 4.63 in
• Height: 3.81 Inch
• Length: 4 Inch
• Wattage: 150 VA
• Enclosure: Core and Coil
• Frequency: 60 Hz
• Sub Brand: Machine Tool Industrial Control Transformer
• Applications: Automation, Panel shops, Machines, Solenoids, Control Applications, Timers
• Mounting Type: Panel
• Primary Voltage: 600/575/550 V
• Secondary Voltage: 120 - 240 V/115 - 230 V/110 - 220 V
• Temperature Rating: 40 degrees C
• Mounting: Panel
• Standard: CSA; UL
• Application: Automation; Panel shops; Machines; Solenoids; Control Applications; Timers
• Manufacturer: HAMMOND POWER SOLUTIONS
• Frequency Rating: 60 Hz
• Special Features: Potted control transformer for high inrush applications powering coils. Options
• Phase: Single Phase
• Series: HPS Imperator
• VA: 150VA
• Part Number: PH150AJ
• MPN: PH150AJ
• Model: PH150AJ
• Volts, Secondary: 120V
• Insulation Class: 105 deg C
• Temperature Rise: 55 deg C
• Terminal Type: Screw, Standard
