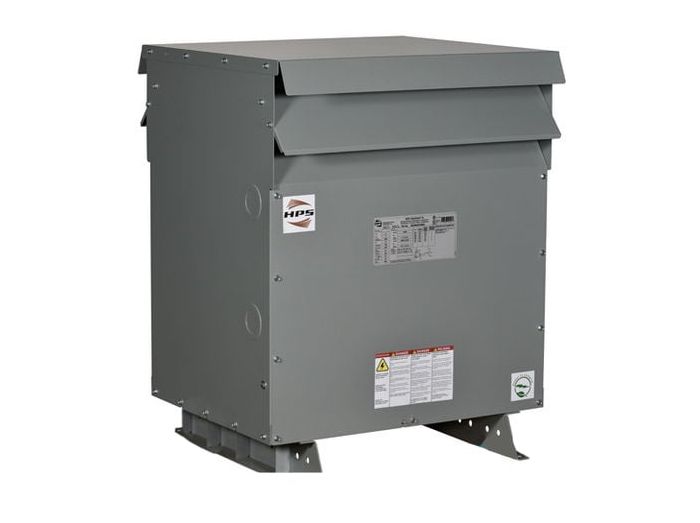

Hammond Power SG3C0075KD Transformer 75 kVA

Product Description

The Hammond Power SG3C0075KD transformer is a general-purpose distribution transformer rated for 600 volts and below. It is used for supplying appliance, lighting, heating, motorized machine, and power loads from electrical distribution systems. Meets DOE 10 CFR part 431 efficiency standards and has a standard Type 3R enclosure.

• Suitable for indoor or outdoor applications.
• Meets current DOE 10 CFR part 431 (2016) and C802.2 efficiencies in an outdoor type enclosure.
• Standard 150 deg C temperature rise and 220 deg C insulation class.

Product Highlights

This transformer is energy efficient and has increased reliability and protection against critical equipment failure. It has standard integral floor and wall mounting brackets for faster installation.

Product Information

Standard Information

• Brand: Hammond Power
• Manufacturer Part Number: SG3C0075KD
• Country of Origin: MUL

Technical Specifications

• Manufacturer Part Number: SG3C0075KD
• Brand: Hammond Power Solutions
• Frequency: 60 Hz
• Power Rating: 75 kVA
• Primary Type: Industrial Transformer
• Series: Sentinel Series
• Application: General purpose for supplying appliance, lighting, motorized machine and power loads from electrical distribution systems.
• Circuit Type: ST-20 compliant
• Connection Type: Lug/Pad
• Cooling: Convection cooled
• Enclosure: DH3-N3R - Indoor or Outdoor
• Enclosure Type: NEMA 3R
• EU RoHS Indicator: Y
• Height: 36.0 in
• Insulation Class: 220 C
• KVA Rating: 75
• Length: 27.0 in
• Maximum Amperage Rating: 240D/120CT V
• Mounting: Ceiling, Floor, Wall
• Mounting Type: Floor
• Number Of Phases: 3
• Power Factor: 480.00 V
• Standard: CSA, UL
• Standards: UL E112313 Listed, CSA File No. LR3902 Certified, RoHS Compliant
• Sub Brand: Energy efficient General Purpose Distribution Transformer
• Temperature Rating: Typical 30 Average/ 40 Maximum C
• Type: Transformer > Distribution > DOE 2016 Energy Efficient > General Purpose > Three Phase
• UNSPSC: 39121001
• Width: 28.3 in
• Winding: Aluminum
• Frequency Rating: 60 Hz
• Phase: 3 kVA
• Primary Voltage: 480D V
• Secondary Voltage: 240D/120CT or 240Y/139 V
• Product Series: Sentinel G (Gen. 3)
• Family Series: Hammond Power Solutions Transformers, Sentinel G (Gen. 3) Series
• Description: D16 SNTL-G 3PH 75kVA 480D-240D/120CT AL 60Hz 150C 3R
• VA Rating: 75,000 VA
• Configuration: Delta Primary/Delta Secondary
• Enclosed: Yes
• Primary Fuseholder: Not Available
• Secondary Fuseholder: Not Available
• NEMA Rating: NEMA 3R
• Termination: Connecting Cable
• Temperature Rise: 150 deg C
• Enclosure Rating: NEMA 3R
• Volts, Primary: 480V Delta
• Volts, Secondary: 240V Delta/120V CT
• Weight: 510 lb.
• Temperature Rise (F): 302 F
