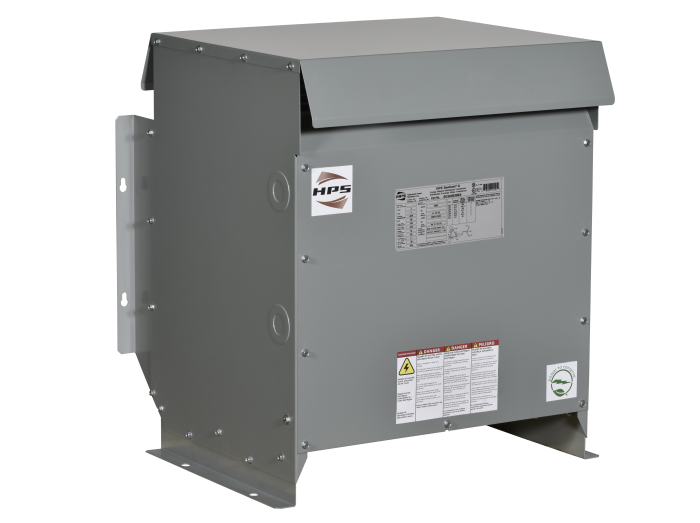

Hammond Power SG3A0045KB0CB Sentinel G 45kVA

Product Description

The Hammond Power SG3A0045KB0CB is a general purpose distribution transformer rated for 600 volts and below. It is used for supplying appliance, lighting, heating, motorized machine and power loads from electrical distribution systems. It has a standard Type 3R enclosure suitable for indoor or outdoor applications.

• Manufactured from quality non-aging, cold rolled, silicon steel laminations using state-of-the-art equipment
• Cores are precision cut to close tolerances which eliminates burrs and improves performance
• Core is coated to prevent the ingress of moisture

Product Highlights

This Hammond Power distribution transformer offers increased reliability and protection against critical equipment failure with a standard 10kV BIL rating.

Product Information

Standard Information

• Brand: Hammond Power
• Manufacturer Part Number: SG3A0045KB0CB

Technical Specifications

• Phase: Three Phase
• Primary Voltage: 480 V
• Series: HPS Sentinel
• Type of Transformer: Distribution
• VA: 45kVA
• Alternate Part Number: HPS Sentinel Series
• Width: 25.75
• Height: 28.75
• Length/Depth: 23.8
• UNSPSC: 39121001
• UPC: 803423123949
• Replaced Catalog Number: NMK045KBCB
• Certificate: cUL/UL Listed, CSA US
• Electrical Phase: 3 Ph
• Material: Copper
• Product Dimensions: 28.75-in X 25.75-in X 23.80-in
• Manufacturer Part Number: SG3A0045KB0CB
• Manufacturer: Hammond Power Solutions
• Product Series: Sentinel G (Gen. 3)
• Family Series: Hammond Power Solutions Transformers, Sentinel G (Gen. 3) Series
• Description: D16 SNTL-G 3PH 45kVA 480D - 208Y/120V CU 60Hz 80C 3R
• VA Rating: 45,000 VA
• Configuration: Delta Primary/Wye Secondary
• Secondary Voltage: 120 V, 208 V
• Enclosed: Yes
• Primary Fuseholder: Not Available
• Secondary Fuseholder: Not Available
• Mounting: Ceiling, Floor, Wall
• NEMA Rating: NEMA 3R
• Termination: Connecting Cable
• Insulation Class: Class R
• Temperature Rise (F): 176 00b0F
• Approvals: CSA, UL
