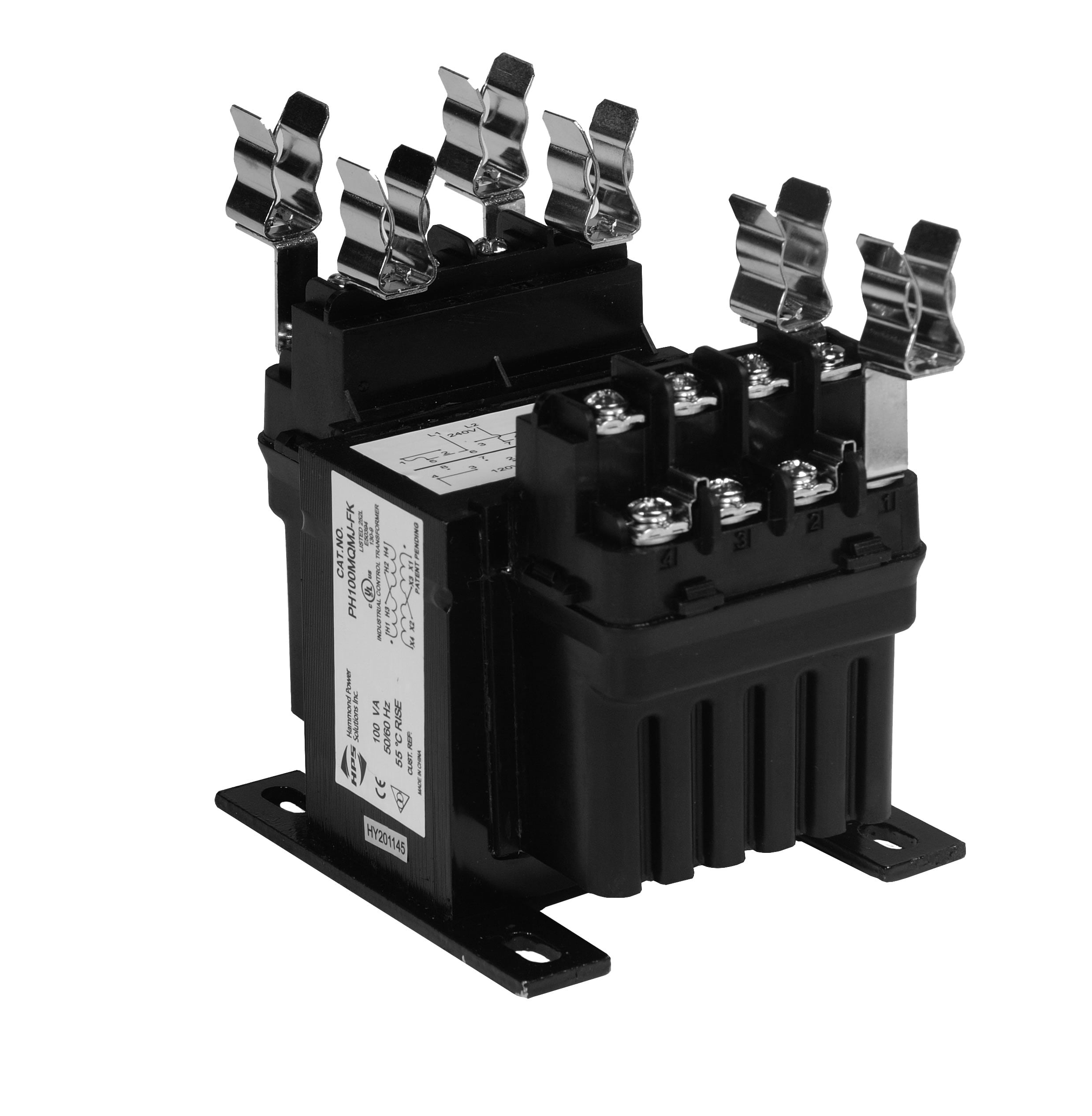

Hammond Power PH50PG-FK Transformer 50VA 120/240VAC Primary 12/24VAC Secondary replacement PT50PG-FK

Product Description

The Hammond Power PH50PG-FK is an HPS Imperator series industrial control transformer with a unique, innovative, and compact design suitable for industrial control applications. Its encapsulated windings protect against moisture and contaminants. The custom molded coil covers combine cooling properties with a clean look.

• 600V Class, Machine Tool Rated Industrial Control Transformers
• Constructed with High Quality Silicon Steel Laminations
• cULus Listed and CE Marked

Product Highlights

This transformer features a unique terminal block design for quick installation and has a lifetime warranty.

Product Information

Standard Information

• Brand: Hammond Power
• Manufacturer Part Number: PH50PG-FK

Technical Specifications

• Brand: Hammond Power Solutions
• Manufacturer Part Number: PH50PG-FK
• Configuration: Encapsulated
• Frequency: 50/60 Hz
• Phase: 1 Phase
• Power Rating: 50 VA
• Primary Type: Industrial Transformer
• Primary Voltage: 110 V, 115 V, 120 V, 220 V, 230 V, 240 V
• Secondary Current: 4.17/2.08 A
• Secondary Voltage: 11 V, 11.5 V, 12 V, 22 V, 23 V, 24 V
• Series: Power PH Series
• Standards: cULus, CE
• Termination: screw
• Type: Control Transformer
• VA: 50VA
• Product Series: HPS Imperator
• Family Series: Hammond Power Solutions Transformers, HPS Imperator Series
• Description: HPS Imperator, 50VA, 1PH, Open, Pri 120x240, Sec 12x24, 3.19in.Hx3in.Wx4.38in.D
• Enclosed: No
• Primary Fuseholder: Included
• Secondary Fuseholder: Included
• Insulation Class: Class A
• Temperature Rise (F): 131 . The Hammond Power PH50PG-FK is an HPS Imperator series industrial control transformer with a unique, innovative, and compact design suitable for industrial control applications. Its encapsulated windings protect against moisture and contaminants. The custom molded coil covers combine cooling properties with a clean look.
• bullet_points: ['600V Class, Machine Tool Rated Industrial Control Transformers', 'Constructed with High Quality Silicon Steel Laminations', 'cULus Listed and CE Marked']
• product_highlights: This transformer features a unique terminal block design for quick installation.
