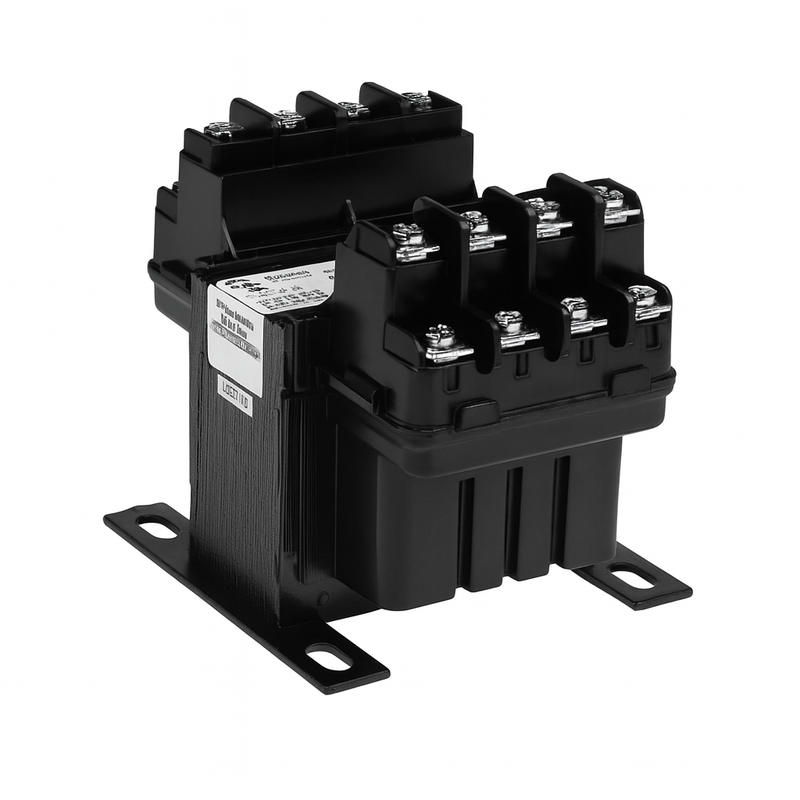

Hammond Power PH250PG-FK Transformer 250VA

Product Description

The Hammond Power PH250PG-FK is a machine tool rated industrial control transformer from the HPS Imperator series. Designed for high inrush industrial applications using electromagnetic components, it features 11 standard voltage groups and a VA range from 50VA to 1500VA. The unique terminal block design allows for easy installation of fuse clips.

• 600V class, rated industrial control transformers
• Constructed with high quality silicon steel laminations
• Encapsulated coils protect against moisture and contaminants

Product Highlights

Perfect for applications using relays, solenoids, and magnetic motor starters.

Product Information

Standard Information

• Brand: Hammond Power
• Manufacturer Part Number: PH250PG-FK

Technical Specifications

• Phase: Single Phase
• Primary Voltage: 120x240 VAC
• Series: HPS Imperator
• Type of Transformer: Control Power
• VA: 250VA
• Brand: Hammond Power Solutions
• Frequency: 50/60 Hz
• Manufacturer Part Number: PH250PG-FK
• Power Rating: 250 VA
• Primary Type: Industrial Transformer
• Secondary Current: 20.8/10.4 A
• Secondary Voltage: 12 (11.5, 11)/24 (23, 22) VAC
• Standards: cULus, CE
• Termination: screw
• Configuration: Encapsulated
• Applications: Automation, Panel shops, Machines, Solenoids, Control Applications, Timers
• Enclosure: Core and Coil
• Temperature Rating: 30 to 40
• Wattage: 250 Watt
• Sub Brand: Machine Tool Industrial Control Transformer
• Mounting Type: Panel
• Enclosure Type: Open/Core and Coil
• Connection Type: Terminal Block
• Frequency Rating: 50/60
• Type: Dry Type Encapsulated Machine Tool Rated Molded
• Includes: Primary and Secondary Fuse Clips
• Number of Outlets: 2
