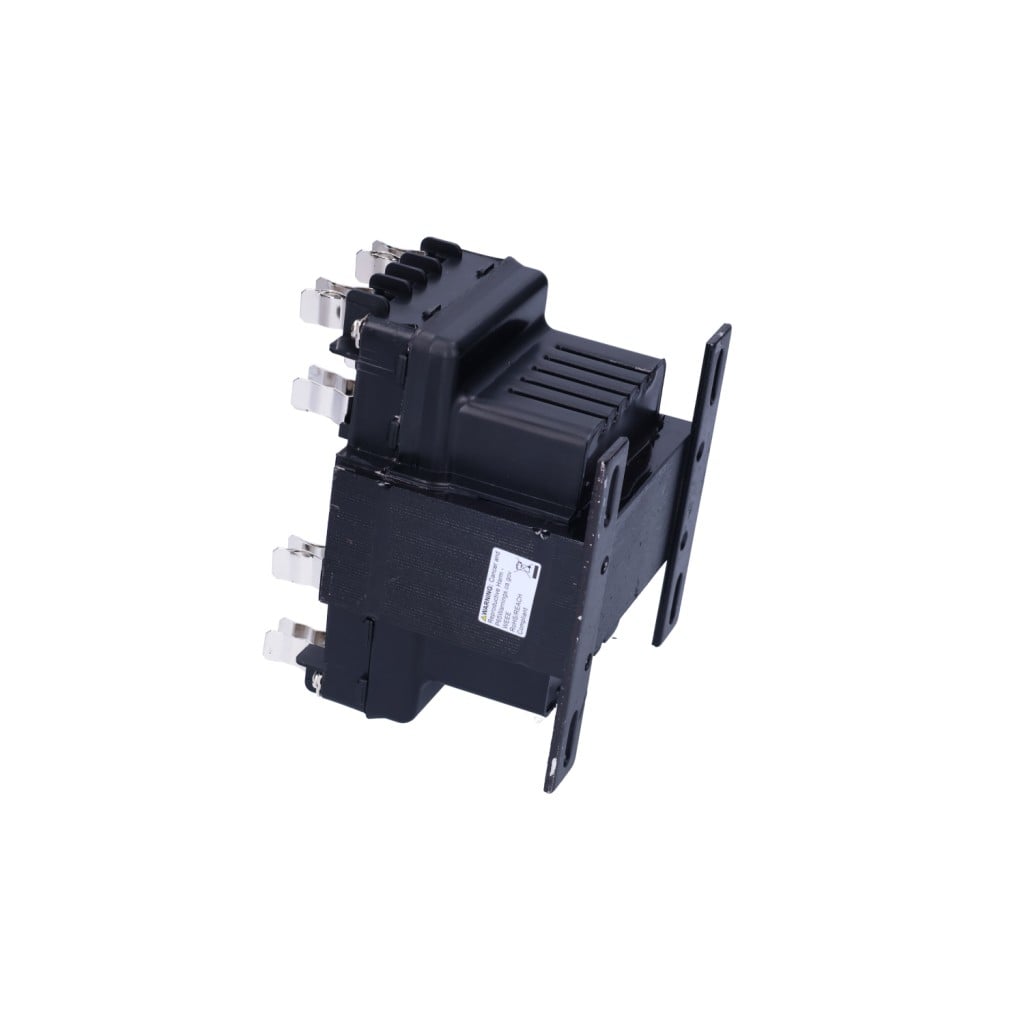

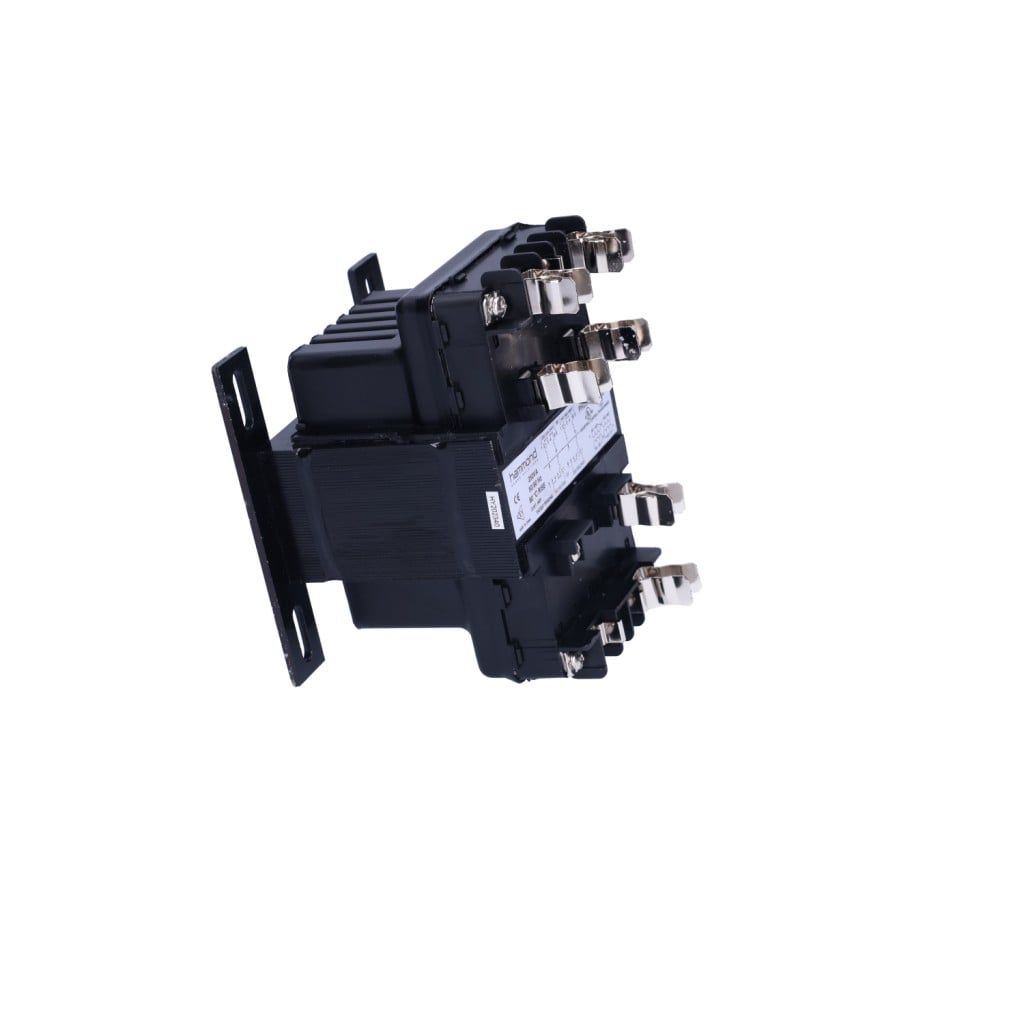

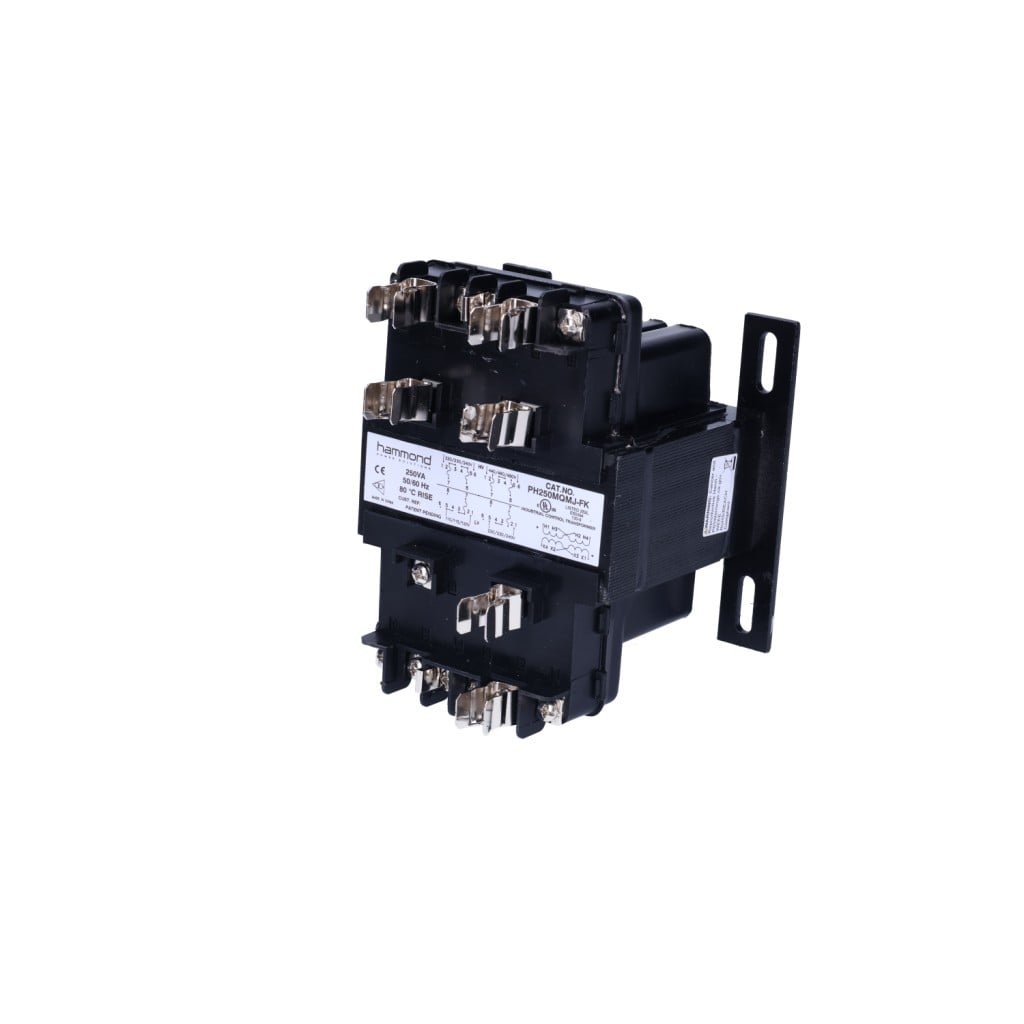

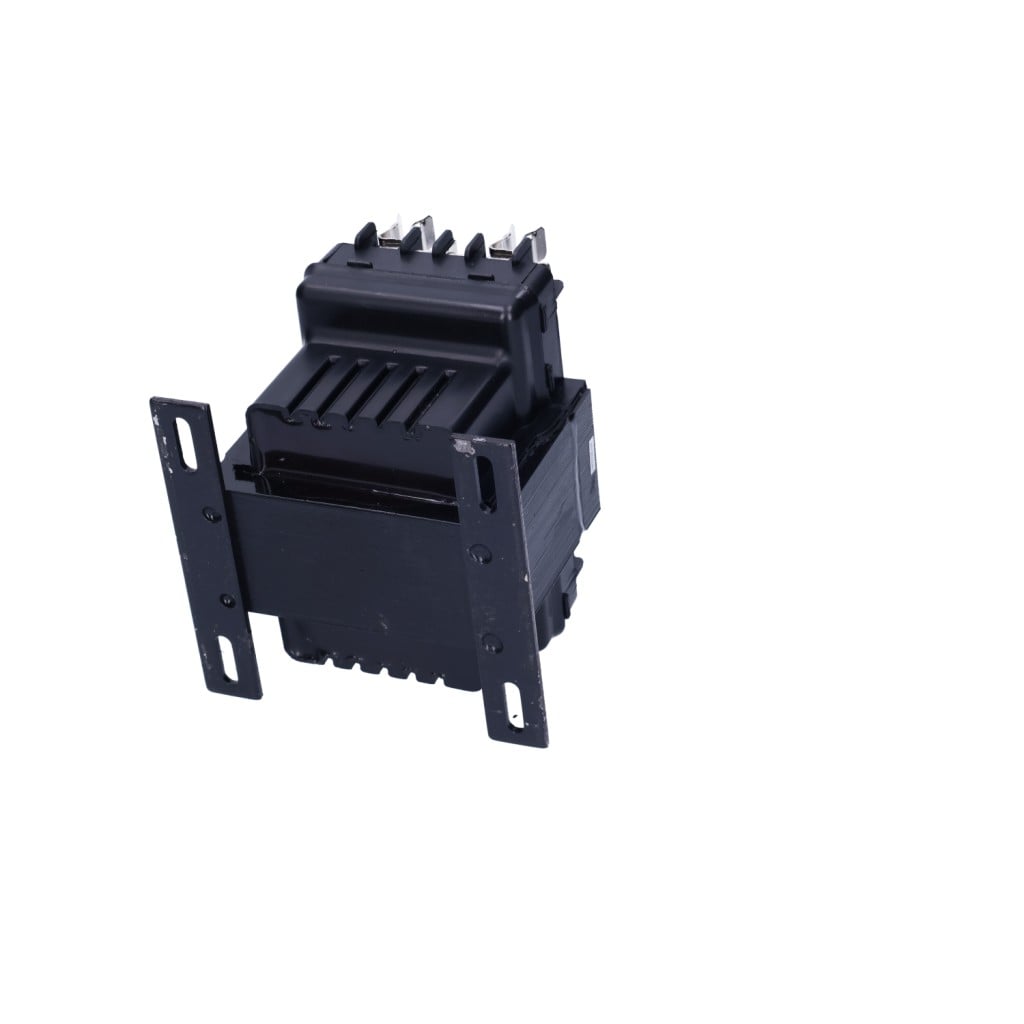

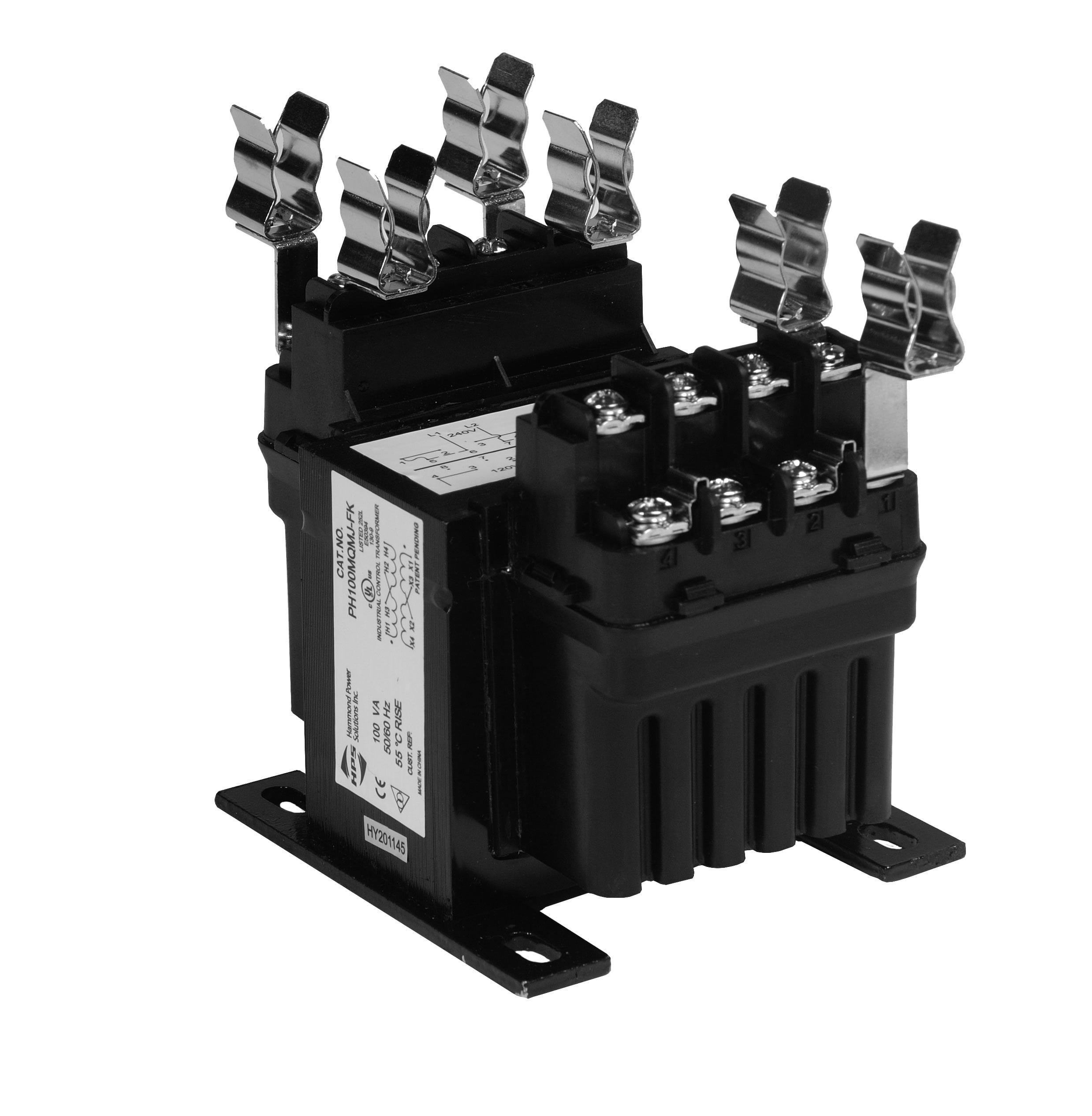

Hammond Power PH250MQMJ-FK Transformer 250VA

Product Description

The Hammond Power Solutions PH250MQMJ-FK is a transformer with an innovative and compact design suitable for industrial control applications. The windings and internal terminations are encapsulated, protecting them from moisture and contaminants. Its unique terminal block design allows for quick and easy installation of standard secondary or optional primary fuse clips. It is ideal for industrial, automation, panel shops, machines, panel boards, solenoids, control and timer applications.

• 600V Class, Machine Tool Rated Industrial Control Transformers
• Constructed with high quality silicon steel laminations that provide optimum performance and reliability
• cULus Listed (Approved for U.S. and Canada)

Product Highlights

The Hammond Power Solutions PH250MQMJ-FK transformer ensures optimum performance and reliability for industrial control applications.

Product Information

Standard Information

• Brand: Hammond Power
• Manufacturer Part Number: PH250MQMJ-FK

Technical Specifications

• Manufacturer Part Number: PH250MQMJ-FK
• Manufacturer: Hammond Power Solutions
• Operating Temperature: 80 00b0C
• Series: Power PH Series
• Needed Voltage: 110 VAC, 115 VAC, 120 VAC, 220 VAC, 230 VAC, 240 VAC
• Mounting Type: Panel Mount
• Mounting Hole Size: 3.13 in, 3.75 in, in
• Secondary Voltage: 120 (115, 110)/240 (230, 220) VAC
• UPC Code: 803423081850
• Primary Type: Industrial Transformer
• Primary Voltage: 240 (230, 220)/480 (460, 440) VAC
• Power Rating: 250 VA
• Secondary Current: 2.08/1.04 A
• Phase: 1 Phase
• Available Voltage: 220 VAC, 230 VAC, 240 VAC, 440 VAC, 460 VAC, 480 VAC
• Frequency: 50/60 Hz
• Type: Control Transformer
• Configuration: Encapsulated
• Termination: screw
• Standards: cULus, CE, CSA/CE Marking|UL Listed|cULus Listed|RoHS Compliant
• UNSPSC: 39121026
• Replaced Catalog Number: PT250MQMJ-FK
• Application: Industrial, Automation, Panel Shops, Machines, Panel Boards, Solenoids, Control and Timer Applications
