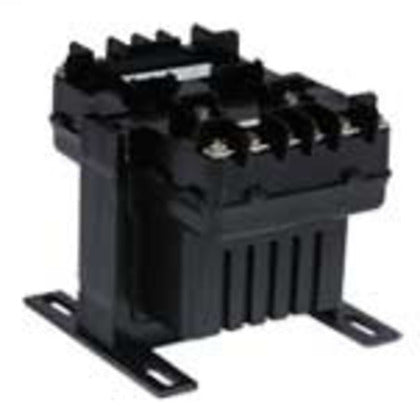

Hammond Power PH150MQMJ-FK cntl 150VA control transformer

Product Description

The Hammond Power PH150MQMJ-FK is designed for industrial control applications. This HPS Imperator series transformer features a unique terminal block for quick installation of secondary or optional primary 13/32" x 1 1/2" midget/type CC fuse clips. Windings and internal terminations are encapsulated for protection against contaminants.

• 600V Class, Machine Tool Rated Industrial Control Transformers
• Constructed with High Quality Silicon Steel Laminations That Provide Optimum Performance and Reliability
• Encapsulated Coils Encased in a Custom Injection Molded Cover, Protect Coils and Terminations from Moisture, Dirt and Other Industrial Airborne Contaminants

Product Highlights

The Hammond Power PH150MQMJ-FK transformer offers a compact design with superior cooling properties and a clean look.

Product Information

Standard Information

• Brand: Hammond Power
• Manufacturer Part Number: PH150MQMJ-FK

Technical Specifications

• Manufacturer Part Number: PH150MQMJ-FK
• Manufacturer: Hammond Power Solutions
• Operating Temperature: 55 00b0C
• Series: Power PH Series
• Needed Voltage: 110 VAC, 115 VAC, 120 VAC, 220 VAC, 230 VAC, 240 VAC
• Mounting Type: Panel Mount
• Secondary Voltage: 120 (115, 110)/240 (230, 220) VAC
• Primary Type: Industrial Transformer
• Primary Voltage: 240 (230, 220)/480 (460, 440) VAC
• Power Rating: 150 VA
• Secondary Current: 1.28/0.63 A
• Phase: 1 Phase
• Available Voltage: 220 VAC, 230 VAC, 240 VAC, 440 VAC, 460 VAC, 480 VAC
• Frequency: 50/60 Hz
• Type: Control Transformer
• Configuration: Encapsulated
• Termination: screw
• Standards: cULus, CE
• Approval: UL 506, UL (Canada and US), CE
• Terminal Type: Screw
• Frequency Rating: 50/60 Hertz
• Insulation Class: 105
• Temperature Rise: 55 Deg C
