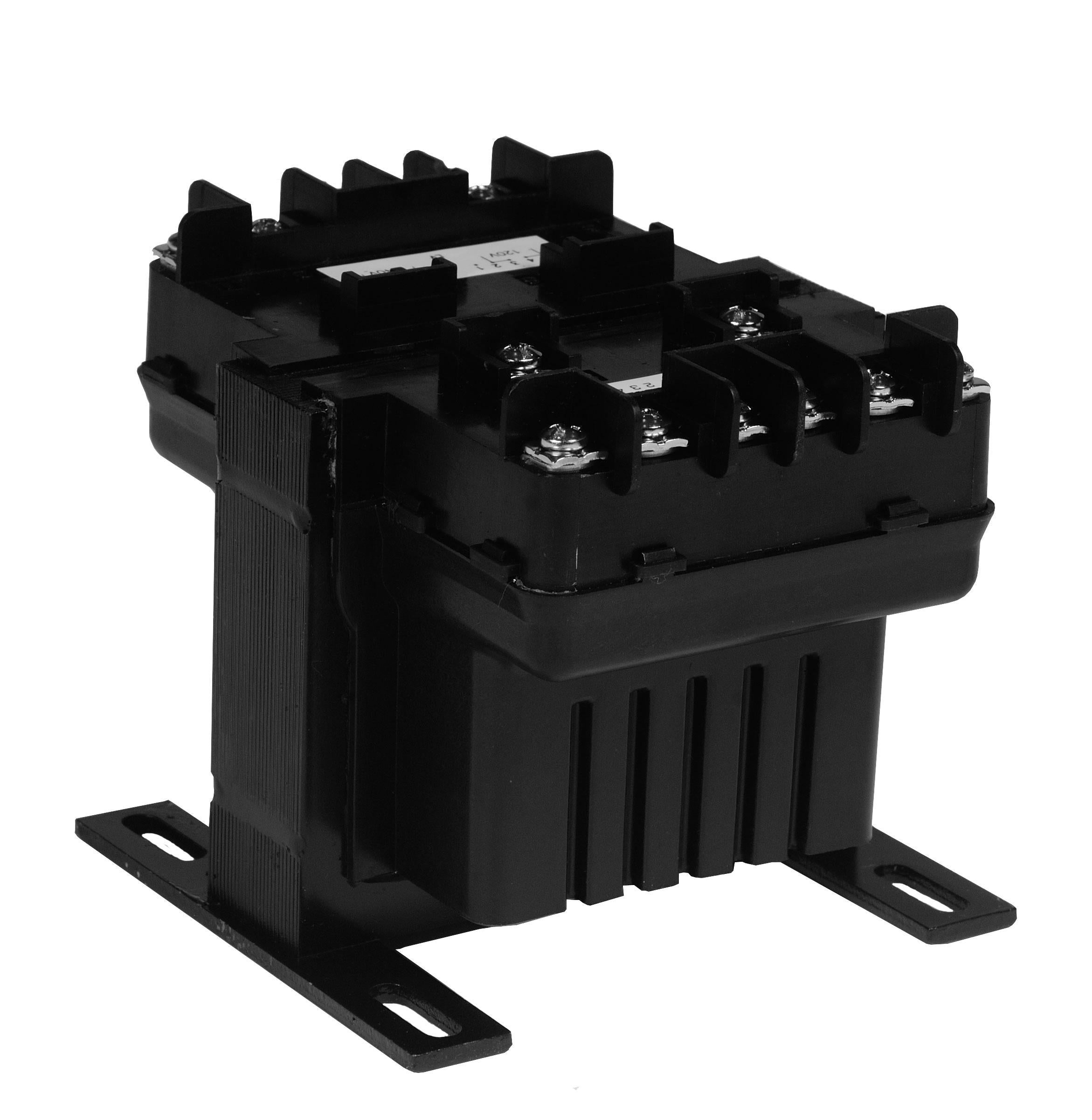

Hammond Power PH1000MQMJ Control Transformer 1000 VA

Product Description

The Hammond Power PH1000MQMJ is an industrial molded open style control transformer with a 240/480 VAC primary and 120/240 VAC secondary. It features high-quality silicon steel laminations for optimum performance and encapsulated coils encased in a custom injection molded cover, protecting them from contaminants. This transformer is rated at 1000 VA with a frequency of 50/60 Hz and is designed for panel mounting.

• Constructed with high quality silicon steel laminations for optimal performance.
• Encapsulated coils protect against moisture and contaminants.
• Heavy steel mounting feet provide superior strength.

Product Highlights

The Hammond Power PH1000MQMJ is ideal for automation, panel shops, machines, panel boards, solenoids, and control and timer applications.

Product Information

Standard Information

• Brand: Hammond Power
• Manufacturer Part Number: PH1000MQMJ

Technical Specifications

• Brand: Hammond Power Solutions
• Part Number #: PH1000MQMJ
• SKU #: 2176218
• Maximum Amperage Rating: 8.33/4.17, 8.33/4.17 A
• Type: Industrial Molded Open Style
• UNSPSC: 39121026
• Manufacturer: Hammond Power Solutions
• Frequency: 50/60 Hz
• Manufacturer Part Number: PH1000MQMJ
• Mounting Type: Panel Mount
• Operating Temperature: 80 °C
• Phase: 1 Phase
• Power Rating: 1 kVA
• Primary Type: Industrial Transformer
• Primary Voltage: 240 (230, 220)/480 (460, 440) VAC
• Secondary Current: 8.33/4.17 A
• Secondary Voltage: 120 (115, 110)/240 (230, 220) VAC
• Series: Power PH Series
• Standards: cULus, CE
• Termination: screw
• Configuration: Encapsulated
