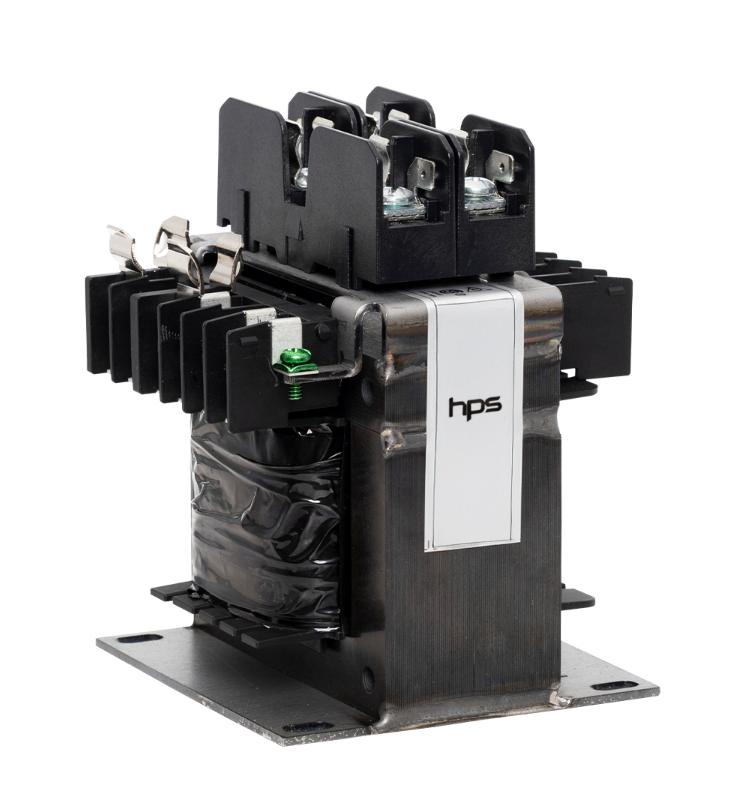

Hammond Power C2G1500MQMJ Control Transformer 1500VA REPLACEMENT SP1500MQMJ

Product Description

The Hammond Power C2G1500MQMJ control transformers provide reliable low voltage power for control circuits in industrial machinery, HVAC systems, and automation panels. Engineered to handle the high inrush current of contactors and solenoids while maintaining stable secondary voltage. They are well suited for general purpose control circuits, HVAC equipment, lighting control, and alarm or signal circuits.

• Compact core and coil design fits into shallow control panels.
• Wide selection of VA ratings to match small control loads or larger multi circuit panels.
• Multiple primary tap arrangements allow use on different line voltages without extra hardware.

Product Highlights

Open core control transformers offer a compact and flexible solution for OEM machinery builders and panel designers. Suitable for indoor environments with normal levels of dust and humidity.

Product Information

Standard Information

• Brand: Hammond Power
• Manufacturer Part Number: C2G1500MQMJ

Technical Specifications

• Alternate Part Number: This Item Replaced SP1500MQMJ (See Specs)
• Series: Control Transformer (Open)
• Primary Voltage: 240x480V
• Secondary/Output Voltage: 120x240V
• VA: 1500VA
• Phase: Single Phase
• Type of Transformer: Control Power

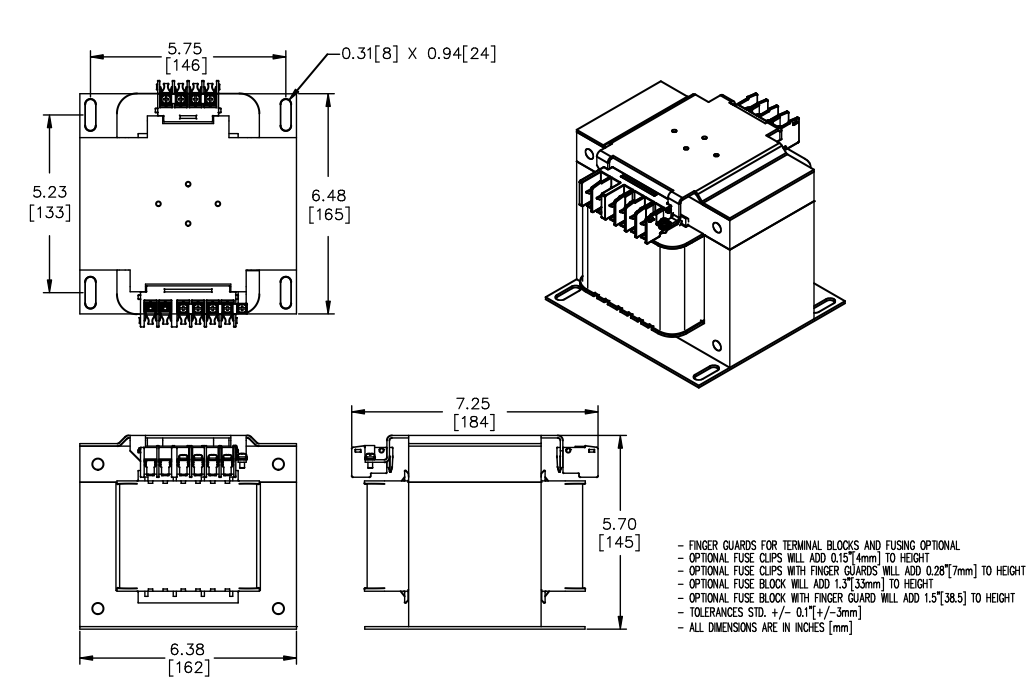

• Width: 10.8"
• Length/Depth: 8.0"
• Height: 12.7"
• Brand: Hammond Power Solutions
• Manufacturer Part Number: C2G1500MQMJ
• Enclosure Type: Open
• Frequency Rating: 50/60 Hz
• Insulation: 130 deg C
• Maximum Amperage Rating: 12.50/6.25 A
• Temperature Rating (Degrees F): 80 deg C
• Connection type: Terminal Block
• Housing material: Copper
• Mounting type: Panel
• Manufacturer Name: Hammond Power Solutions
• MODEL: C2G1500MQMJ
