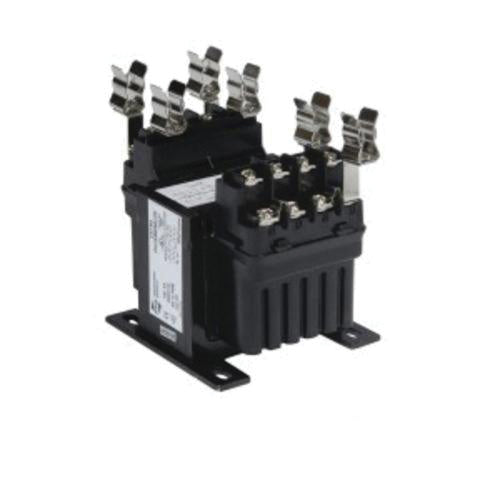

Hammond PH500MQMJ 500 VA 240 x 480 Volt Primary 120 x 240 Volt Secondary Control Transformer

Product Description

The Hammond Power Solutions PH500MQMJ is a 500 VA control transformer designed for industrial applications. It operates with a primary voltage range of two hundred forty to four hundred eighty volts and a secondary voltage range of one hundred twenty to two hundred forty volts. This transformer is suitable for high inrush applications like relays and solenoids.

• Type: Dry, Core and Coil
• Power Rating: 500 Watts
• Temperature Rating: 40 degrees C

Product Highlights

Reliable performance for electromagnet applications in various industrial setups.

Product Information

Standard Information

• Brand: Hammond Power Solutions
• Manufacturer: Hammond Transformers

Technical Specifications

• Primary Voltage: 240-480 V
• Secondary Voltage: 120-240 V
• Frequency: 50 Hz
• Width: 5.94 inches
• Height: 4.31 inches
• Length: 4.75 inches
• Wattage: 500 W
• Mounting Type: Panel
• Applications: Automation, Panel shops, Solenoids, Control Applications
