Hammond PH250MQMJ cntl 250va240x480-120x240

Product Description

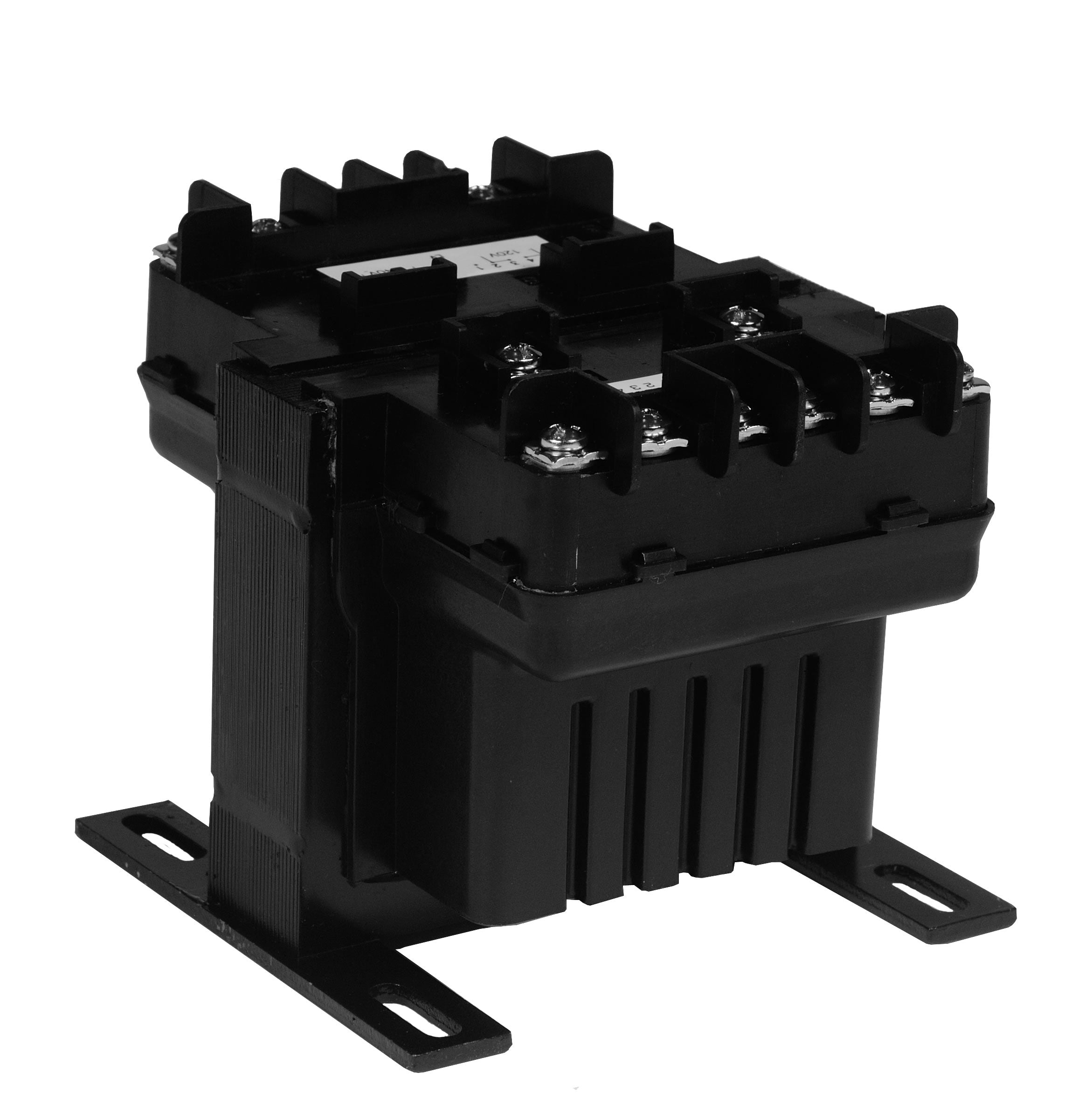

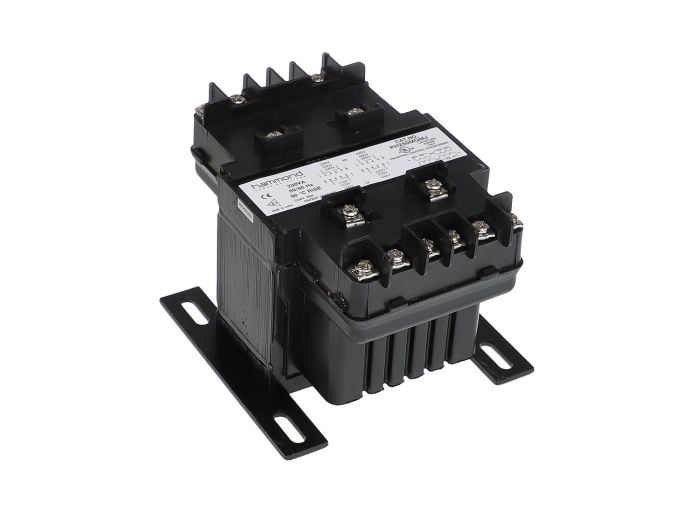

The Hammond PH250MQMJ is a machine tool rated molded industrial control transformer with 240x480 PV and 120x240 SV, operating at 250VA. It is designed for high inrush applications, powering coils and features options for a finger-safe cover and an innovative fuse holder system. This transformer is suitable for automation, panel shops, machines, solenoids, control applications, and timers.

• Machine Tool Rated
• Molded Industrial Control Transformer
• Potted control transformer for high inrush applications powering coils

Product Highlights

Ideal for industrial control applications, the Hammond PH250MQMJ ensures reliable performance with its robust design and safety features.

Product Information

Standard Information

• Brand: HAMMOND
• Manufacturer Part Number: PH250MQMJ
• Country of Origin: Vietnam

Technical Specifications

• MPN: PH250MQMJ
• Brand: Hammond
• Type: Control Transformer
• Width: 4.5 in
• Height: 3.81 in
• Wattage: 250
• Mounting: Panel
• Standard: CSA, UL, CE
• Enclosure: Core and Coil
• Sub Brand: Machine Tool Industrial Control Transformer
• Application: Automation, Panel shops, Machines, Solenoids, Control Applications, Timers
• Product Name: Industrial Control Transformer
• Frequency: 50/60 Hz
• Manufacturer Part Number: PH250MQMJ
• Phase: 1 Phase
• Power Rating: 250 VA
• Primary Type: Industrial Transformer
• Primary Voltage: 220 V, 230 V, 240 V, 440 V, 460 V, 480 V
• Secondary Current: 2.08/1.04 A
• Secondary Voltage: 110 V, 115 V, 120 V, 220 V, 230 V, 240 V
• Series: Power PH Series
• Standards: cULus, CE
• Termination: screw
• Power: 250 W
• VA Rating: 250 VA
• Enclosed: No
• Primary Fuseholder: Optional
• Secondary Fuseholder: Included
• Cover Included: Optional
• Insulation Class: Class B
• Approvals: CE, UL
• Comments: Secondary fuse clips included. Fuses, primary fuse kits, and touch safe covers sold separately.
• Manufacturer: Hammond Power Solutions
• Product Series: HPS Imperator
