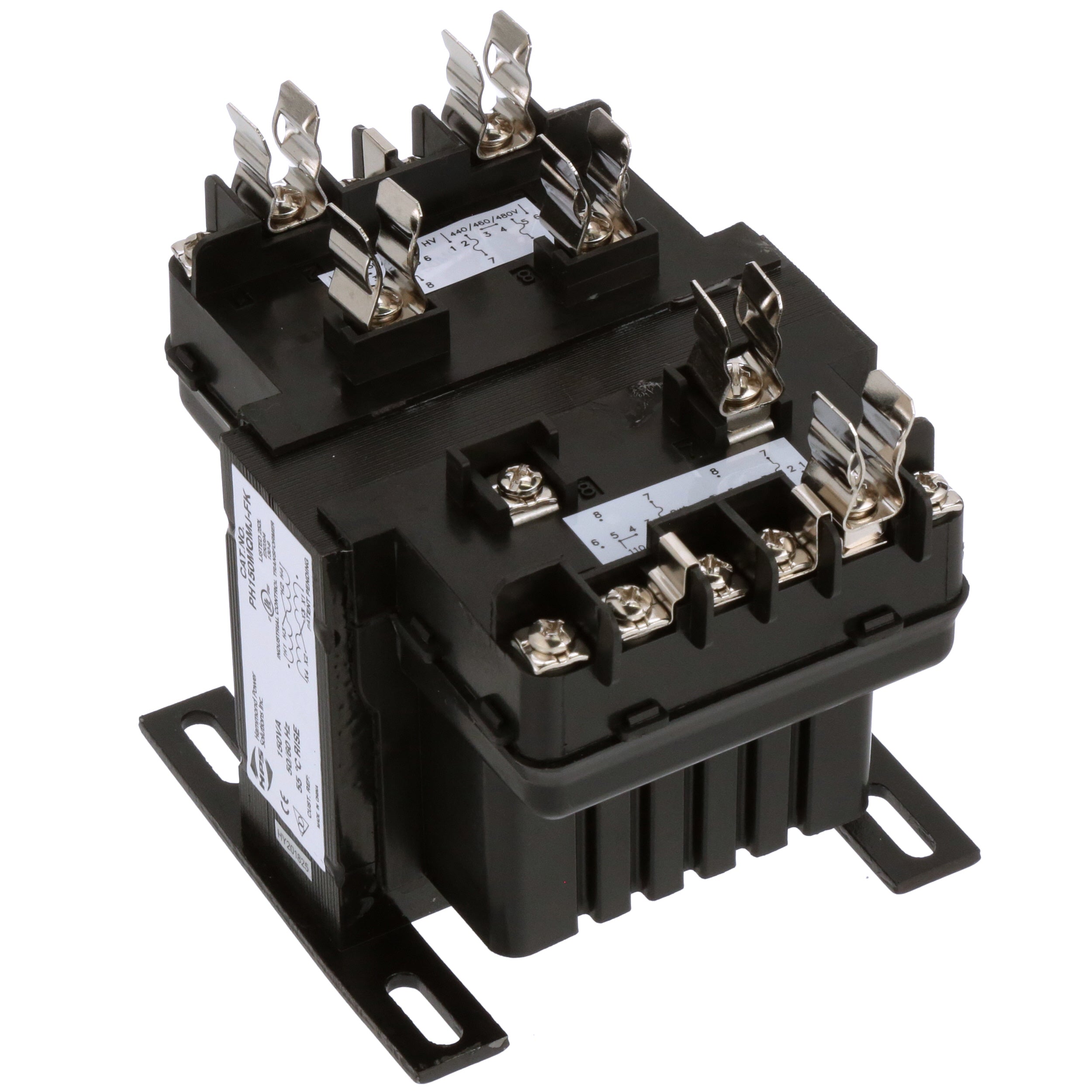

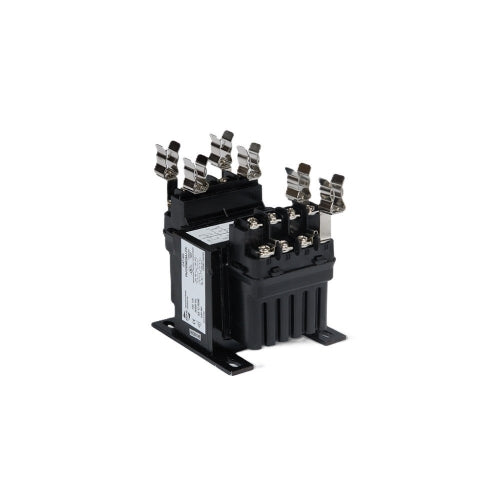

Hammond PH150MQMJ-FK Control Transformer 150 VA (240x480-120x240)

Product Description

The Hammond PH150MQMJ-FK is a 150 VA Imperator series control transformer designed for industrial control applications. It accepts primary voltage groups 240 x 480 VAC, 230 x 460 VAC, and 220 x 440 VAC and provides secondary groups 120 x 240 VAC, 115 x 230 VAC, and 110 x 220 VAC with output currents of 1.25 A and 0.63 A. The encapsulated unit operates at 50/60 Hz, uses screw terminals, includes primary and secondary fuse kits, and meets UL 506, CE, IEC 61558 and RoHS requirements.

• Power rating: 150 VA, single-phase; frequency 50/60 Hz
• Primary voltages: 240 x 480 / 230 x 460 / 220 x 440 VAC; Secondary voltages: 120 x 240 / 115 x 230 / 110 x 220 VAC; output 1.25 A / 0.63 A
• Encapsulated construction with screw terminal termination, includes primary and secondary fuse kit; slot mounting and heavy steel mounting feet

Product Highlights

150 VA encapsulated control transformer with multi-tap primaries and secondaries, factory fuse kit, screw terminals, and machine-tool rating for high inrush applications.

Product Information

Standard Information

• Brand: HAMMOND
• Manufacturer Part Number: PH150MQMJ-FK
• Country of Origin: United States

Technical Specifications

• Brand: Hammond
• Manufacturer Part Number: PH150MQMJ-FK
• Series: Imperator
• Power Rating (VA): 150 VA
• Phase: 1 Phase
• Primary Voltage: 240 x 480 VAC; 230 x 460 VAC; 220 x 440 VAC
• Secondary Voltage: 120 x 240 VAC; 115 x 230 VAC; 110 x 220 VAC
• Output Current: 1.25 A / 0.63 A
• Frequency: 50/60 Hz
• Configuration: Encapsulated
• Terminal Type: Screw terminal (combination slot/Phillips #6 with SEMS washer where applicable)
• Insulation Class: 105 °C
• Temperature Rise: 55 °C
• Mounting: Slot mounting (0.75 in length x 0.22 in width) with heavy steel mounting feet
• Dimensions: 4.00 in (W) x 4.94 in (D) x 3.81 in (H)
• Weight: 5.70 lb
• Includes: Primary and secondary fuse kit
• Optional Primary Fuse Kit: PFK2
• Approvals / Standards: UL 506 (Canada and US), CE, ANSI 506, IEC 61558, NEMA ST-1, cULus where applicable
• RoHS: Compliant
• Class Rating: 600V class (industrial control transformer)
• Construction Materials: Copper windings; silicon steel laminations
• Termination Details: Combination slot/Phillips #6 screw with SEMS washer (suitable for 18 AWG to 14 AWG)
