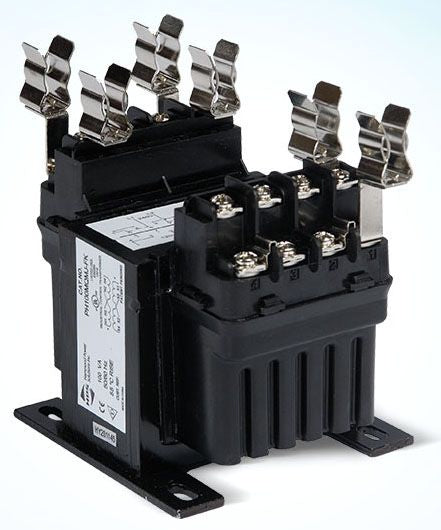

Hammond PH100PG-FK Control Transformer 100VA

Product Description

The HAMMOND PH100PG-FK is a 100 VA control transformer designed to step down line voltage to a lower control-circuit voltage in HVAC, industrial, and commercial electrical systems. Control transformers isolate and power low-voltage control circuits, protecting sensitive components such as thermostats, relays, and contactors from line-side disturbances. At 100 VA, this unit handles moderate control-circuit loads typical in rooftop units, air handlers, and packaged equipment. Installation is performed by licensed electricians or HVAC technicians working on control panel wiring and low-voltage circuit design.

The PH100PG-FK is suited for use in residential and light commercial HVAC control panels, motor control centers, and general industrial control enclosures where a reliable step-down transformer is required to power 24-volt or similarly rated control circuits. It is appropriate for new installations and direct replacement applications where a 100 VA footprint is required.

Key Features

• 100 VA capacity supports moderate control-circuit loads in HVAC and industrial applications
• Designed for isolation and voltage step-down in low-voltage control circuits
• Suitable for use in control panels, air handlers, and packaged HVAC equipment
• OEM-style replacement form factor for straightforward serviceability

Compatibility

Designed as an OEM-style replacement control transformer for HVAC and industrial control panel applications requiring 100 VA capacity.

Installation Notes

Installation should be performed by a licensed electrician or qualified HVAC technician in accordance with NEC requirements. Disconnect and lock out all power to the control panel before removing the existing transformer or making any wiring connections. Verify that the primary and secondary voltage ratings of this transformer match the existing circuit requirements before energizing. Do not exceed the 100 VA nameplate rating to avoid overheating or premature failure.

Technical Specifications

• Apparent Power: 100 VA
• UPC: 80342308180

Standard Information

• Brand: HAMMOND
• Manufacturer Part Number: PH100PG-FK
