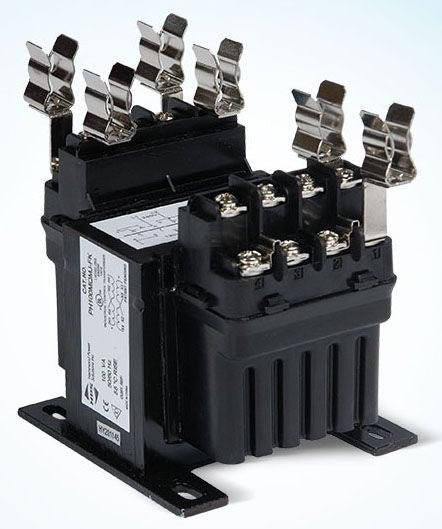

Hammond PH100MGJ Control Transformer 100VA

Product Description

The HAMMOND PH100MGJ is a 100 VA control transformer designed to step down line voltage to a lower control-circuit voltage in HVAC, industrial, and commercial electrical systems. Control transformers of this type isolate the control circuit from the power circuit, providing stable low-voltage power to contactors, relays, solenoids, and similar control loads. At 100 VA, this unit handles moderate control-circuit demands and is suitable for both new installations and direct replacements. Licensed electricians and HVAC technicians are the primary installers for this class of component.

This transformer is suited for use in residential and light commercial HVAC systems, motor control panels, and general-purpose control circuits where a reliable, isolated control voltage is required. It is commonly installed in air handling units, packaged rooftop equipment, and control panels where low-voltage circuit isolation is necessary. No specific compatible model numbers or replacement part numbers were provided in the product data.

Key Features

• 100 VA capacity supports a range of control-circuit loads including contactors and relays
• Isolated control circuit design protects downstream components from line-side disturbances
• Compact form factor suitable for panel and equipment enclosure mounting
• UPC verified unit for straightforward procurement and inventory tracking

Compatibility

Designed as an OEM-style replacement for 100 VA control transformers used in residential and light commercial HVAC and electrical control panel applications.

Installation Notes

Installation should be performed by a licensed electrician or qualified HVAC technician in accordance with the NEC and applicable local codes. De-energize and lock out the equipment at the main disconnect before removing the existing transformer or making any wiring connections. Verify that the primary and secondary voltage ratings of the replacement transformer match the existing circuit requirements before energizing. Ensure all connections are secure and the unit is properly mounted before restoring power.

Technical Specifications

• Capacity: 100 VA
• Weight: 5.2 pounds
• UPC: 80342307853

Standard Information

• Brand: HAMMOND
• Manufacturer Part Number: PH100MGJ
