Hammond EN4SD243010GY Eclipse enclosure 24 x 30 x 10

Brand: HAMMOND
SKU: EN4SD243010GY
Availability: In Stock

Ships via freight in 1-3 business days
$523.79
$523.79
LTL Delivery

This product weighs 53 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

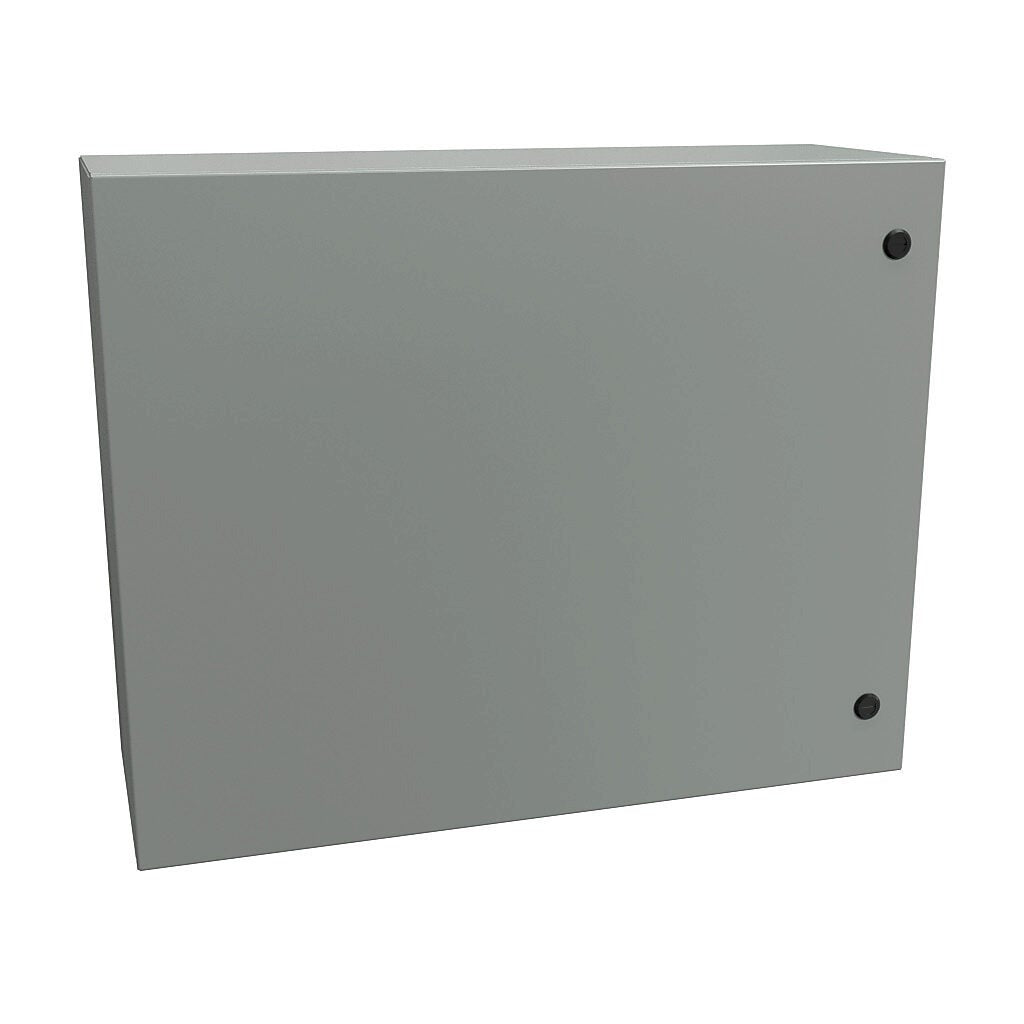

Hammond EN4SD243010GY is an Eclipse series Type 4 mild steel wall-mount enclosure that protects electrical and control equipment in harsh industrial environments. The enclosure measures 24 in H x 30 in W x 10 in D and provides NEMA 3R/4/12 and IP66 protection. It includes a single hinged door with concealed 304 stainless steel hinges and stainless hinge pins, quarter-turn latches, a poured-in-place oil-resistant gasket, and collar studs for inner panel mounting.

  • Type 4/12 and NEMA 3R rated mild steel wall-mount enclosure with IP66 protection
  • Single hinged door with concealed 304 stainless steel hinges, stainless hinge pins, and quarter-turn latches
  • Poured-in-place oil-resistant gasket, door stiffeners for rigidity, collar studs for inner panel mounting, phosphatized and recoatable powder interior finish

Product Highlights

24 x 30 x 10 in mild steel wall-mount enclosure, NEMA 3R/4/12 and IP66, UL and CSA listed, removable/interchangeable door

Product Information

Standard Information

  • Brand: HAMMOND
  • Manufacturer Part Number: EN4SD243010GY
  • Country of Origin: Canada
Technical Specifications
Brand
Hammond
Manufacturer Part Number
EN4SD243010GY
Series
Eclipse (EN4SD Series)
Product Type
Wall-mount electrical enclosure
Material
Mild steel / carbon steel
Fabrication Gauge
14 or 16 gauge steel
Dimensions (H x W x D)
24 in x 30 in x 10 in
Dimensions (metric H x W x D)
610 mm x 762 mm x 254 mm
NEMA Rating
NEMA 3R, 4, 12
IP Rating
IP66
Standards / Certifications
UL, CSA, CE
UL File Number
E65324
CSA Certification Number
LR21001
UL Standard Compliance
UL 508A (Type 3R, 4, 12)
IEC Compliance
IEC 60529 IP66
Finish
Phosphatized and recoatable powder coat interior; ANSI 61 gray powder coat exterior
Mounting Type
Wall mount
Cover Type
Single-door
Number of Doors
1
Hinge Type
Concealed hinges
Hinge Material
304 stainless steel; stainless steel hinge pins
Number of Hinges Per Door
2
Latch Type
Quarter-turn / 1/4-turn semi-flush latch
Number Of Latches
2
Gasket Type
Seamless poured-in-place oil-resistant gasket
Door Features
Removable and interchangeable doors; door stiffeners for rigidity
Inner Panel
Not included; collar studs provided for inner panel mounting
Includes
Enclosure; hardware kit (panel mounting nuts and sealing washers) as listed
RoHS Compliant
Yes
REACH Compliant
Yes
SVHC
No SVHC (04-Feb-2026)
Country of Origin
Canada
Net Weight
53 lbs (24 kg)
