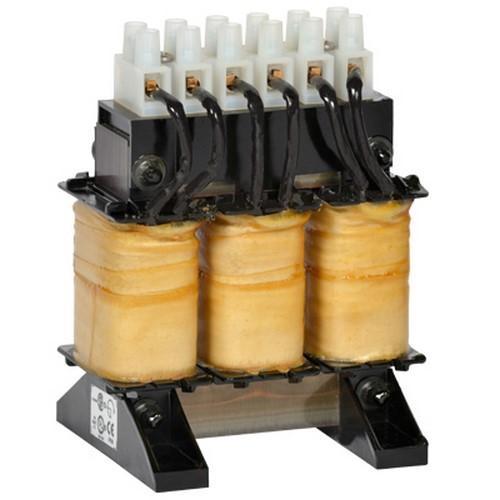

HAMMOND CRX07D6AC Line Reactor 480 VAC 7.6 A 5 hp

Product Description

The HAMMOND CRX07D6AC Line Reactor is designed for use with three-phase motors and AC drives. Operating at 480 VAC and seven point six amps, this unit effectively reduces harmonics in power systems, enhancing overall performance. It has a five horsepower rating and features a three percent impedance along with a three point zero six millihenry inductance. This reactor meets multiple safety and performance standards, ensuring reliable operation across various applications.

• Operating Voltage: 480 VAC
• Power Rating: 5 hp
• 3% Impedance and 3.06 mH Inductance

Product Highlights

The HAMMOND CRX07D6AC is ideal for managing both line-side and load-side challenges that arise in AC drive applications.

Product Information

Standard Information

• Brand: HAMMOND
• MPN: CRX07D6AC

Technical Specifications

• Input Voltage: 480 VAC
• Output Current: 7.6 A
• Horsepower: 5 hp
• Frequency: 60 Hz
• Impedance: 3%
• Inductance: 3.06 mH
• Power Loss: 31 Watts
• Enclosure: Core and Coil
• Mounting Type: Floor/Panel
• Height: 5.13 inches
• Width: 4.13 inches
• Depth: 3.51 inches
• Inductance Tolerance: +15/-10%
• Dielectric Strength: 4000 volts for 1 minute
• Cooling Method: Natural Convection
• Insulation Class: 70 deg. C rise for average 50 deg. C ambient
• Compliance & Approvals: UL 508, CSA C9, CE Mark
• Material: Iron
• Frame Size: 1B
• Warranty: 10 Years
