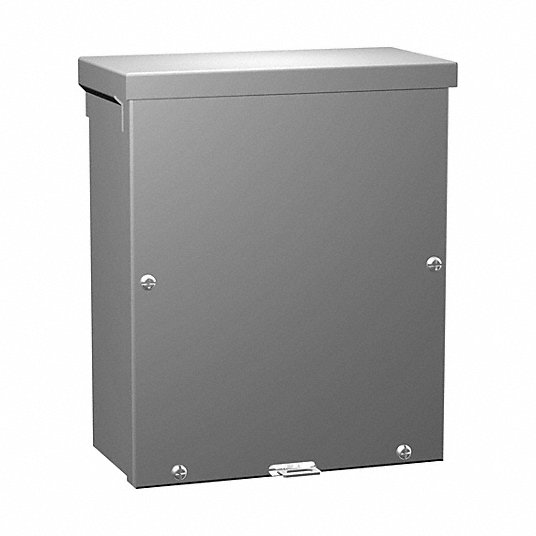

Hammond C3R363612SC Type 3R Screw Cover 36 x 36 x 12

Product Description

The Hammond C3R363612SC is a Type 3R screw cover, designed for use as a wiring or junction box. It protects against rain, sleet, snow, and dripping water. Formed and spot welded from 16-gauge galvanized steel, it features a drip-shield top and seam-free sides. The enclosure and cover have an ANSI 61 gray powder coating.

• Protects against rain, sleet, snow, and dripping water
• Formed and spot welded from 16-gauge galvanized steel
• Complies with NEMA Type 3R and IEC 60529, IP24 ratings

Product Highlights

This steel weather-resistant enclosure with screw-on covers is durable, corrosion-resistant, and withstands moisture and damage.

Product Information

Standard Information

• Brand: Hammond
• Manufacturer Part Number: C3R363612SC
• Country of Origin: Canada

Technical Specifications

• Part Number: C3R363612SC
• Series: Type 3R Painted Galvanized Steel Junction Box (C3R SC Series)
• Short Description: 3R SCREW COV 36X36X12
• Long Description: Type 3R Screw Cover - 36 x 36 x 12 - Galv/Gray
• Size H x W x D: 36 in x 36 in x 12 in (914 mm x 914 mm x 305 mm)
• UNSPSC: 39121324
• UPC: 623980361789
• UL File #: E65324
• CSA Cert. #: LL21312
• REACH Compliant: Yes
• RoHS Compliant: Yes
• Packaging Type: Box
• Category: Boxes, Enclosures, Racks
• Boxes: Boxes
• Design: Cover Included
• Mfr: Hammond Manufacturing
• Material: Metal, Steel
• Color: Gray
• Packaging: Bulk
• Features: Handle, Knockouts, Lockable, Wall Mount
• Part Status: Active
• Ratings: IP24, NEMA 3R, UL-50
• Container Type: Box
• Size / Dimension: 36.000" L x 36.000" W (914.40mm x 914.40mm)
• Height: 12.000" (304.80mm)
• Base Product Number: C3R363612
• Area (L x W): 1296in (8361cm )
• Brand: HAMMOND
• Manufacturer Part Number: C3R363612SC
• Knockouts: Included
• Body Material Thickness: 16
• Closure Method: Screws
• Cover Closure Type: Screw
• Cover Style: Solid
• Displayed Brand: HAMMOND
• Enclosure Material: Galvanized Steel
• Finish: ANSI 61 Powder Coated
• Includes: Padlocking Hasp; Screws
• NEMA Enclosure Rating: 3R
• Nominal Depth: 12 in
• Nominal Height: 36 in
• Nominal Width: 36 in
• Overall Depth: 12 in
• Overall Height: 36 in
• Overall Width: 36 in
• Product Type: Junction Box
• Standards: CSA Type 3R; IEC 60529; RoHS Compliant; UL-50 Type 3R
• Usable Opening Depth: 12 in
