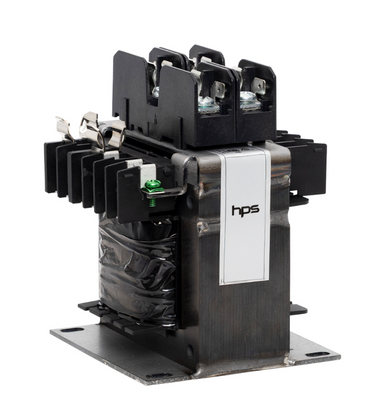

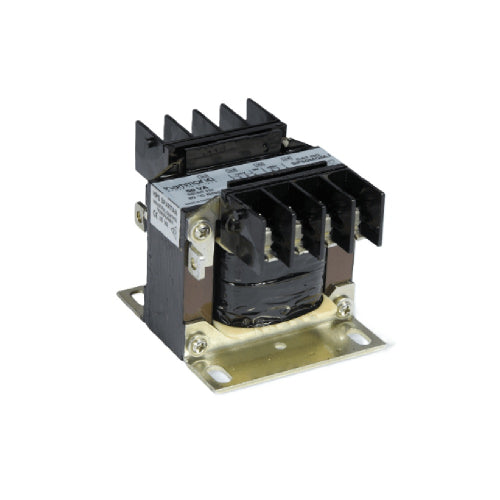

Hammond C2G5000MQMJ Control Transformer Open 5000 VA (Single Phase 240 x 480 V - 120 x 240 V) Replaces SP5000MQMJ

Product Description

Hammond C2G5000MQMJ is an open-style control transformer rated 5000 VA with primary taps at 240 x 480 V and secondary 120 x 240 V for 50/60 Hz operation. It supplies stable low-voltage control power for industrial machinery, motor control centers, HVAC systems, and automation panels. The design accommodates high inrush currents from contactors and solenoids and offers an open core construction for mounting in shallow control enclosures.

• 5000 VA single-phase rating; primary 240 x 480 V, secondary 120 x 240 V, 50/60 Hz.
• Copper-wound coils with insulation class 180 °C and vacuum-impregnated construction for improved thermal performance.
• Open core compact design with terminal block connections, panel mounting, and optional fuse blocks or finger-safe terminal covers.

Product Highlights

Open-style 5000 VA control transformer; 240 x 480 V primary, 120 x 240 V secondary; CSA/UL/CE and RoHS certified; replaces SP5000MQMJ.

Product Information

Standard Information

• Brand: HAMMOND
• Manufacturer Part Number: C2G5000MQMJ

Technical Specifications

• Brand: Hammond
• MPN: C2G5000MQMJ
• Alternate Part Number: SP5000MQMJ
• Series: Control Transformer (Open)
• Type: Control Power Transformer
• Power (VA): 5000 VA
• Phase: Single phase
• Primary Voltage: 240 x 480 V
• Secondary Voltage: 120 x 240 V
• Frequency: 50/60 Hz
• Insulation Class: 180 °C
• Certifications: CSA, UL, CE, RoHS
• Coil/Winding: Copper-wound coils
• Enclosure: Open enclosure (open core)
• Connection: Terminal block
• Mounting: Panel mounting
• Maximum Amperage Rating: 41.67 / 20.83 A
• Construction: Silicon steel laminations; welded core and base; vacuum-impregnated coils
• UPC: 803423214562
• Weight: 104.6 lb
