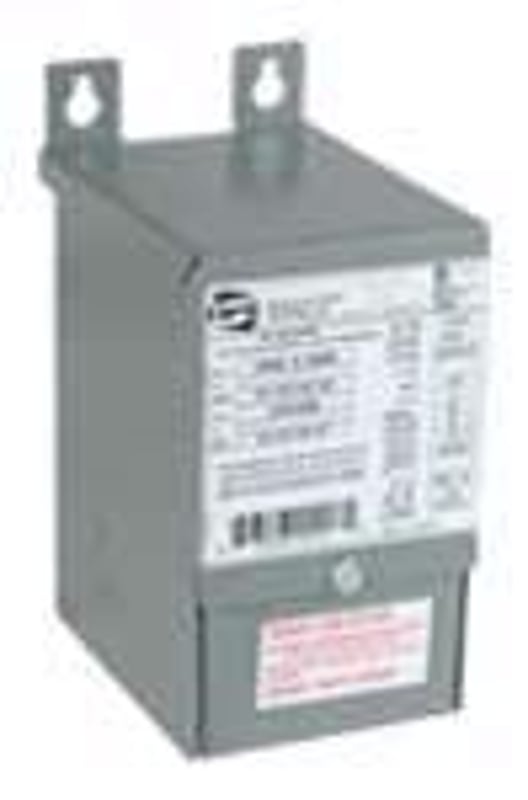

Hammond C1FC75LES POTTED 1PH 750VA240x480-120/240

Product Description

The Hammond C1FC75LES is a potted single-phase distribution transformer with a 750VA capacity and 240x480-120/240 voltage configuration. It features an innovative potted design that provides single-screw access on a hinged cover to the wiring compartment for commercial indoor and outdoor applications. This transformer is suitable for shopping centers, schools, and light industrial loads.

• 600V Class Commercial Potted Single Phase Distribution Transformer
• 240x480 PV, 120/240 SV
• Innovative potted design provides single screw access on a hinged cover

Product Highlights

Encapsulated to seal out moisture and airborne contaminants. Easy to install with keyhole mounting slots and supplied wall mounting template.

Product Information

Standard Information

• Brand: HAMMOND
• Manufacturer Part Number: C1FC75LES
• Country of Origin: CA|MX

Technical Specifications

• MPN: C1FC75LES
• Brand: Hammond
• Type: Transformer > Distribution > Potted > Commercial > Single Phase
• Phase: 1 Phase
• Width: 5 IN
• Height: 9.25 in
• Wattage: 0.75 kVA
• Winding: Aluminum Wound
• Mounting: Wall Mount
• Standard: CSA, UL
• Enclosure: NQ2-N3R - Indoor or Outdoor
• Sub Brand: Commercial Potted Transformer
• Application: Shopping centers, schools, sports complexes, commercial, lighting, wastewater and light industrial loads.
• Frequency Rating: 60 Hz
• Special Features: Innovative potted design provides single screw access on a hinged cover to the wiring compartment for commercial indoor and outdoor applications
• Stripped Catalog Number: C1FC75LES
• Catalog Description (MFR): 600V Class Commercial Potted Single Phase Distribution Transformer, 240x480 PV, 120/240 SV, 0.75 kVA
• Invoice Description (MFR): POTT 1PH 240x480 PV 120/240 SV 0.75kVA
• Input Voltage: 240X480 V AC
• Output Voltage: 120/240 V AC
• Series: Fortress
• Connection type: Lead Wire/Tab
• Manufacturer Name: Hammond Power Solutions
• Enclosure Type: NEMA 3R Style
• Power Rating: 750 VA
• Primary Type: Industrial Transformer
• Termination: Lead Wires
• Construction: Electrostatically Shielded
• Winding Type: Copper
• Temperature Rise: 80 Deg C
• Approval: UL, CSA
• Length: 4-3/4 Inch
• Product UPC: 80342309071
