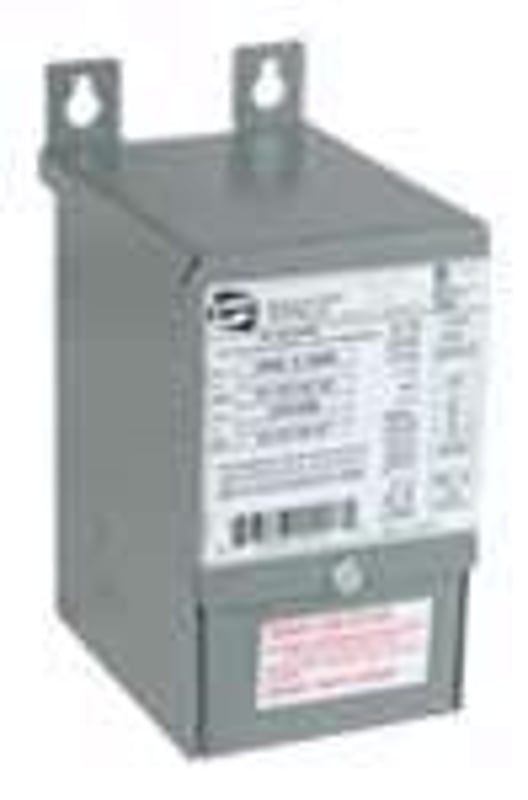

Hammond C1FC50LE POTTED 1PH 500VA240x480-120/240

Product Description

The Hammond C1FC50LE is a potted single-phase distribution transformer. This 500VA transformer is designed for 240x480 primary voltage and 120/240 secondary voltage. It is ideal for commercial applications where quality, ease of installation, and low cost are key.

• 600V Class
• Commercial Potted
• Single Phase Distribution Transformer

Product Highlights

Encapsulated with electrical grade silica sand and resin compounds, which completely enclose the core and coil to seal out moisture, airborne contaminants and eliminates corrosion and deterioration.

Product Information

Standard Information

• Brand: HAMMOND
• Manufacturer Part Number: C1FC50LE
• Country of Origin: CA|MX

Technical Specifications

• Brand: Hammond
• MPN: C1FC50LE
• Phase: 1 Phase
• Width: 4.5 in
• Height: 7.25 in
• Wattage: 0.5 kVA
• Winding: Aluminum Wound
• Mounting: Wall Mount
• Standard: CSA, UL
• Enclosure: NQ1-N3R - Indoor or Outdoor
• Sub Brand: Commercial Potted Transformer
• Product Name: Commercial Encapsulated Transformer
• Input Voltage: 240X480 V
• Output Voltage: 120/240 V
• Frequency Rating: 60 Hz
• Special Features: Innovative potted design provides single screw access on a hinged cover to the wiring compartment for commercial indoor and outdoor applications
• Stripped Catalog Number: C1FC50LE
• Catalog Description (MFR): 600V Class Commercial Potted Single Phase Distribution Transformer, 240x480 PV, 120/240 SV, 0.50 kVA
• Invoice Description (MFR): POTT 1PH 240x480 PV 120/240 SV 0.50kVA
• Application: Shopping centers, schools, sports complexes, commercial, lighting, wastewater and light industrial loads.
• Series: Fortress
• Connection type: Lead Wire/Tab
• Power Rating: 500 VA
• Primary Type: Industrial Transformer
• Secondary Voltage: 120 V, 240 V
• Primary Voltage: 240 V, 480 V
• Enclosed: Yes
• Type: Distribution Transformer
• Turns Ratio: 1:20
• Secondary Voltage Rating (AC): 240 V
• Primary Voltage Rating (AC): 120/240 V
• Enclosure Type: NEMA 3R Style
• UNSPSC: 39121027
• Dimensions: 5-3/4 in L x 4-1/2 in W x 7-1/4 in H
• Termination: Lead Wires
