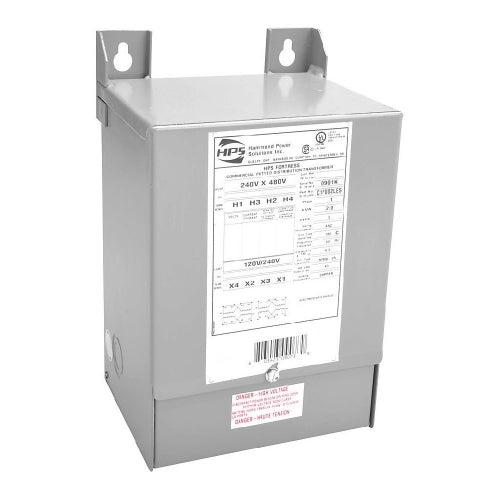

Hammond C1FC15LE Potted 1PH 150VA 240x480-120/240

Product Description

The Hammond C1FC15LE is a potted single-phase distribution transformer rated at 150VA with primary voltage 240x480 and secondary voltage 120/240. It features an innovative potted design with single screw access on a hinged cover for the wiring compartment, suitable for commercial indoor and outdoor applications. It is encapsulated with electrical grade silica sand and resin compounds.

• 600V Class Commercial Potted Single Phase Distribution Transformer
• Innovative potted design
• Suitable for commercial indoor and outdoor applications

Product Highlights

This commercial encapsulated transformer is ideal for shopping centers, schools, sports complexes, and light industrial loads.

Product Information

Standard Information

• Brand: HAMMOND
• Manufacturer Part Number: C1FC15LE

Technical Specifications

• MPN: C1FC15LE
• Brand: Hammond
• Type: Dry Type Transformer
• Phase: 1 Phase
• Width: 3.75 in
• Height: 7.25 in
• Wattage: 0.15 kVA
• Winding: Aluminum Wound
• Mounting: Wall Mount
• Standard: CSA, UL
• Enclosure: NQ0-N3R - Indoor or Outdoor
• Sub Brand: Commercial Potted Transformer
• Application: Shopping centers, schools, sports complexes, commercial, lighting, wastewater and light industrial loads.
• Product Name: Commercial Encapsulated Transformer
• Input Voltage: 240X480
• Output Voltage: 120/240 V
• Frequency Rating: 60
• Special Features: Innovative potted design provides single screw access on a hinged cover to the wiring compartment for commercial indoor and outdoor applications
• Stripped Catalog Number: C1FC15LE
• Catalog Description (MFR): 600V Class Commercial Potted Single Phase Distribution Transformer, 240x480 PV, 120/240 SV, 0.15 kVA
• Invoice Description (MFR): POTT 1PH 240x480 PV 120/240 SV 0.15kVA
• Series: HPS Fortress
• Type of Transformer: Encapsulated
• VA: 150VA
• Frequency: 60 Hz (50/60 Hz on units with 380V primary)
• Insulation System: 180°C (115°C rise) standard on all units, optional 180°C (80°C rise) available
• Encapsulation: All units are encapsulated with electrical grade silica sand and resin compounds
• Enclosure Type: Heavy duty type 3R, optional type 4, 4X (stainless steel) and 12
• Termination: Front accessible separate high and low voltage lead wires or copper tabs
• Conduit Knock-Outs: Standard side and rear knock-outs on all units (no knock-outs on Stainless Steel enclosures)
• Seismic: Seismically certified in accordance with IBC 2009; Section 1613 Earthquake Loads, for SDS <= 2.00g, z/h = 1.0, and IP = 1.5
• Dimensions (WxDxH): 3.75 x 5.25 x 7.25 in
• Volt Amps: 150
• Primary Voltage: 240/480
• Manufacturer Part Number: C1FC15LE
• Manufacturer: Hammond Power Solutions
• Product Series: HPS Fortress
• Family Series: Hammond Power Solutions Transformers, HPS Fortress Series
• Description: HPS Fortress, 150VA, 1PH, NEMA 3R, Pri 240x480, Sec 120/240, 3.75in.Hx7.25in.Wx5.25in.D
• VA Rating: 150 VA
• Secondary Voltage: 120 V, 240 V
• Enclosed: Yes
• Primary Fuseholder: Not Available
• Secondary Fuseholder: Not Available
• NEMA Rating: NEMA 3R
• Insulation Class: Class B
• Temperature Rise (F): 176 °F
• Approvals: CSA, UL
