Hammond C1F1C0LES POTTED 1PH1KVA240X480-120X240

Product Description

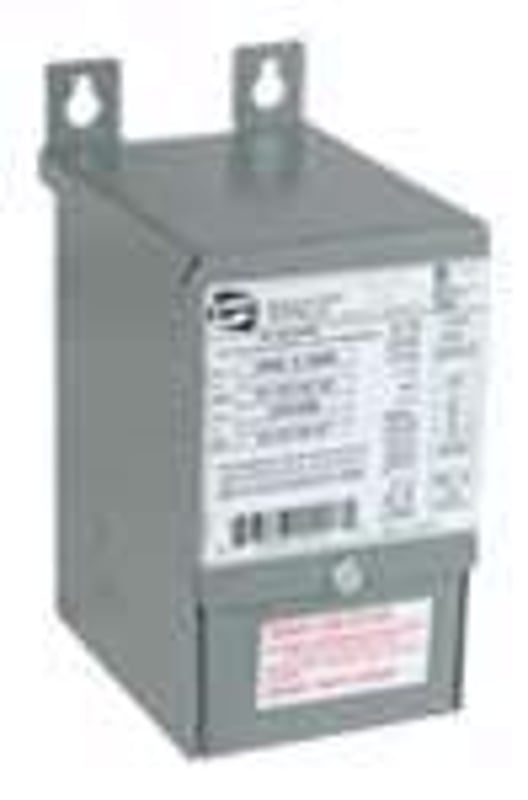

The Hammond C1F1C0LES is a potted single-phase distribution transformer with a 1 kVA rating. Designed for commercial applications, it features a 240x480 primary voltage and a 120/240 secondary voltage. The innovative potted design offers single-screw access to the wiring compartment for easy installation. Suitable for indoor and outdoor use.

• 600V Class Commercial Potted Single Phase Distribution Transformer
• Innovative potted design provides single screw access on a hinged cover to the wiring compartment for commercial indoor and outdoor applications
• Wall mountable

Product Highlights

Ideal for shopping centers, schools, sports complexes, and light industrial loads. Encapsulated to seal out moisture and airborne contaminants.

Product Information

Standard Information

• Brand: HAMMOND
• Manufacturer Part Number: C1F1C0LES
• Country of Origin: CA|MX

Technical Specifications

• MPN: C1F1C0LES
• Brand: Hammond
• Type: Transformer > Distribution > Potted > Commercial > Single Phase
• Phase: 1 Phase
• Width: 5.88 in
• Height: 10.25 in
• UNSPSC: 39121027
• Wattage: 1 kVA
• Winding: Aluminum Wound
• Mounting: Wall Mount
• Standard: CSA, UL
• Enclosure: NQ3-N3R - Indoor or Outdoor
• Sub Brand: Commercial Potted Transformer
• Application: Shopping centers, schools, sports complexes, commercial, lighting, wastewater and light industrial loads.
• Input Voltage: 240X480
• Output Voltage: 120/240 V
• Frequency Rating: 60 Hz
• Special Features: Innovative potted design provides single screw access on a hinged cover to the wiring compartment for commercial indoor and outdoor applications
• Stripped Catalog Number: C1F1C0LES
• Catalog Description (MFR): 600V Class Commercial Potted Single Phase Distribution Transformer, 240x480 PV, 120/240 SV, 1 kVA
• Invoice Description (MFR): POTT 1PH DIST 240x480 PV 120/240 SV 1kVA
• Power Rating: 1 kVA
• Primary Voltage: 240/480 VAC
• Secondary Voltage: 120/240 VAC
• Series: Fortress Series
• Termination: Lead Wires
• Enclosure Type: Heavy duty type 3R, optional type 4, 4X (stainless steel) and 12
• VA Rating: 1,000 VA
• Enclosed: Yes
• Primary Fuseholder: Not Available
• Secondary Fuseholder: Not Available
• NEMA Rating: NEMA 3R
• Insulation Class: Class B
• Temperature Rise (F): 176 °F
• Approvals: CSA, UL
• Connection type: Lead Wire/Tab
• Mounting type: Wall
