Hammond C1F007LES potted 1PH 7.5kVA 240x480-120/240

Product Description

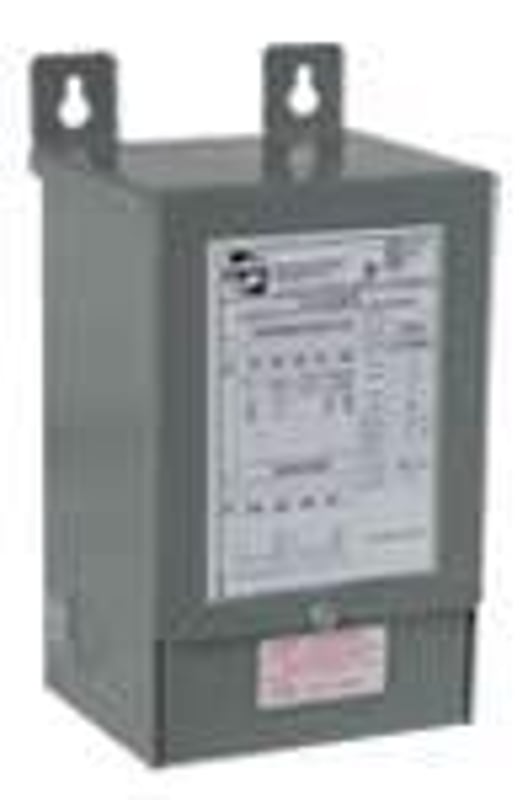

The Hammond C1F007LES is a potted single-phase distribution transformer. This 7.5kVA transformer is designed for 240x480 primary voltage and 120/240 secondary voltage. It features an innovative potted design that provides single screw access on a hinged cover to the wiring compartment for commercial indoor and outdoor applications.

• 600V Class Commercial Potted Single Phase Distribution Transformer
• 240x480 PV, 120/240 SV
• 7.5 kVA

Product Highlights

Encapsulated with electrical grade silica sand and resin compounds which completely enclose the core and coil to seal out moisture, airborne contaminants and eliminates corrosion and deterioration.

Product Information

Standard Information

• Brand: HAMMOND
• Manufacturer Part Number: C1F007LES
• Country of Origin: CA|MX

Technical Specifications

• Brand: Hammond
• MPN: C1F007LES
• Type: Transformer > Distribution > Potted > Commercial > Single Phase
• Phase: 1 Phase
• Width: 12.25 in
• Height: 17.63 in
• Wattage: 7.5 kVA
• Winding: Aluminum Wound
• Mounting: Wall Mount
• Standard: CSA, UL
• Enclosure: NQ6A-N3R - Indoor or Outdoor
• Sub Brand: Commercial Potted Transformer
• Application: Shopping centers, schools, sports complexes, commercial, lighting, wastewater and light industrial loads.
• Product Name: Commercial Encapsulated Transformer
• Input Voltage: 240X480 V
• Output Voltage: 120/240 V
• Frequency Rating: 60 Hz
• Special Features: Innovative potted design provides single screw access on a hinged cover to the wiring compartment for commercial indoor and outdoor applications
• Stripped Catalog Number: C1F007LES
• Catalog Description (MFR): 600V Class Commercial Potted Single Phase Distribution Transformer, 240x480 PV, 120/240 SV, 7.5 kVA
• Invoice Description (MFR): 1PH DIST 240x480 PV 120/240 SV 7.5kVA
• Dimensions: 9.25 in L x 12.25 in W x 17.63 in H
• Enclosure Type: NEMA 3R Style
• Primary Voltage: 240/480 V AC
• Secondary Voltage: 120/240 V AC
• Series: Fortress
• Connection type: Lead Wire/Tab
• Manufacturer Name: Hammond Power Solutions
• VA Rating: 7,500 VA
• NEMA Rating: NEMA 3R
• Insulation Class: Class H
• Temperature Rise (F): 239 °F
• Approvals: CSA, UL
• Configuration: Encapsulated
• Mounting Type: Panel Mount
• Primary Type: Industrial Transformer
• Termination: Lead Wires
• Applications: For Commercial use
• Material: Copper
