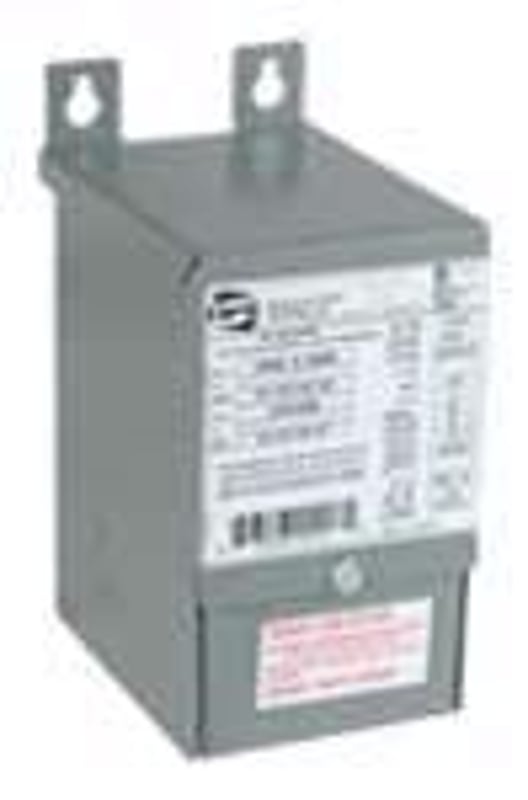

Hammond C1F002LES 2KVA Encl Trans 480/240V Pri 120/240

Product Description

The HAMMOND C1F002LES is a 2 kVA encapsulated distribution transformer with a primary voltage of 240x480 and a secondary voltage of 120/240. It is designed for commercial applications and features an innovative potted design for easy wiring compartment access. This single-phase transformer is suitable for indoor and outdoor use in shopping centers, schools, and light industrial settings.

• 600V Class
• Commercial Potted
• Innovative potted design provides single screw access on a hinged cover

Product Highlights

Encapsulated design seals out moisture and contaminants. Ideal for commercial applications requiring ease of installation and low cost.

Product Information

Standard Information

• Brand: HAMMOND
• Manufacturer Part Number: C1F002LES

Technical Specifications

• Brand: Hammond
• MPN: C1F002LES
• Phase: 1 Phase
• Width: 7 IN
• Height: 11.75 in
• Wattage: 2 kVA
• Winding: Aluminum Wound
• Mounting: Wall Mount
• Standard: CSA, UL
• Enclosure: NQ4-N3R - Indoor or Outdoor
• Sub Brand: Commercial Potted Transformer
• Application: Shopping centers, schools, sports complexes, commercial, lighting, wastewater and light industrial loads.
• Product Name: Encapsulated Distribution Transformer
• Input Voltage: 240X480 V AC
• Output Voltage: 120/240 V AC
• Frequency Rating: 60 Hz
• Special Features: Innovative potted design provides single screw access on a hinged cover to the wiring compartment for commercial indoor and outdoor applications
• Primary Voltage: 240/480 V AC
• Termination: Lead Wires
• Enclosure Type: NEMA 3R Style
• Connection Type: Lead Wire/Tab
