Hammond 1435A Pushbutton Encl 30.5Mm Nema 12

Product Description

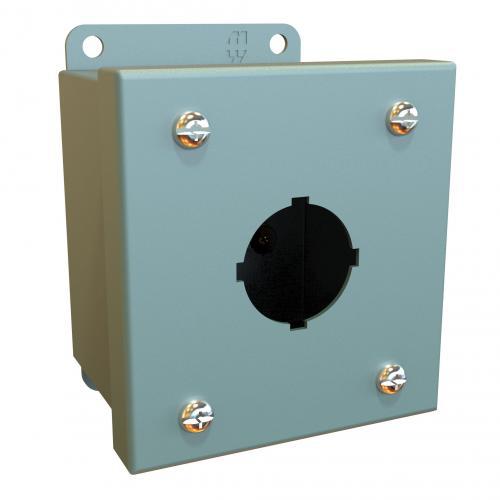

The Hammond 1435A is a pushbutton enclosure designed for standard heavy-duty oil-tight pushbuttons, switches, and pilot lights. It provides protection from dirt, dust, oil, and water. The enclosure features continuously welded seams and captive cover screws that thread into sealed wells.

• Formed 14 ga steel except A and B which are 16 ga
• Smooth, continuously welded seams
• Welded brackets provide for enclosure mounting

Product Highlights

This Hammond pushbutton enclosure is ideal for industrial environments requiring robust protection for electrical components.

Product Information

Standard Information

• Brand: Hammond
• Manufacturer Part Number: 1435A

Technical Specifications

• Series: 1435 Series
• Size H x W x D: 3.5 in x 3.25 in x 2.75 in (89 mm x 83 mm x 70 mm)
• UNSPSC: 39121326
• UPC: 623980402802
• UL File #: E65324
• CSA Cert. #: LR21001
• REACH Compliant: Yes
• RoHS Compliant: Yes
• Packaging Type: Box
• Capacity: 31.2812 cu-in
• NEMA Rating: NEMA 12, NEMA 13
• IP Rating: IP54
• Number of Holes: 1
• Hole Size: 30 mm
• Material: Steel
• Finish: Gray Powder Coating
• Standards: CSA Type 12 and 13, IEC 60529, JIC EGP-1-1967, JIC EMP-1-1967, UL 508 Type 12 and 13
• Configuration: No Cable Entry
• Enclosure Mounting: Panel Mount
• Cable Entry: No Cable Entry
• Body Height: 3.5 in.
• Body Length: 3.25 in
• Body Width: 2.75 in.
• Product Series: 1435
• Family Series: Hammond Manufacturing Enclosures, 1435 Series
• Description: Pushbutton Enclosure, 1-Hole, 30mm, 1-13/64in. Hole Cut-Out, Not Hinged, 3.50in.x3.25in.x2.75in.
• Composition: Metallic
• Cover Design: Lift-Off Cover
• Nominal Height: 3 "
• Nominal Width: 3 "
• Nominal Depth: 2 "
• Latching Mechanism: Screws
