Hammond 1418N4S16B6 16X12X6 Encl 316SS

Product Description

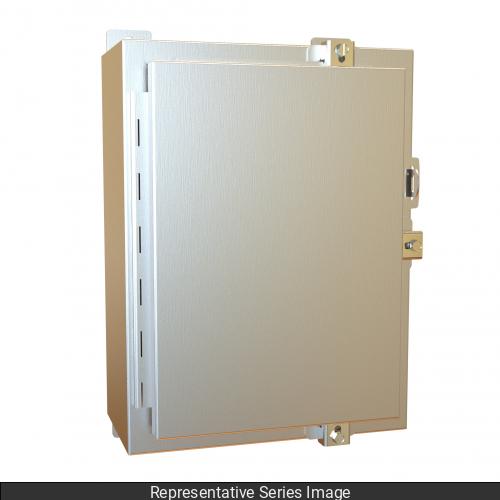

The Hammond Mfg 1418N4S16B6 is a wall-mounted enclosure designed for various applications. This enclosure measures sixteen inches by twelve inches by six inches and is constructed from stainless steel. It is suitable for use in environments where protection from water, dust, and other contaminants is necessary.

• Type 4X stainless steel construction
• Designed for wall mounting
• 1152 cubic inches of internal capacity

Product Highlights

This enclosure is ideal for instrument housing, electrical components, and pneumatic or hydraulic controls.

Product Information

Standard Information

• Manufacturer: Hammond Mfg
• Family Group: Wireway/Enclosures

Technical Specifications

• Size: 16 inches x 12 inches x 6 inches
• Material: Stainless Steel
• NEMA Rating: Type 3R; Type 13; Type 4X
• Weight: 30 lbs
• Cubic Capacity: 1152 cubic inches
• Mounting: Wall
• Standards Met: CSA; UL; CE
• Special Features: Formed fourteen gauge stainless steel with continuously welded seams
