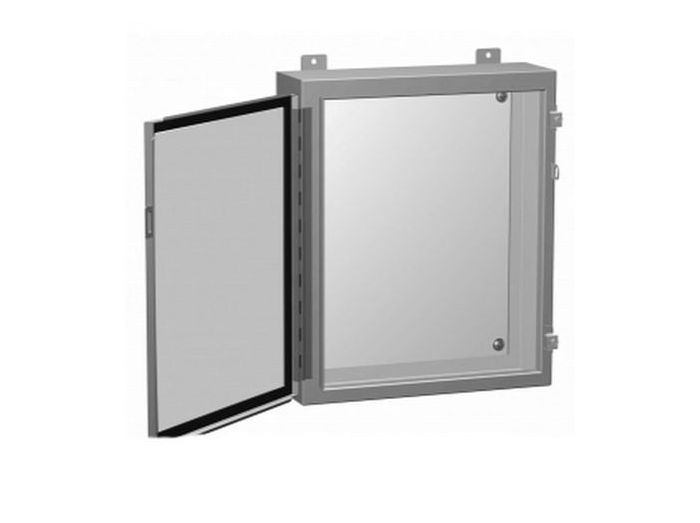

Hammond 1418J8 N12 Wallmount Encl w/panel 24 x 24 x 8

Product Description

The Hammond 1418J8 is a N12 wallmount enclosure with panel, designed to house electrical, electronic, hydraulic or pneumatic controls and instruments. It provides protection from falling dirt, dust, oil, and water. Constructed from formed 14 gauge steel with a gray recoatable powder finish.

• Nema Types 12 and 13
• UL; CSA Approvals
• Continuous Hinge Door

Product Highlights

The Hammond 1418J8 enclosure features continuously welded seams, a grounding stud, welded mounting brackets, and a removable back panel.

Product Information

Standard Information

• Brand: Hammond
• Manufacturer Part Number: 1418J8

Technical Specifications

• Part Number: 1418J8
• Series: Type 12 Mild Steel Wallmount Enclosure (1418 Series)
• Short Description: NEMA12 PNL ENCL 24X24X8
• Long Description: N12 Wallmount Encl w/panel - 24 x 24 x 8 - Steel/Gray
• Size H x W x D: 24 in x 24 in x 8 in (610 mm x 610 mm x 203 mm)
• UNSPSC: 39121324
• UPC: 623980366609
• UL File #: E65324
• CSA Cert. #: LR21001
• REACH Compliant: Yes
• RoHS Compliant: Yes
• Packaging Type: Box
• Manufacturer Part Number: 1418J8
• Manufacturer: Hammond Manufacturing
• Product Series: 1418
• Family Series: Hammond Manufacturing Enclosures, 1418 Series
• Description: ENCLOSURE, 24in.Hx24in.Wx8in.D, N12,13 SINGLE DOOR, CONTINUOUS HINGE, CLAMPED COVER, INNER PANEL INCLUDED
• Material: Steel
• Composition: Metallic
• Number of Doors: 1
• Cover Design: Hinged
• Window/Clear Cover: No
• Latching Mechanism: Clamps
• Panel Included: Yes
• NEMA Rating: NEMA 12, NEMA 13
• Nominal Height: 24 "
• Nominal Width: 24 "
• Nominal Depth: 8 "
• Approvals: CE, CSA, UL
• Net Weight: 68 lbs
• Gross Weight: 68 lbs
• Product Type: Electrical Enclosure
• Length: 24 in.
• Width: 24 in.
• Height: 8 in.
• Agency Approvals: csa, ul, ccsaus, ce, NEMA type-12, type-13
• Manufacturer Series: 1418
• IP Rating: IP54
• Boxes: Boxes
• Design: Hinged Door, Lid
• Mfr: Hammond Manufacturing
• Color: Gray
• Thickness: 14 Gauge
• Part Status: Obsolete
• Features: Interior Panels, Mounting Flange
• Container Type: Box
• Ratings: IP54, JIC EGP-1-1967, NEMA 12,13, UL-508
• Size / Dimension: 24.000" L x 24.000" W (609.60mm x 609.60mm)
• Area (L x W): 576in 2 (3716cm 2)
