Hammond 1418E8LP N4/12 Wallmount Enclosure Less Panel (24 x 20 x 8)

Product Description

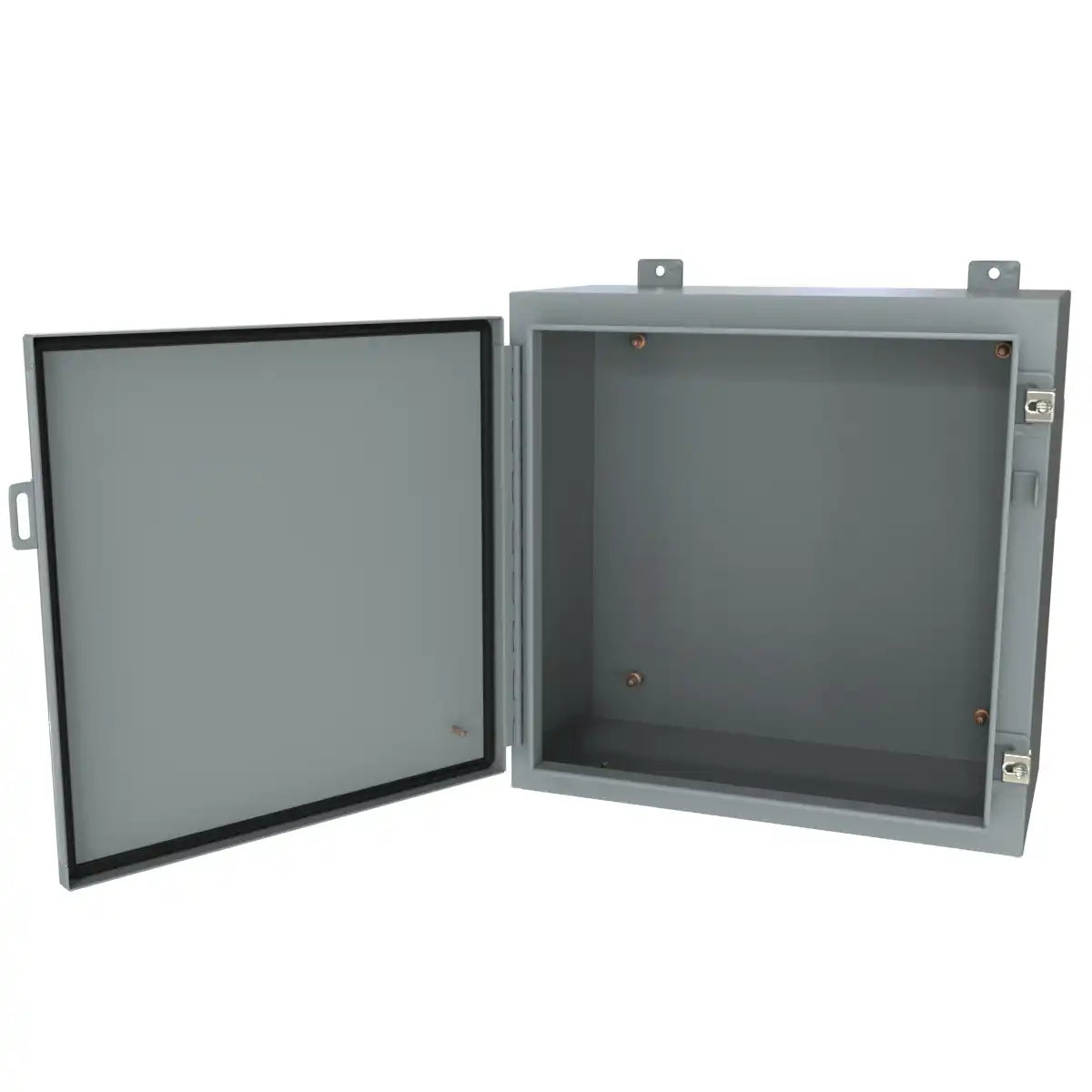

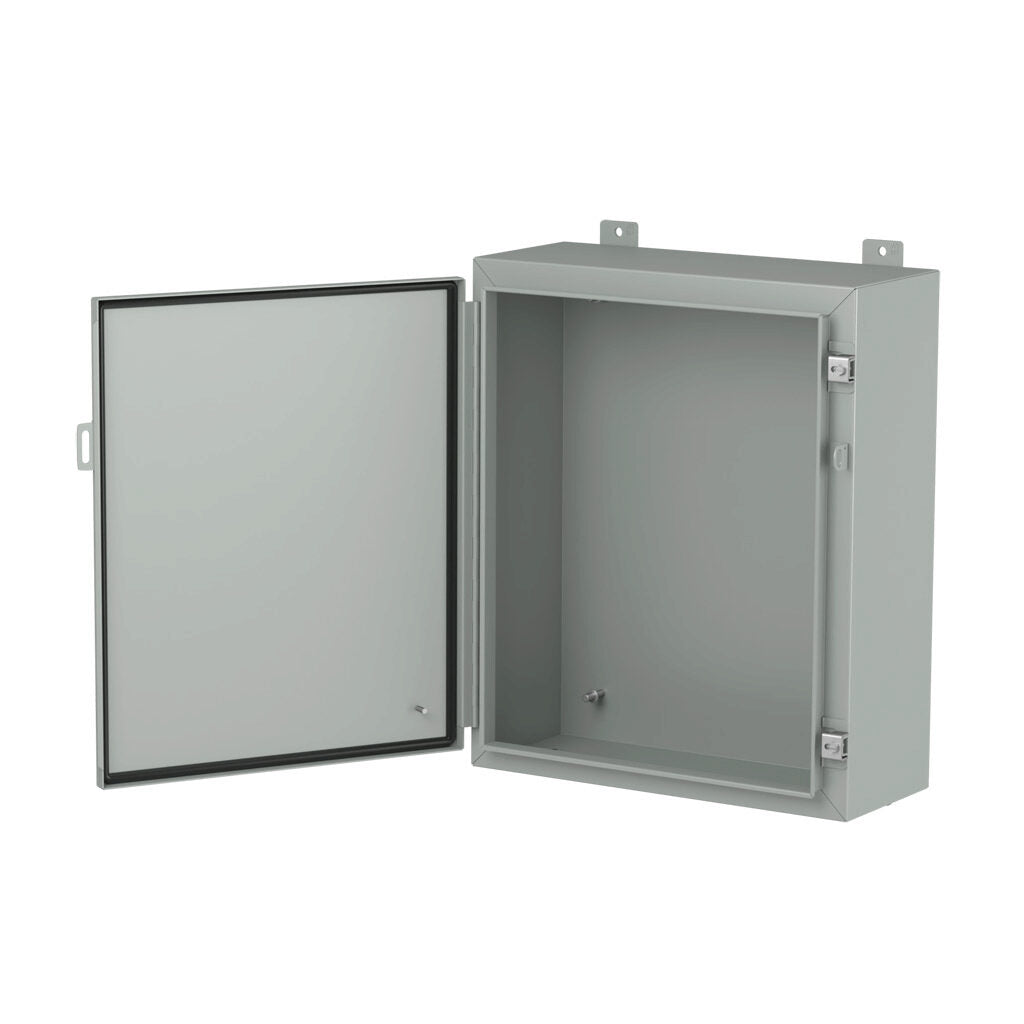

Hammond 1418E8LP is a Type 4/12 mild steel wallmount enclosure supplied less panel with nominal dimensions 24 x 20 x 8 inches (610 x 508 x 203 mm). The unit is designed for NEMA 4/12 protection and is REACH and RoHS compliant. It features a continuous-hinge single door secured by stainless steel clamp latches and a padlock hasp; integral mounting feet are provided and the subpanel is sold separately.

• Type 4/12 protection (NEMA 4/12) with IP66 rating listed; RoHS and REACH compliant
• Mild steel construction, nominal dimensions 24 x 20 x 8 in (610 x 508 x 203 mm); supplied less panel
• Continuous-hinge single door with two stainless steel clamp latches, padlock hasp, and integral mounting feet

Product Highlights

Type 4/12 mild steel wallmount enclosure less panel, 24 x 20 x 8 in; continuous-hinge single door with clamp latches; RoHS and REACH compliant; UL file E65324.

Product Information

Standard Information

• Brand: HAMMOND
• Manufacturer Part Number: 1418E8LP
• Country of Origin: Canada

Technical Specifications

• Part Number: 1418E8LP
• Series: 1418LP Series
• Enclosure Type: Wallmount enclosure - Less panel
• NEMA Rating: Type 4/12
• IP Rating: IP66
• Material: Mild steel
• Finish: Steel/gray powder coat
• Dimensions (H x W x D): 24 in x 20 in x 8 in (610 mm x 508 mm x 203 mm)
• Mounting Type: Wall
• Door Type: Single-door
• Hinge Type: Continuous hinge
• Latch Type: Stainless steel clamp latches
• Number of Latches: 2
• Padlock Attachment Type: Padlock hasp and staple
• Integral Mounting Feet: Yes
• Subpanel: Sold separately
• RoHS Compliant: Yes
• REACH Compliant: Yes
• UL File Number: E65324
• UPC: 623980365510
• UNSPSC: 39121324
