Hammond 1414phj6 n12 j box, hinge cover w/panel 10 x 10 x 6

Product Description

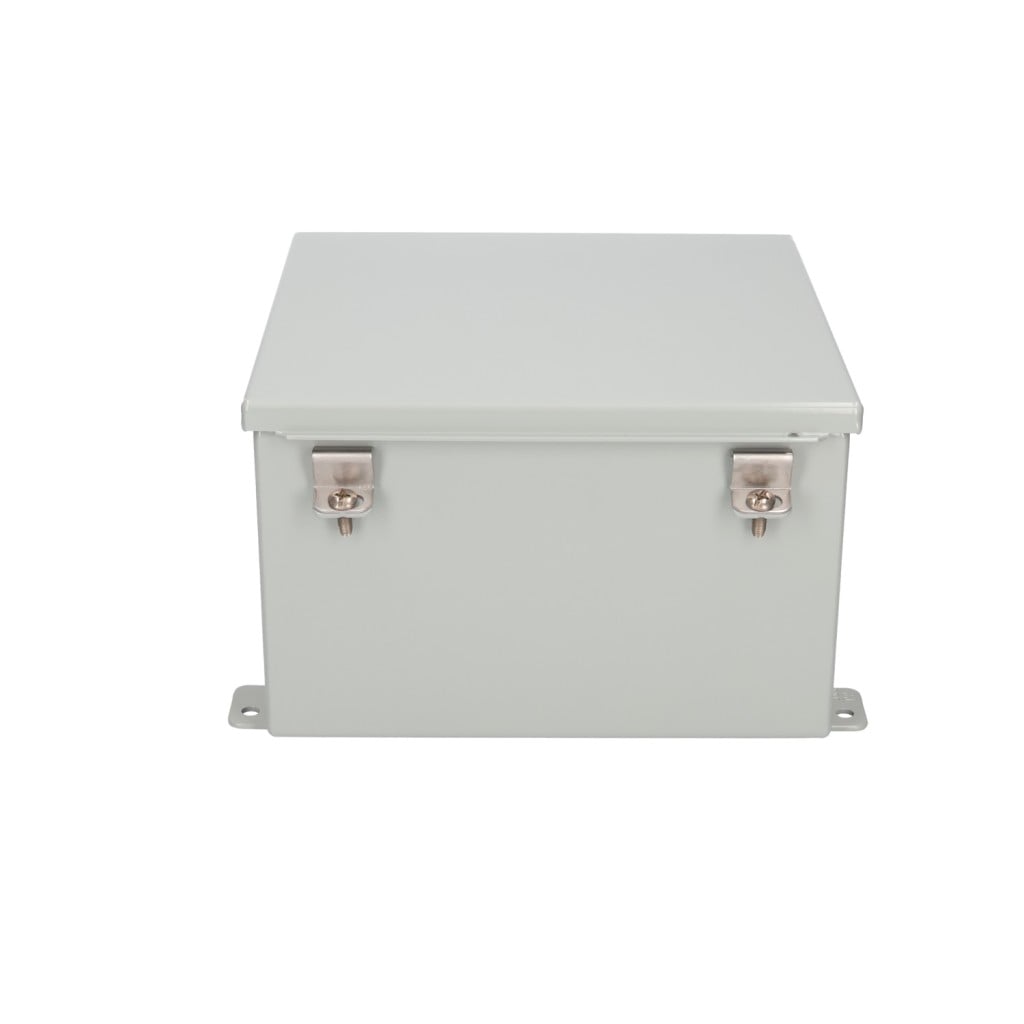

The Hammond 1414PHJ6 N12 J Box is designed with a hinge cover and panel, measuring 10 x 10 x 6 inches. Constructed from steel, this enclosure provides protection from falling dirt, dust, oil, and water. It is suitable for use as an instrument enclosure, electric control housing, junction box, or terminal wiring enclosure.

• NEMA Types 12 and 13 rated
• Constructed from 14 or 16 gauge steel
• Features continuously welded seams and a hinged door

Product Highlights

The Hammond 1414PHJ6 is a robust steel enclosure with a hinged cover, ideal for protecting electrical components in various industrial environments.

Product Information

Standard Information

• Brand: Hammond
• Manufacturer Part Number: 1414PHJ6

Technical Specifications

• Part Number: 1414PHJ6
• Series: Type 12 Mild Steel Junction Box (1414 PH Series)
• Short Description: NEMA 12 HNGD CVR 10X10X6
• Long Description: N12 J Box, Hinge Cover w/panel - 10 x 10 x 6 - Steel/Gray
• Size H x W x D: 10 in x 10 in x 6 in (254 mm x 254 mm x 152 mm)
• Shipping Weight: 14 lbs (6.35 kg)
• UNSPSC: 39121324
• UPC: 623980350202
• UL File #: E65324
• CSA Cert. #: LR21001
• REACH Compliant: Yes
• RoHS Compliant: Yes
• Packaging Type: Box
• Overall Dims: (10 x 10 x 6)
• Eccn: EAR99
• Panel Length: 8.75
• Panel Width: 8.88
• Color: ANSI 61 gray
• Mounting Style: Welded brackets provide for enclosure mounting
• Inner Pannel: Included finished in white powder coating

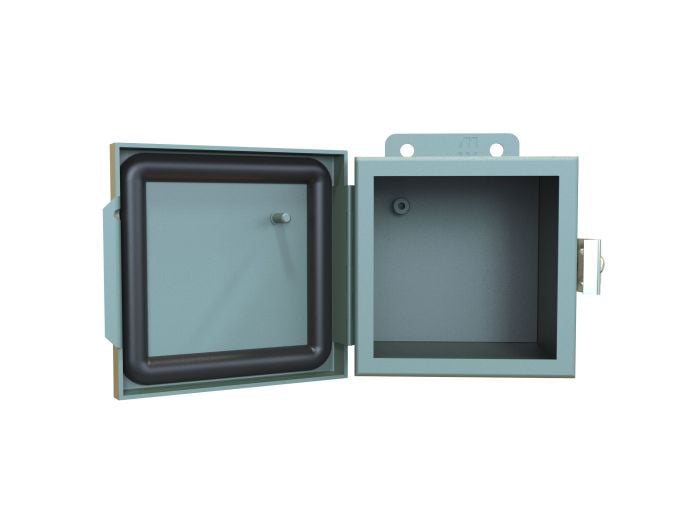

• Gasket: Seamless poured-in place

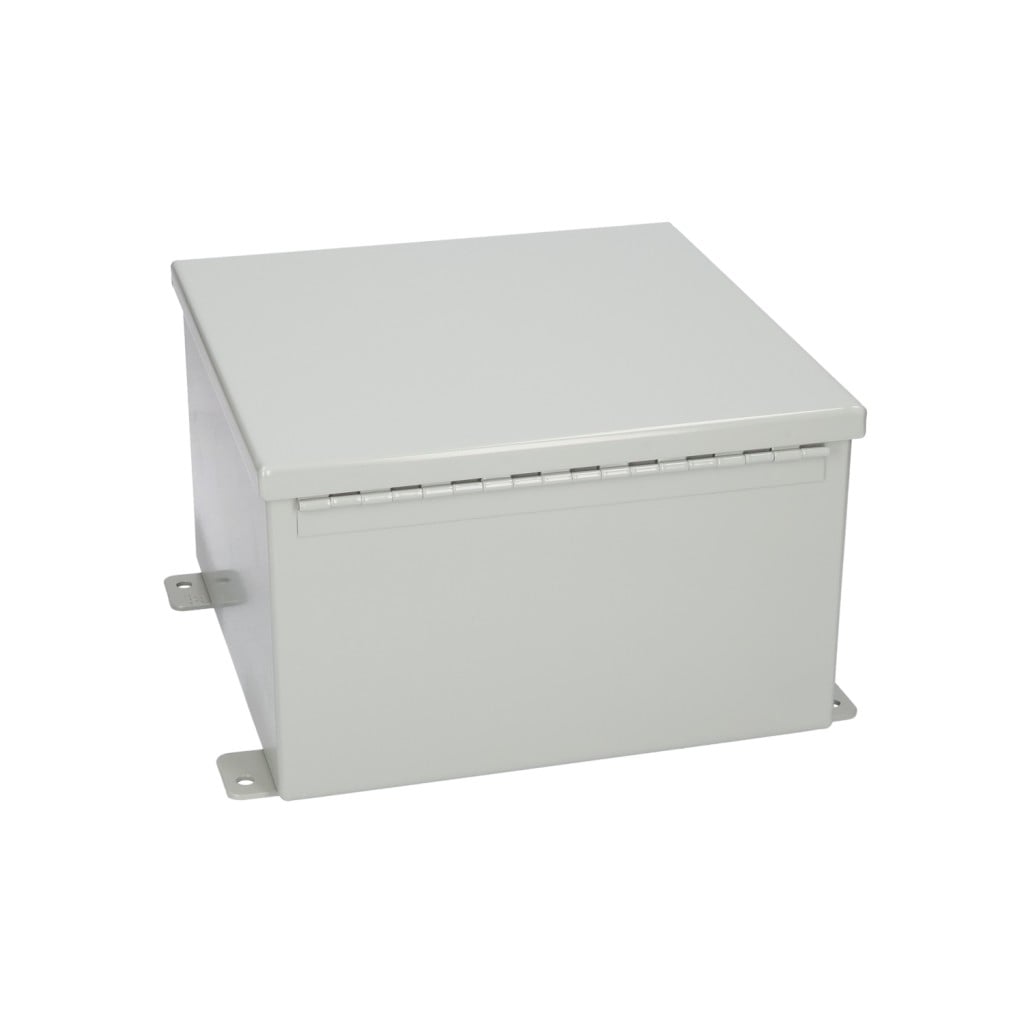

• Cover Style: Continuous Hinge Door with Clamps
• Body Construction: formed from 16 gauge or 14 gauge steel. Covers are formed from 14 gauge steel
• NEMA Rating: Type 12 and 13
• Hammond Product Group: electrical
• Hammond Product Type: enclosure
• UL 508: Type 12 and 13
• JIC: EGP-1-1967
• Hammond Series: 1414PH
• CSA: Type 12 and 13
• IEC 60529: IP54
• Lead-Time Weeks: 11
• Standard Stock: Yes
• Brand: Hammond Manufacturing
• Material: Steel
• Style: Compact
• Finish Type: Powder Coated
• Installation Type: Screw-In
• Item Weight: 14 Pounds
• Manufacturer Part Number: 1414PHJ6
• Manufacturer: Hammond Manufacturing
• Product Series: 1414PH
• Family Series: Hammond Manufacturing Enclosures, 1414PH Series
• Description: Enclosure, 10in.Hx10in.Wx6in.D, N12/13, Painted Steel, Hinged Clamped Cover, Includes Inner Panel
• Composition: Metallic
• Number of Doors: 1
• Cover Design: Hinged
• Window/Clear Cover: No
• Latching Mechanism: Clamps
• Panel Included: Yes
• Nominal Height: 10 "
• Nominal Width: 10 "
• Nominal Depth: 6 "
• Approvals: CE, CSA, UL
• Net Weight: 14 lbs
• Gross Weight: 14 lbs
• Boxes: Boxes
• Design: Hinged Door, Lid
• Mfr: Hammond Manufacturing
• Thickness: 14 Gauge
• Part Status: Active
• Features: Interior Panels
• Container Type: Box
• Ratings: IP54, JIC EGP-1-1967, NEMA 12,13, UL-508
• Size / Dimension: 10.000" L x 10.000" W (254.00mm x 254.00mm)
• Height: 6.000" (152.40mm)
• Area (L x W): 100in² (645cm²)
• Base Product Number: 1414
