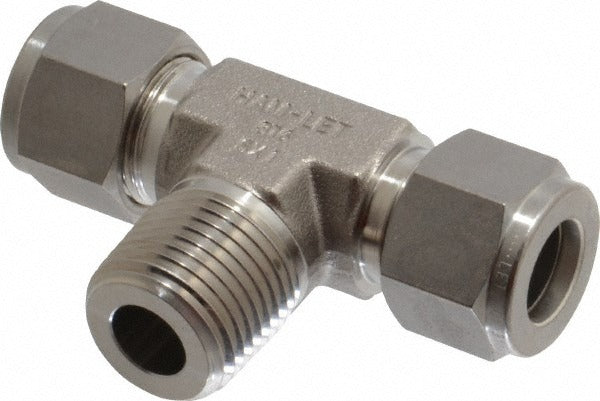

Ham-let 3002366 Compression Male Branch Tee 1/2 in Ss

Product Description

The HAM-LET 3002366 is a compression tube male branch tee designed for high-pressure fluid and gas line branching in industrial and mechanical systems. It features Compression x Compression x MNPT end connections, allowing a 1/2-inch OD tube run to branch off to a male NPT threaded port without welding or soldering. Constructed from 316 stainless steel to material grade standards including ASTM A182, ASTM A213, ASTM A269, ASTM A276, and ASTM A479, it is rated for a maximum working pressure of 7700 psi. The overall length is 2.84 inches. This fitting is installed by licensed pipefitters, instrumentation technicians, and industrial plumbers working in corrosion-sensitive or high-pressure environments.

This male branch tee is suited for use in process piping, instrumentation tubing, hydraulic lines, and fluid handling systems where a branch connection to a threaded port is required. The 316 stainless steel construction makes it appropriate for corrosive media, offshore, chemical processing, and similar demanding service environments. It is a direct compression-style fitting requiring no special tooling beyond standard tube preparation and a wrench for tightening the compression nuts.

Key Features

• 316 stainless steel construction meets ASTM A182, ASTM A213, ASTM A269, ASTM A276, and ASTM A479 standards
• Maximum working pressure of 7700 psi for high-pressure service
• Compression x Compression x MNPT end connections for tool-free tube joining with a threaded branch port
• 1/2-inch tube outside diameter compatibility
• Overall length of 2.84 inches for compact installation in tight spaces
• Operating temperature range from -20 degrees F to 37 degrees C for low-temperature service suitability

Compatibility

The Swagelok equivalent cross-reference for this fitting is part number SS-810-3-8TTM. Designed as an OEM-style replacement or equivalent compression tube male branch tee for 1/2-inch OD tube systems using MNPT branch connections in industrial piping and instrumentation applications.

Installation Notes

Installation should be performed by a qualified pipefitter or instrumentation technician familiar with compression fittings and high-pressure tubing systems. Depressurize and isolate the line completely before disassembly or installation of any fitting. Ensure tube ends are cut square, deburred, and cleaned before inserting into the compression body. Follow applicable industry codes including ASME B31.1 or B31.3 for process piping where required.
