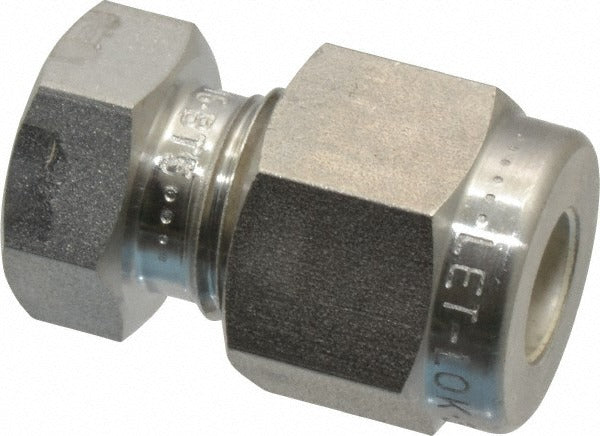

Ham-let 3001050 Compression Tube End Cap 1/4 in Ss

Product Description

The HAM-LET 3001050 is a compression-style tube end cap machined from 316 stainless steel to ASTM A182, ASTM A213, ASTM A269, ASTM A276, and ASTM A479 standards. It terminates a 1/4-inch outside-diameter tube run at any point in a compressed gas, instrumentation, or fluid system where flow must be blocked and the line sealed. The overall installed length is 0.92 inches. Rated for a minimum service temperature of -20 degrees F, it suits both indoor and outdoor instrumentation installations. Licensed plumbers, pipefitters, and instrumentation technicians typically handle this fitting class.

This end cap is used in instrumentation tubing systems, pneumatic control lines, hydraulic circuits, and process piping where a clean, pressure-tight termination is required on a 1/4-inch OD tube. The compression connection eliminates the need for threading or welding at the termination point, making it well-suited for retrofit work and tight-space installations in commercial and industrial settings.

Key Features

• 316 stainless steel construction meets ASTM A182, A213, A269, A276, and A479 as well as DIN EN10122-5 and DIN EN10272
• Compression end connection accepts 1/4-inch OD tubing with no threading or welding required
• Compact overall length of 0.92 inches for use in confined instrument panels and manifold assemblies
• Rated to -20 degrees F minimum service temperature for refrigeration and outdoor instrumentation service
• Sold individually, allowing single-piece replacement or low-quantity procurement

Compatibility

Designed as an OEM-style compression fitting compatible with standard 1/4-inch OD instrumentation and process tubing. The Swagelok equivalent reference part number is SS-400-C.

Installation Notes

Installation is performed by a licensed pipefitter or instrumentation technician. Depressurize and isolate the tubing circuit completely before removing any existing fitting or installing this end cap. Ensure the tube end is cut square, deburred, and clean before seating the compression ferrule. Follow the fitting manufacturer torque guidance for compression connections and verify the seal under system pressure before returning the line to service.
