Product Description

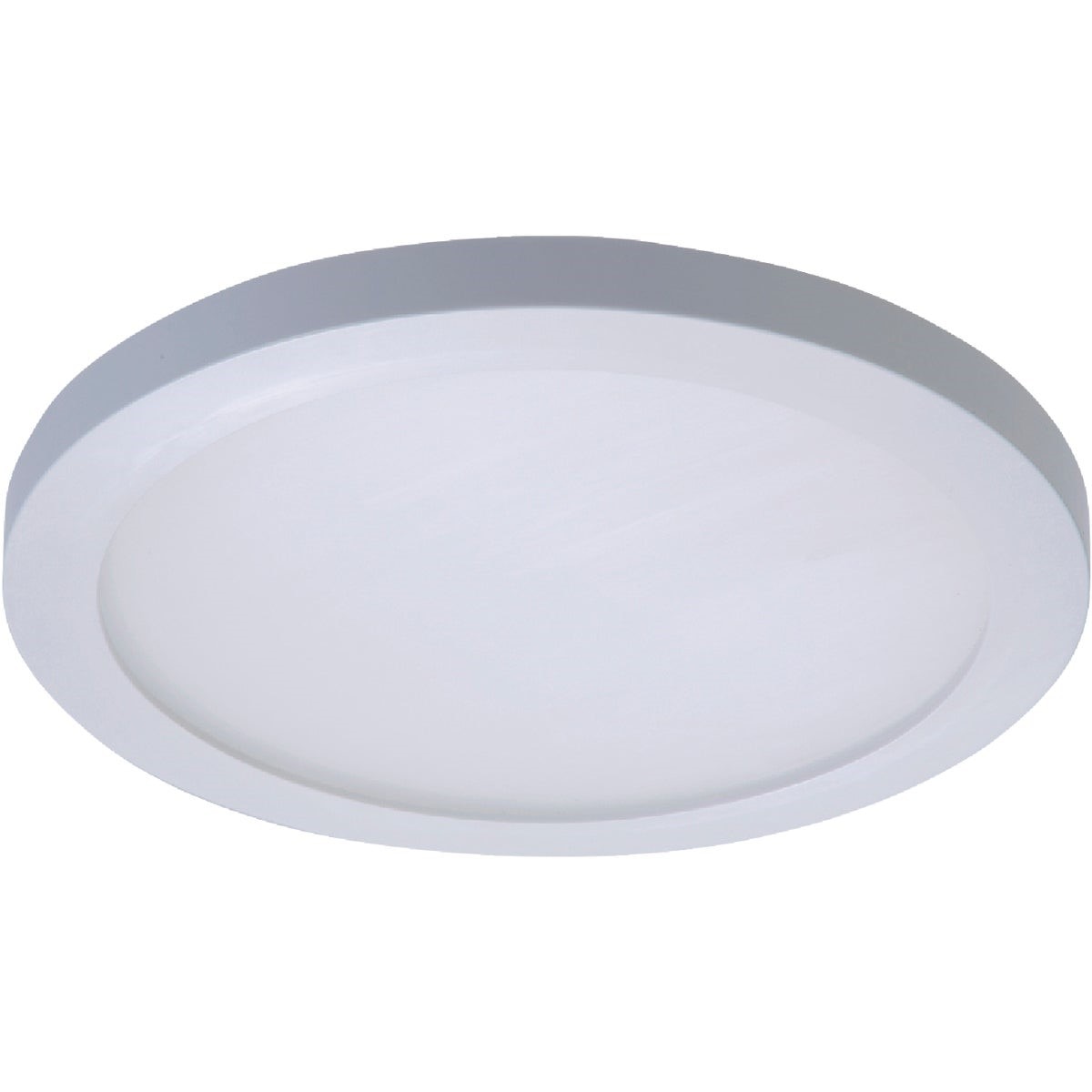

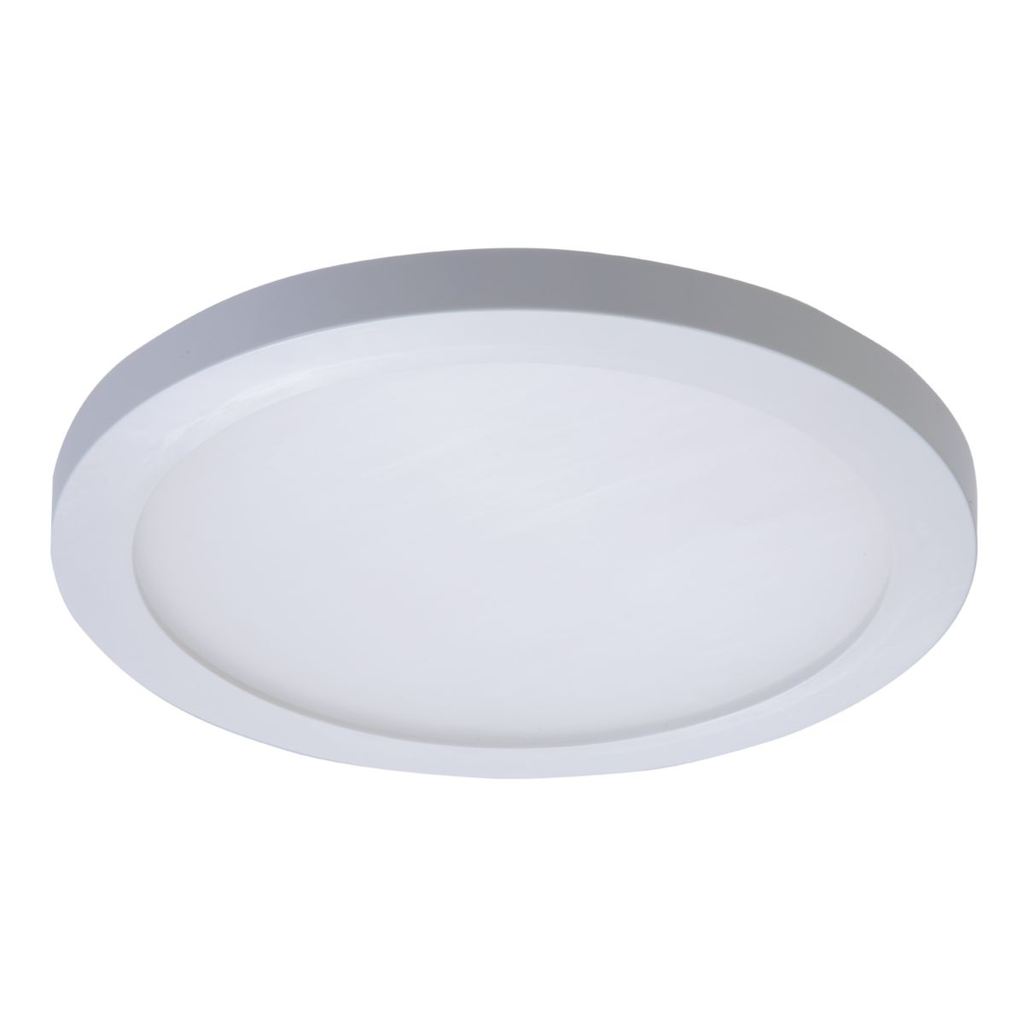

The Halo SMD6R69SWH 6 In. Round Retrofit LED Flush Mount LED Recessed Light Kit is designed for new construction, remodel, and retrofit applications. This surface mount downlight installs directly to a junction box or retrofits insulated ceilings and recessed housings. It features 5 CCT selectability.
- 1/2" ultra-low profile lens downlight with wide distribution

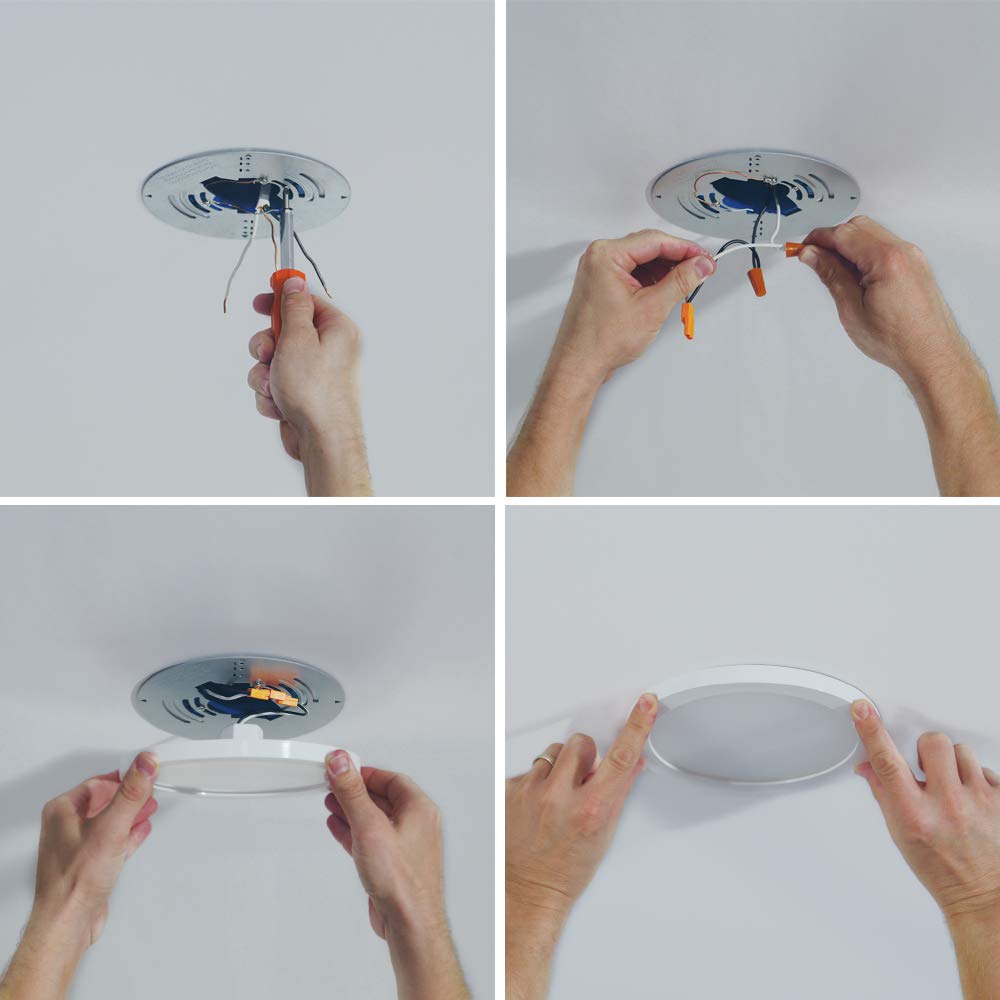

- Ceiling/wall mounting in compatible junction boxes
- Installs in many 3-1/2 and 4 in square, octagon or round junction boxes
Product Highlights
This 6 inch LED downlight provides 600-777 lumens with a selectable color temperature between 2700K and 5000K. It is suitable for damp and wet locations and is dimmable.
Product Information
Standard Information
-
Brand: HALO
-
Manufacturer Part Number: SMD6R69SWH
-
Country of Origin: China
Technical Specifications
-
Brand: Halo
-
MPN: SMD6R69SWH
-
Manufacturer: Cooper Lighting
-
Type: Recessed
-
Mounting: Ceiling/Wall Mount
-
Standard: cULus Listed;Wet Locations Listed;Damp Locations Listed;AIR-TITE (TM) Certified ASTM E283;NFPA;EMI/RFI per FCC 47CFR Part 15 B;RoHS Compliant;LM79/LM80 Compliant;Title 20 Compliant
-
Lamp Type: LED
-
Sub Brand: SMD6 LED 6" Round/Square Field Selectable CCT Surface-Mount Downlights
-
Trade Size: 6IN
-
Application: Lighting
-
Voltage Rating: 120V
-
Amperage Rating: 0.08A at 120V
-
Number Of Lamps: 1
-
Special Features: 1/2" ultra-low profile lens downlight with wide distribution
-
Average Life: 50000 hr
-
Lumens: 600 Lumens
-
Light Output: 82 Lumens/W
-
Color Rendering Index (CRI): 90
-
Lens Type: High-Impact Diffuse Polystyrene
-
Fixture Wattage: 9.2 W
-
Ballast Type: Dimmable
-
Insulation Type: Spray Foam
-
Series: SMD6
-
Housing Finish: Matte White
-
Housing Material: Stamped Aluminum
-
Color Temperature: 2500 - 3000 K Warm
-
Includes: Screwbase Adapter
-
Fixture Type: Non Removable
-
Wattage: 9.2 watts
-
Material: Copper, PVC, Metal, Aluminum
-
Power Source: AC/DC
-
Mounting Type: Ceiling Mount
-
Lighting Method: LED
-
Light Source Type: LED
-
Indoor/Outdoor Usage: Indoor
-
Specific Uses For Product: Bathroom, Bedroom, Kitchen, Living Room, Office
-
Voltage: 120 Volts
-
Dimmable: Yes
-
Current Rating: 0.08 A
-
Trim Type: Round
-
Finish: Matte
-
Model / MPN: SMD6R69SWH
-
Product Type: LIGHT_FIXTURE
-
Size: 6"
-
Light fixture form: Recessed
-
Batteries Included?: No
-
Batteries Required?: No
-
Included Components: LED module
-
Shape: Circular
-
Style: Modern
-
Room Type: Living Room
-
Plug Format: A- US style
-
Shade Color: White
-
Light Source: LED
-
Number of Light Sources: 1
-
Light Color: White
-
Bulb Base: E26 Medium
-
Switch Type: Remote
-
Water Resistance Level: Not Water Resistant
-
Efficiency: High
-
Installation Type: Surface Mount
-
Required Assembly: No
-
Nominal Size (in.): 6 in
-
Recessed Can Diameter: 6 in
-
Recessed Depth: 9/16 in
-
Occasion: Casual
-
Light Direction: Downwards
-
Installation Area: Indoor
-
IP Rating: IP20
