Halo SMD14R209SWHE CPL 14\" Round Surface Mount 26W 90CRI

Product Description

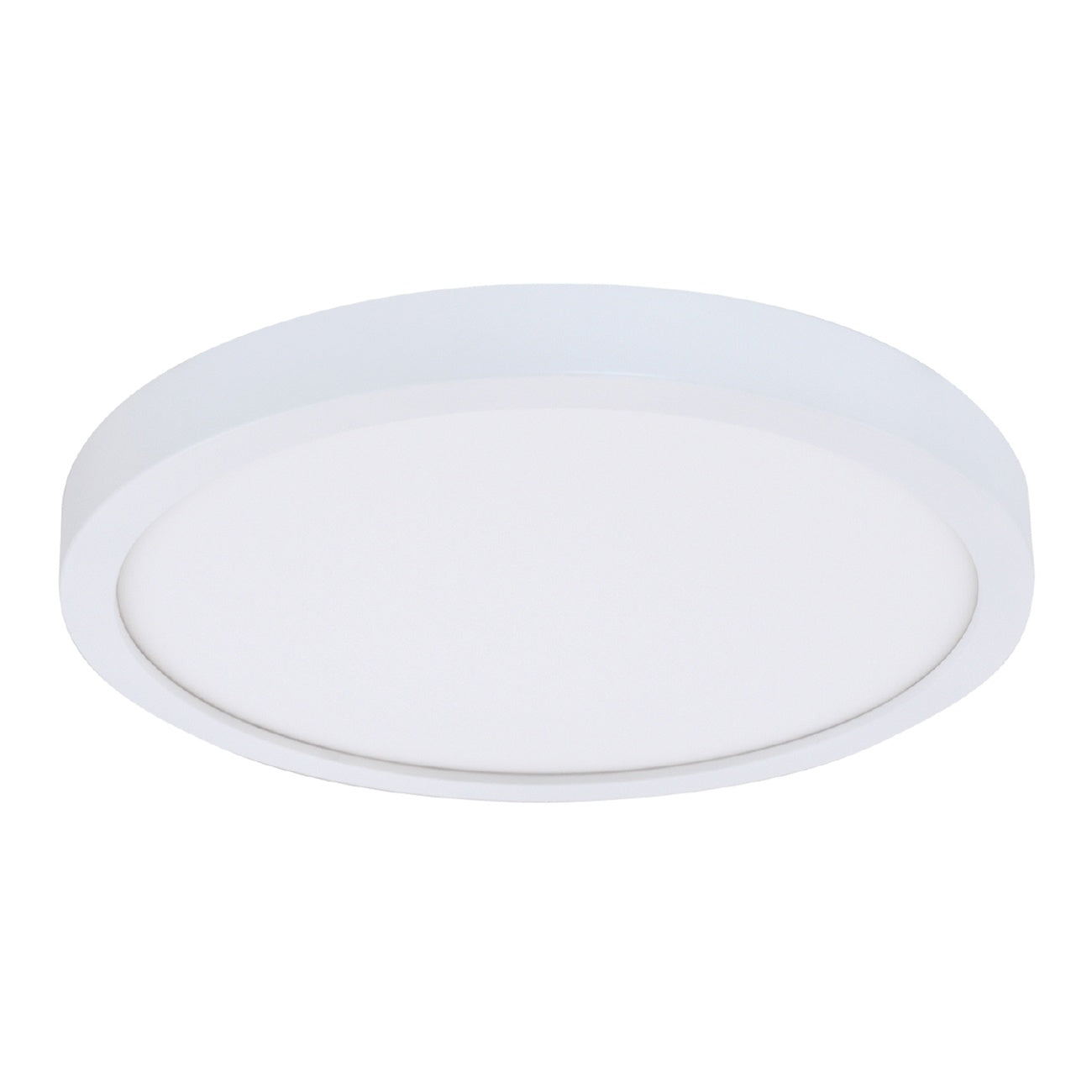

The HALO SMD14R209SWHE is a 14" round surface mount downlight with 26W power consumption and a 90 CRI. It is designed for ceiling or wall mounting in compatible junction boxes. The downlight provides 2000 lumens and is field selectable. Dimmable with 0 to 10 Volt DC low voltage dimmers only.

• 14" Round Surface Mount Downlight
• 2000 lumens
• 90 CRI
• Field selectable

Product Highlights

This surface mount downlight is suitable for damp and wet locations and has a 5 years limited warranty.

Product Information

Standard Information

• Brand: HALO
• Manufacturer Part Number: SMD14R209SWHE

Technical Specifications

• MPN: SMD14R209SWHE
• Brand: Halo
• Type: Field-Selectable CCT
• Finish: White
• Wattage: 26 W
• Mounting: Ceiling/Wall Mount
• Standard: cULus Listed - Wet Location;cULus Listed - Damp Location;RoHS Compliant;Airtite;Energy Star Certified
• Lamp Type: LED
• Sub Brand: SMD14 LED 14" Round/Square Field Selectable CCT Surface-Mount Downlights
• Trade Size: 14IN
• Application: Lighting
• Description: CPL SMD14R209SWHE 14" 26W ROUNDSURFACE MOUNT DWNLT 5-CCT 90CRI0-10V 120-277V
• Voltage Rating: 120/277V
• Amperage Rating: 0.095A at 277V
• Number Of Lamps: 1
• Special Features: Ceiling/wall mounting in compatible junction boxes
• Stripped Catalog Number: SMD14R209SWHE
• Catalog Description (MFR): 14" Round Surface Mount Downlight,2000 lumens,90 CRI, field selectable ,Matte White Finish,120-277V
• Invoice Description (MFR): SMD 14 ROUND 2000LM UNV 5CCT 0-10V
• Frequency Rating: 60 Hz
• Lumens: 2000 Lumens
• Lamp Wattage: 26.5 Watt
• Item Name: LED Downlight
• Environmental Conditions: Damp And Wet Locations
• Dimmable: Yes
• CRI: 90.0000
• Construction: Stamped Aluminum Housing, Non Electrically Conductive Polycarbonate Frame
• Color Temperature: 2700K/3000K/3500K/4000K/5000K
• Standards: cULus Listed, Energy Star Certified, IES LM-79-08, LM-80-08 and TM-21-11 Tested, IECC, FCC, NFPA, NEC, RoHS Compliant
• Component Type: Complete Lighting
• Trim Size: 14 Inch
• Shade Type: High Impact Diffuse Polystyrene Lens
• Lamp Included: No
• Fixture Wattage: 26.5 Watt
• Driver Type: 120 - 277 Volt 60 Hz Constant Current, 0 - 10 Volt DC Low Voltage Dimmer
• Average Life: 50000 Hour
• Shape: Round
