Product Description
The HALO RLS6159FS1EWHDMR is a canless LED module with selectable color temperatures ranging from 2700K to 5000K. This RL slope ceiling direct mount 6-inch module is designed for easy installation and adjustable color temperature. It operates at 120 volts and consumes 19 watts, providing 1500 Lumens of brightness.

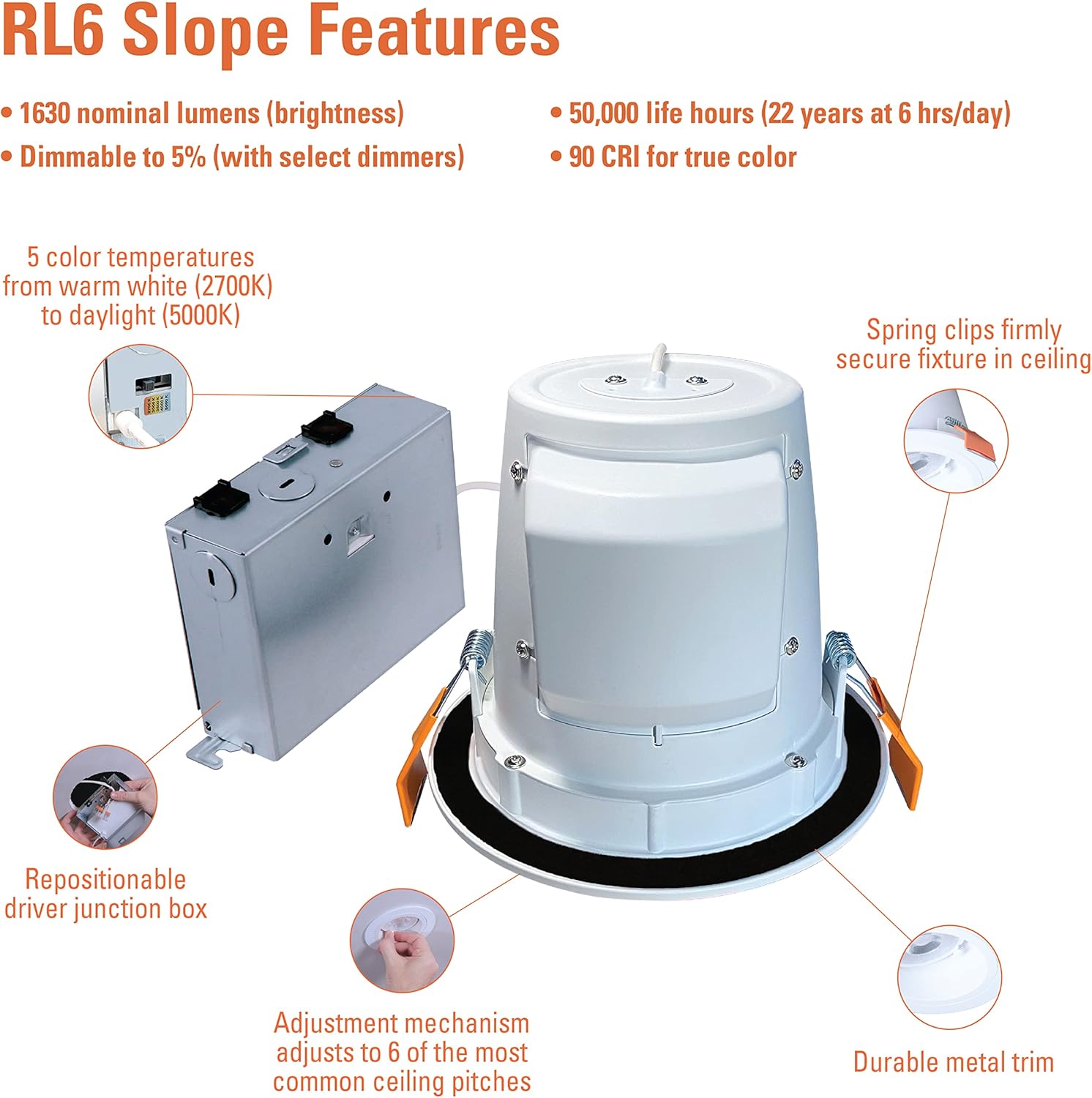

- Adjustable Color Temperature

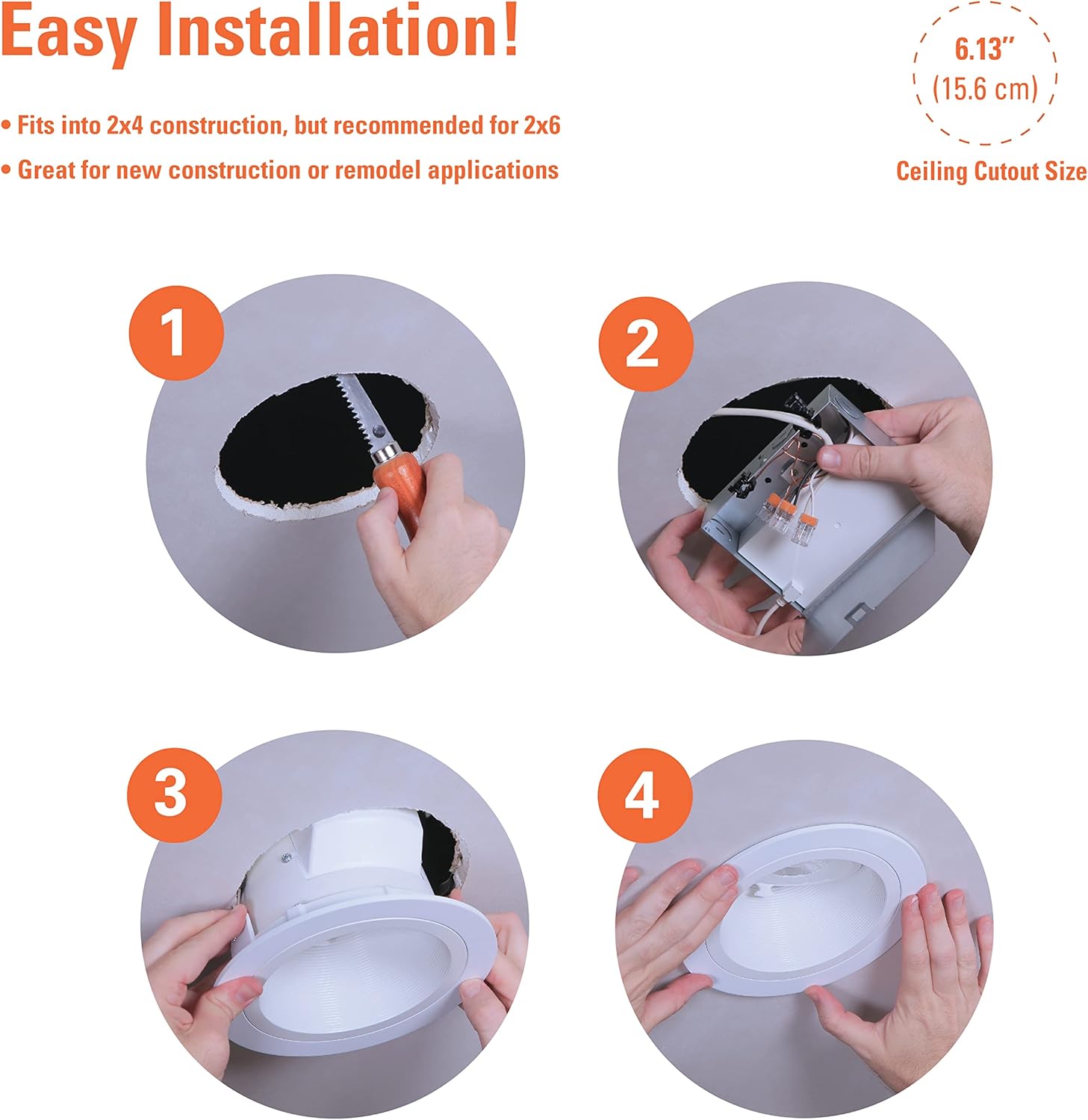

- Direct ceiling mount, no housing needed
- Selectable CCT: 2700K, 3000K, 3500K, 4000K, 5000K
Product Highlights
This canless LED module offers adjustable color temperatures and is designed for direct ceiling mounting, making it suitable for various home lighting applications.
Product Information
Standard Information
-
Brand: HALO
-
Manufacturer Part Number: RLS6159FS1EWHDMR
-
Country of Origin: China
Technical Specifications
-
Color: White
-
Shape: Round
-
Style: Modern
-
Pattern: Mount
-
Voltage: 120 Volts
-
Wattage: 19 watts
-
Material: Metal
-
Brightness: 1500 Lumen
-
Unit Count: 1.0 Count
-
Shade Color: White
-
Fixture Type: Non Removable
-
Power Source: Hardwired
-
Mounting Type: Ceiling Mount
-
Lighting Method: Downlight
-
Special Feature: Adjustable Color Temperature
-
Cutting Diameter: 6 Inches
-
Assembly Required: No
-
Light Source Type: LED
-
Assembled Diameter: 6 Inches
-
Light fixture form: Ceiling
-
Batteries Required?: No
-
Included Components: Bulb
-
Number of Light Sources: 1
-
Specific Uses For Product: Home
-
Size: 6 inch
-
Lumens: 1500 Lumens
-
Average Life: 50000 hours
-
Housing Finish: Matte White
-
Voltage Rating: 120V
-
Amperage Rating: 0.16 Amp
-
Fixture Wattage: 19 Watts
-
Housing Material: Canless Installation
-
Color Temperature: 2700K/3000K/3500K/4000K/5000K
-
Lighting Technology: LED
-
Color Rendering Index (CRI): 90 CRI
-
Frequency Rating: 60 Hz
-
Power Factor: >0.9
-
Mounting: Direct
-
Item Name: Slope Ceiling LED Downlight Module
-
Temperature Rating: -30 to 40 deg C
-
Finish: Matte White
-
Environmental Conditions: Damp Location
-
Dimmable: Yes
-
CRI: 90.0000
-
Construction: Die Formed Metal Driver/Junction Box
-
Standards: UL Certified, ASTM E283-04, Energy Star Certified, IES LM-80-08 and TM-21-11, FCC 47CFR Part 15, JA8, T21, RoHS Compliant
-
Component Type: Complete Lighting
-
Trim Size: 6 Inch
-
Lamp Type/Designation: LED
-
Lamp Included: No
-
Driver Type: LE and TE Phase Cut 5% Dimming
-
Ceiling Type: Insulated/Non-Insulated, Air-Tight
-
UNSPSC: 39111505
-
Manufacturer Part Number: RLS6159FS1EWHDMR
-
Manufacturer Name: Cooper Lighting
-
UPC: 08008319032
-
Energy Star Flag: No
-
Type: RL Slope
-
Brand: Halo
-
Width: 8.071 in
-
Height: 8.465 Inch
-
Length: 8.071 Inch
-
Amperage: 0.158
-
Applications: Lighting
-
Correlated Color Temp: 5000 K
-
Sub Brand: Market Pro
-
Product UPC: 08008319032
-
12-Digit UPC: 080083190324
-
ARRA Compliant: No
-
Catalog Number: RLS6159FS1EWHDMR
-
Made in USA: No
-
Special Features: Available in 4” and 6” aperture
-
Standard: AIR-TITE (TM) Certified ASTM E283;Energy Star Certified;EMI/RFI per FCC 47CFR Part 15 B;California Title 24;IECC Compliant;IC Rated;LM79 and/or LM80 Tested;Damp Locations Listed;RoHS Compliant;UL/cULus Listed
-
GTIN: 00080083190324
-
Item Type: RL Slope
-
Room Type: Bedroom
-
Indoor Outdoor Usage: Indoor
-
Control Method: Touch
-
Light Source: LED
-
Light Color: 2700K-5000K
-
Bulb Base: GU10
-
Switch Type: Touch
-
Water Resistance Level: Water Resistant
-
Efficiency: 78.95 lumens/watt
-
Installation Type: Flush Mount
-
Location: Damp rated
-
Nominal Size (in.): 6 in
