Product Description

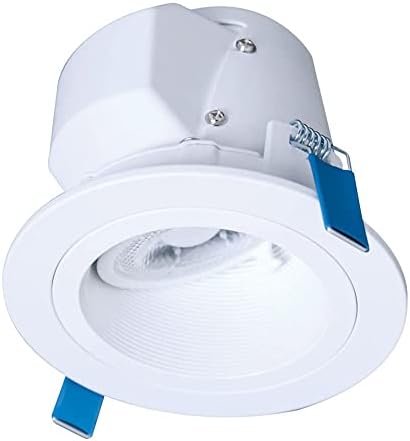

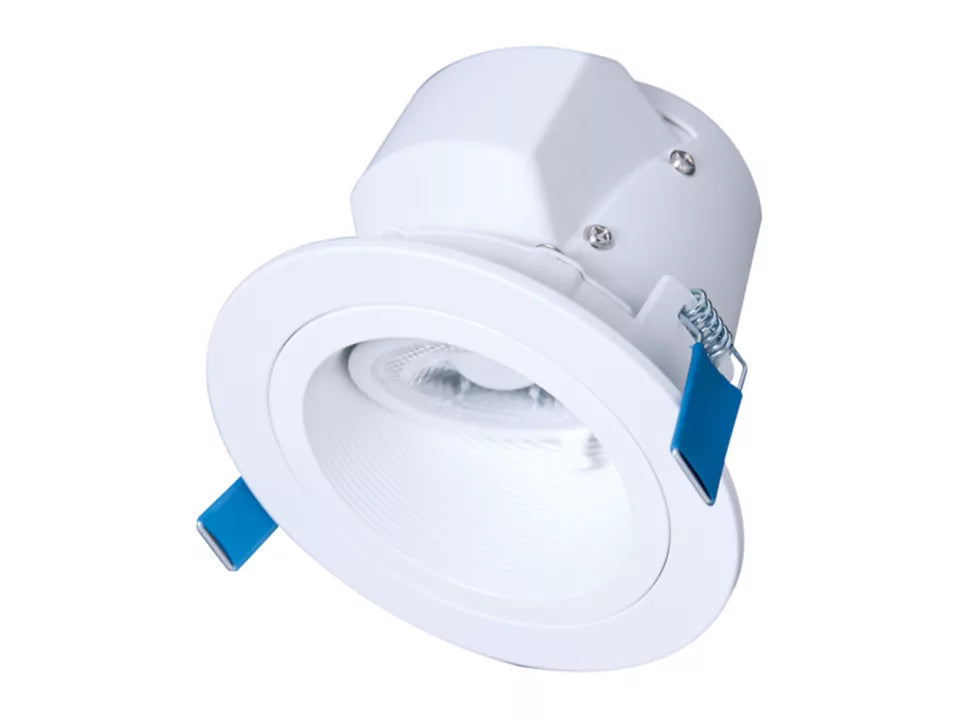

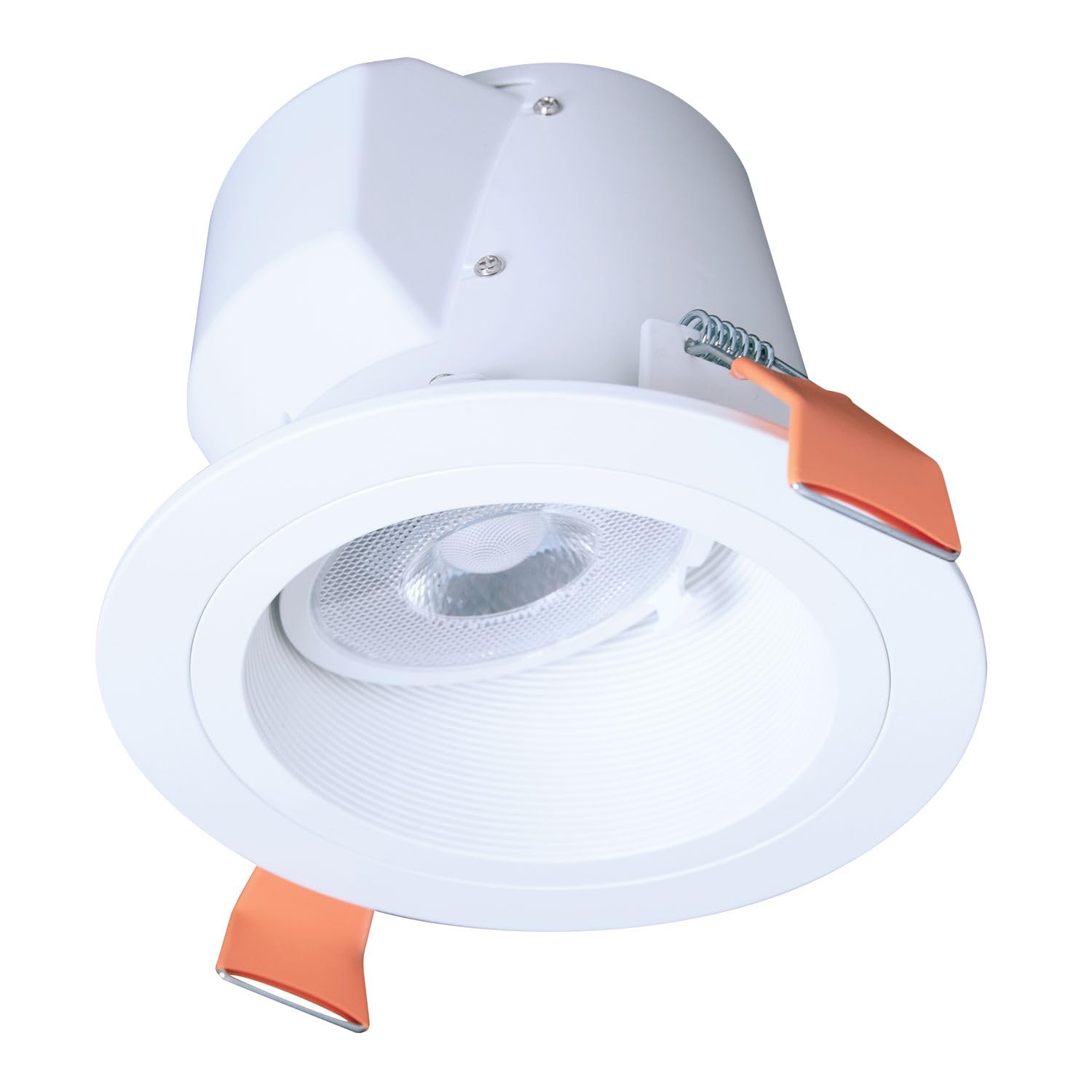

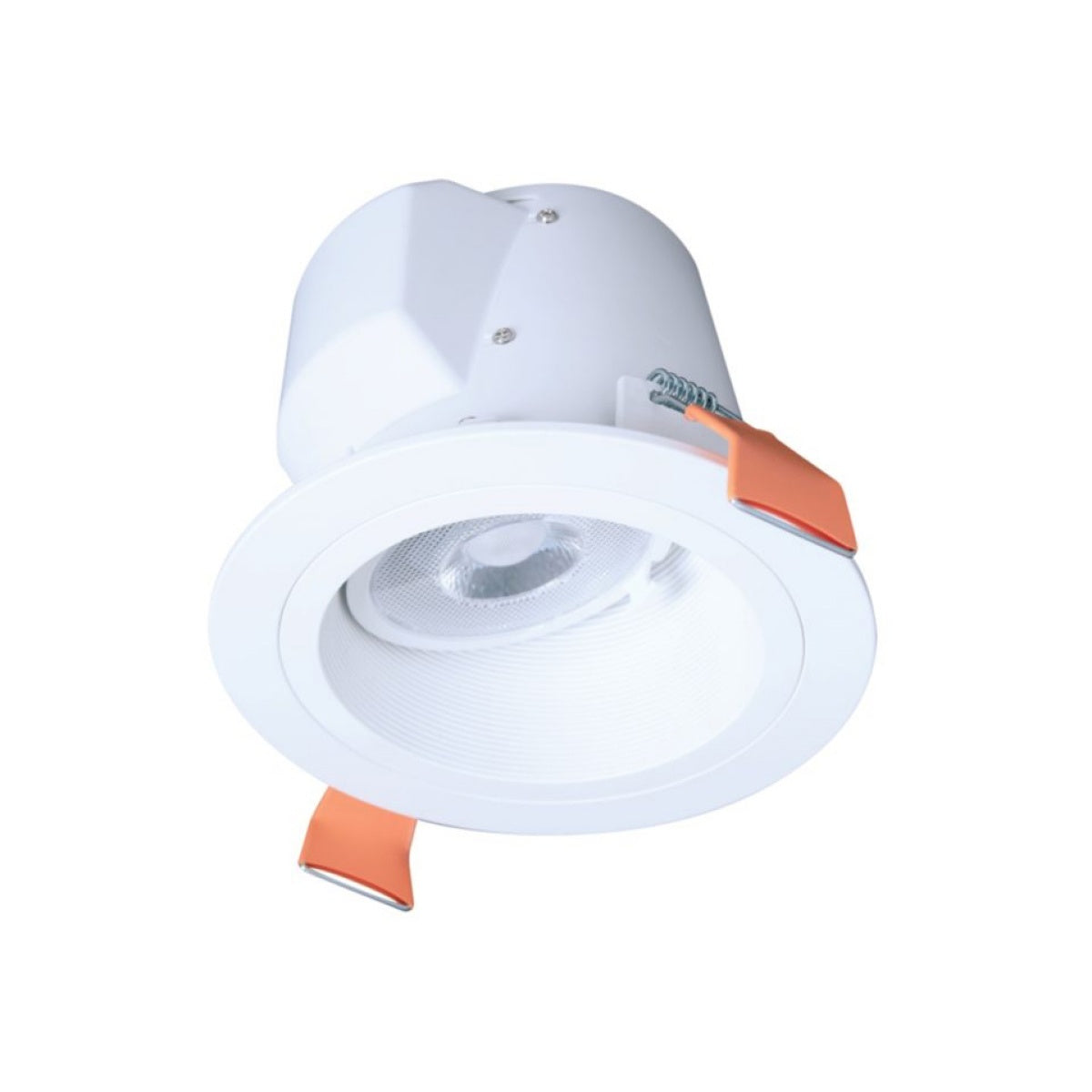

The HALO RLS4099FS1EWHDMR is a 4-inch RL slope ceiling direct mount module with a 900 lumen series output. This 11-watt LED downlight features a 90 CRI minimum and a 5-color selectable CCT, operating at 120V. It is designed with a matte white baffle for glare reduction and can be directly mounted.
- Adjusts from 9 to 45 degrees to match ceiling pitch.
- Features a baffle design to reduce glare and provide high-quality light.
- Offers 5-color selectable CCT: 2700K, 3000K, 3500K, 4000K, 5000K.
Product Highlights
This canless installation LED module is air-tite and IC rated, compatible with Halo new construction mounting frames, and suitable for sloped ceiling applications.
Product Information
Standard Information
-
Brand: HALO
-
Manufacturer Part Number: RLS4099FS1EWHDMR
-
Country of Origin: China
Technical Specifications
-
Type: RL Slope
-
Brand: Halo
-
Width: 5.315 in
-
Height: 5.96 Inch
-
Length: 6.693 Inch
-
Lumens: 1,027 Lumen
-
Voltage: 120 Volt
-
Wattage: 11 Watt
-
Amperage: 0.0916
-
Diameter: 4 Inch
-
Lamp Type: LED
-
Sub Brand: Market Pro
-
Product UPC: 08008319030
-
12-Digit UPC: 080083190300
-
Applications: Lighting
-
Mounting Type: Direct
-
ARRA Compliant: No
-
Color Temperature: 5000 K
-
Correlated Color Temp: 5000 K
-
Catalog Number: RLS4099FS1EWHDMR
-
Manufacturer: Cooper Lighting Solutions
-
Country of Origin: China
-
Made in USA: No
-
Application: Lighting
-
Special Features: Available in 4” and 6” aperture
-
Standard: AIR-TITE (TM) Certified ASTM E283;Energy Star Certified;EMI/RFI per FCC 47CFR Part 15 B;California Title 24;IECC Compliant;IC Rated;LM79 and/or LM80 Tested;Damp Locations Listed;RoHS Compliant;UL/cULus Listed
-
GTIN: 00080083190300
-
Item Type: RL Slope
-
Voltage Rating: 120V
-
Frequency Rating: 60 Hz
-
Power Factor: >0.9
-
Item Name: Slope Ceiling Downlight
-
Temperature Rating: -30 to 40 deg C
-
Dimmable: Yes
-
CRI: 93.0000
-
Amperage Rating: 93.76 Milli-Amp
-
Standards: UL Listed, NEMA LSD57-2013, ASTM-E283, NEC 410.16, FCC 47CFR Part 15, RoHS Compliant
-
Component Type: Complete Lighting
-
Trim Size: 4 Inch
-
Lamp Included: No
-
Fixture Wattage: 11.1 Watt
-
Driver Type: LE and TE Phase Cut 5% Dimming
-
Ceiling Type: Air-Tight
-
Average Life: 50000 Hour
-
Shape: Round
-
UNSPSC: 39111505
-
Manufacturer Part Number: RLS4099FS1EWHDMR
-
Manufacturer Name: Cooper Lighting
-
Energy Star Flag: No
-
Series: 900 lumen
-
Size: 4 inch
-
Model / MPN: RLS4099FS1EWHDMR
-
Product Type: LIGHT_FIXTURE
-
Number of Items: 1.0
-
Description: 4-inch RL Slope Ceiling direct mount module, 900 lumen series, 90 CRI min, 5-color selectable CCT, 120V, Matte white baffle, Direct mount
-
Color Temperature Max: 5000K
-
Product Weight: 1.54
-
Room Type: Bedroom
-
Specific Uses For Product: Home
-
Indoor Outdoor Usage: Indoor
-
Power Source: AC/DC
-
Other Special Features of the Product: Adjustable Color Temperature
-
Control Method: Touch
-
Light Source: LED
-
Number of Light Sources: 1
-
Light Color: White
-
Lighting Method: Downlight
-
Bulb Base: Flanged
-
Controller Type: Remote Control
-
Switch Type: Touch or Slide
-
Water Resistance Level: Water Resistant
-
Brightness: 900 Lumen
-
Efficiency: High Efficiency
-
Fixture Type: Non Removable
-
Installation Type: Direct Mount
-
Specification Met: ETL, Energy Star
-
Required Assembly: No
-
Mfg #: RLS4099FS1EWHDMR
-
Certifications: UL, RoHS
-
Watts: 11
-
Lumens/Watt: 93
-
Input Volts: 120V
-
Life (hrs): 50,000
-
Order Code: RLS4099FS1EWHDMR
-
Nominal Size (in.): 4 in
-
Volts AC: 120
-
Color Rendering Index (CRI): 90
