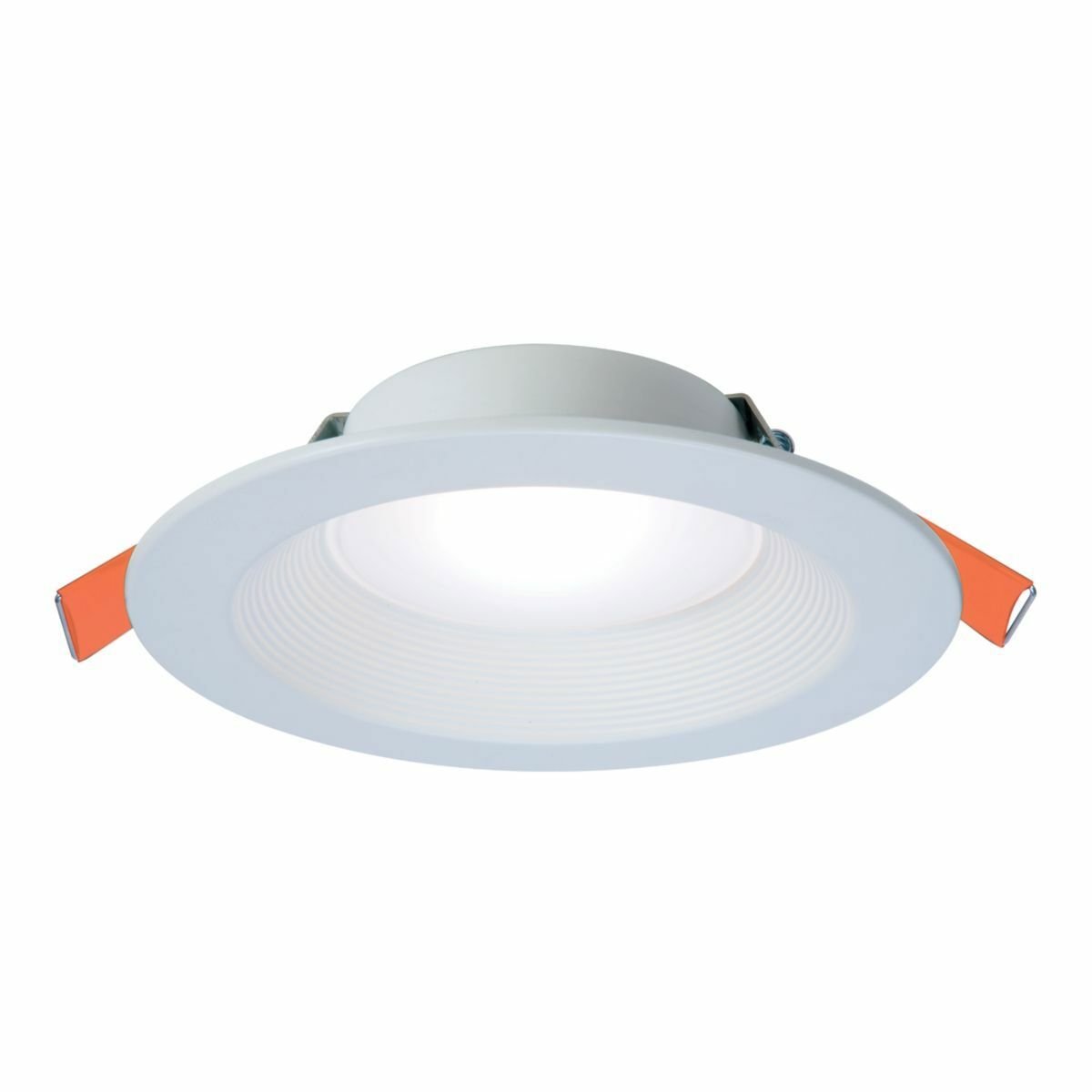

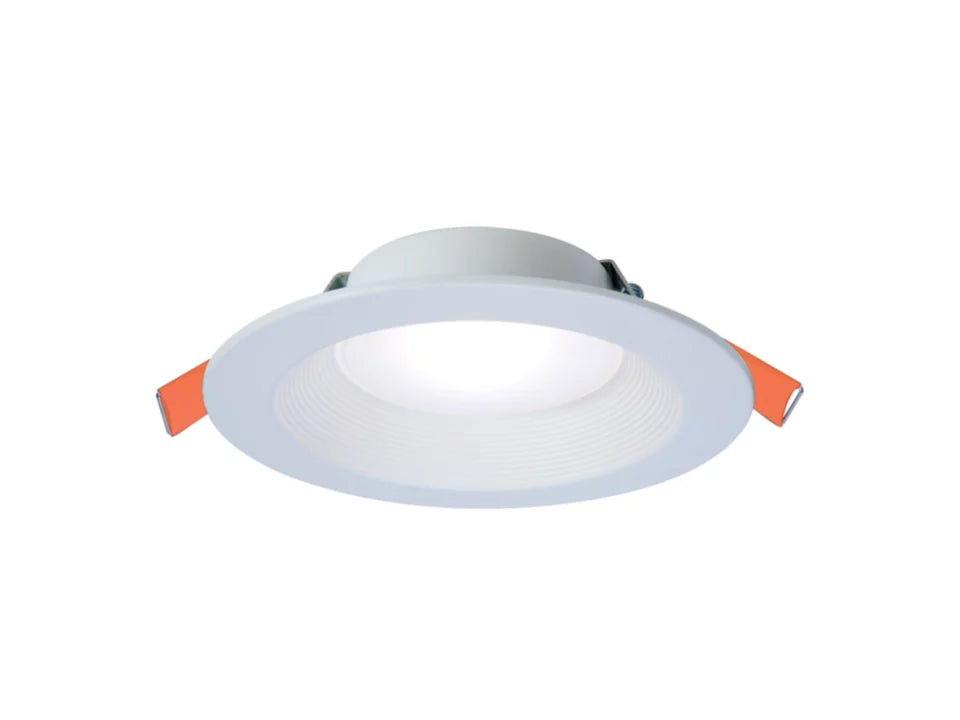

Halo RL6069FSD2W1EWHDM RL 6-inch Canless Recessed LED Downlight 600 Lumens

Product Description

The HALO RL6069FSD2W1EWHDM is a 6-inch canless recessed LED downlight with 600 selectable lumens (nominal) and a 90 CRI. It features selectable CCT with D2W option, operates at 120V 60Hz, and offers LE & TE phase cut 5% dimming. Designed with a matte white flange for direct mounting, this downlight is suitable for various lighting applications.

• Canless installation, no housing or j-box required
• 5 Color Selectable CCT: 2700K, 3000K, 3500K, 4000K, 5000K
• Dimmable down to 5% with select phase cut dimmers

Product Highlights

This 6-inch LED downlight offers selectable color temperatures and dimming capabilities, making it suitable for both retrofit and new construction projects.

Product Information

Standard Information

• Brand: HALO
• Manufacturer Part Number: RL6069FSD2W1EWHDM
• Country of Origin: China

Technical Specifications

• Lumens: 600 Lumen
• Voltage: 120 Volt
• Wattage: 7.2 watts
• Diameter: 6 Inch
• Sub Brand: RL Series
• Mounting Type: Ceiling Mount
• Color Temperature: 5000 K
• Correlated Color Temp: 5000 K
• Width: 3.54 in
• Height: 8.07 Inch
• Length: 8.07 Inch
• Catalog Number: RL6069FSD2W1EWHDM
• Manufacturer: Cooper Lighting Solutions
• Brand: Halo
• Country of Origin: China
• Application: Lighting
• Lamp Type: LED
• Special Features: Available in 4" and 6"
• Standard: Energy Star;California Title 20;California Title 24;RoHS Compliant;IECC Compliant
• UPC: 080083258963
• GTIN: 00080083258963
• Series: RL6
• Type: Baffle Trim
• Fixture Wattage: 7.5 W
• Voltage Rating: 120V 60 Hz
• Color Rendering Index (CRI): 90
• Aperture: 6 Inch
• Color Temperature Max: 5000K
• Room Type: Bedroom
• Specific Uses For Product: Living Room, Bedroom, Office, Kitchen, Bathroom
• Indoor Outdoor Usage: Indoor
• Power Source: Corded Electric
• Other Special Features of the Product: Dimmable
• Control Method: App
• Light Source: LED
• Number of Light Sources: 1
• Light Color: White
• Lighting Method: Downlight
• Bulb Base: GU10
• Controller Type: Remote Control
• Switch Type: Toggle
• Water Resistance Level: Water Resistant
• Brightness: 600 Lumen
• Efficiency: 80 lumens per watt
• Fixture Type: Non Removable
• Installation Type: Flush Mount
• Light Fixture Installation Location: ceiling
• Trade Size: 6IN
• Description: CPL RL6069FSD2W1EWHDM 6" CANLESSRECESSED DIRECT MOUNT DWNLT WHT600Lm 5-CCT W/D2W OPTION 90CRI 120V
• Location: Wet rated
• Dimmable: Yes
• Fits Housing Diameter: 6-in
