Product Description

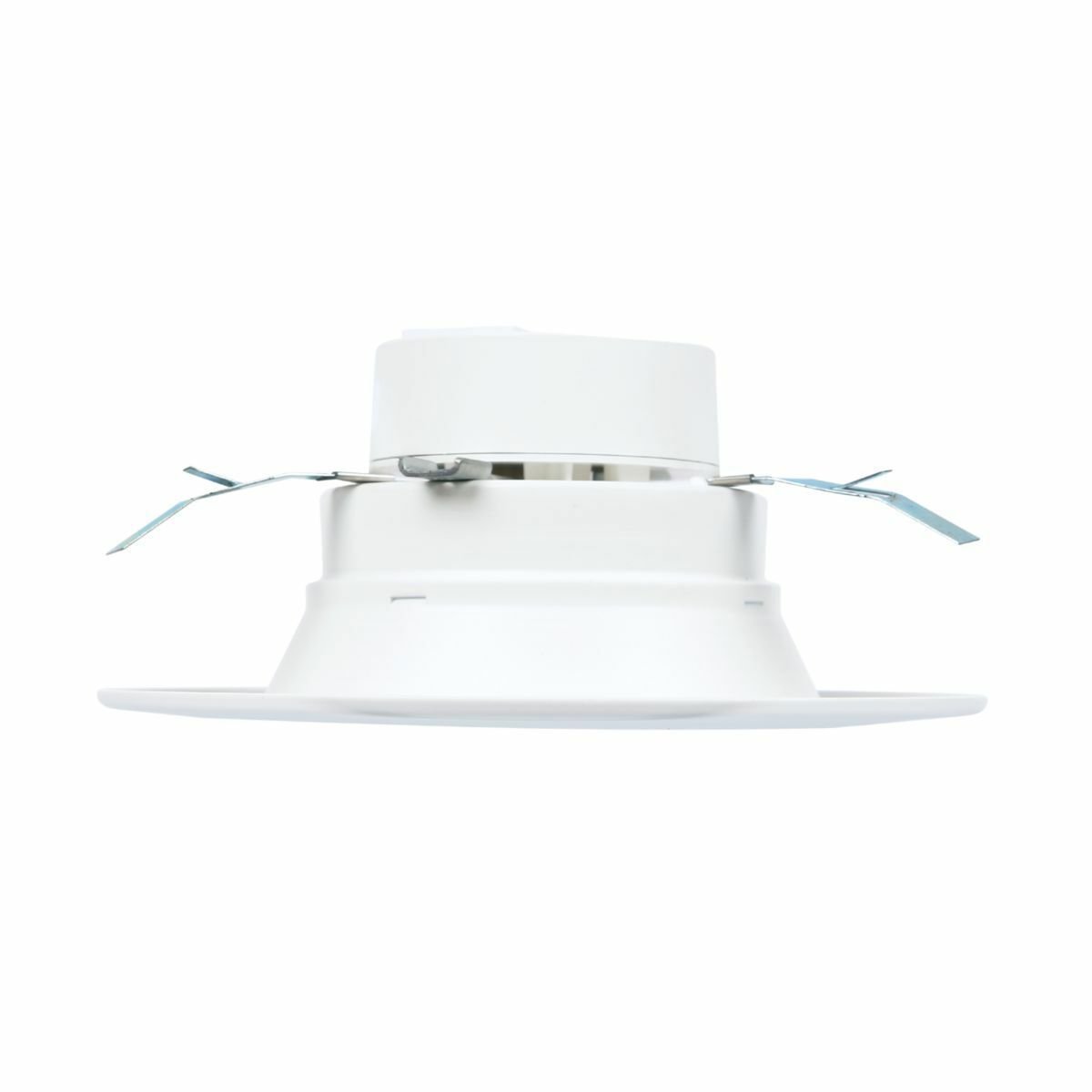

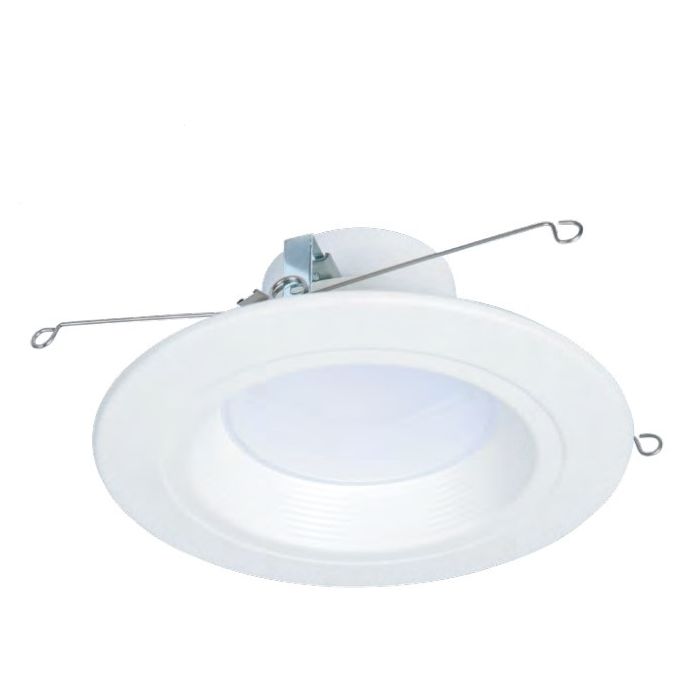

The Cooper Lighting Halo RL56LS9FSD2W1EWH 5 to 6 Inch Recessed LED Retrofit Module operates at 120V and 60Hz. It features selectable lumen (900 or 1200 Lumens) and CCT (2700k, 3000k, 3500k, 4000k, or 5000k with D2W option) and 90 CRI. The module's construction includes an LED array, heat sink, reflector, lens, baffle, and trim ring. It is dimmable down to 5%.
- Compatible with most recessed housings
- Features 5 Color Selectable CCT: 2700K, 3000K, 3500K, 4000K, 5000K
- Includes D2W- Dim-To-Warm Technology: use your dimmer to warm color temperature from 3000K-1500K
Product Highlights
This recessed LED retrofit module is suitable for new construction, remodel, and retrofit installations. It is air-tite, wet location listed and IC Rated.
Product Information
Standard Information
-
Brand: HALO
-
Manufacturer Part Number: RL56LS9FSD2W1EWH
-
Country of Origin: China
Technical Specifications
-
Type: Dimmable, Recessed, Selectable Lumen, Selectable CCT
-
Lumens: 900, 1200 Lumens
-
Series: Halo, RL Retrofit Series
-
Lamp Type: LED
-
Lens Type: Impact-resistant Polycarbonate
-
Manufacturer: Cooper Lighting Solutions
-
Voltage Rating: 120 V
-
Fixture Wattage: 6.8 W
-
Color Temperature: 2700K, 3000K, 3500K, 4000K, and 5000K CCT
-
Lighting Technology: LED
-
Color Rendering Index (CRI): 90 CRI
-
Mounting Type: Recessed
-
Correlated Color Temp: 5000 K
-
Catalog Number: RL56LS9FSD2W1EWH
-
Application: Lighting
-
Standard: RoHS Compliant;IECC Compliant;California Title 20;California Title 24;Energy Star;UL Certified - Damp Location
-
Item Type: RL56 SeleCCTable
-
Dimming: LE & TE phase cut 5%
-
Aperture: 5/6 Inch
-
Color Temperature Max: 5000K
-
Amperage Rating: 120mA
-
Nominal Size (in.): 5 in,6 in
-
Room Type: Bedroom, Home Office, Living Room
-
Specific Uses For Product: Home
-
Indoor Outdoor Usage: Indoor
-
Power Source: Corded Electric
-
Other Special Features of the Product: Adjustable Color Temperature, Dimmable, Energy Efficient
-
Control Method: App
-
Light Source: LED
-
Number of Light Sources: 1
-
Voltage: 120 Volts
-
Light Color: White
-
Lighting Method: Downlight
-
Bulb Base: GX5.3
-
Controller Type: Remote Control
-
Switch Type: Toggle
-
Water Resistance Level: Water Resistant
-
Brightness: 900-1200 Lumen
-
Efficiency: 106 lumens per watt
-
Fixture Type: Non Removable
-
Style: 5 Color Selectable + Dim to Warm
-
Style Name: 900/1200 Selectable Lumens
-
Light Fixture Form: Recessed
-
Theme: Lighting, Selectable Lumens, Selectable CCT
-
Shape: Round
-
Shade Color: White
-
Material Type: Aluminum
-
Finish Types: matte
-
Shade Material: Plastic
-
Mfg #: RL56LS9FSD2W1EWH
-
Certifications: Air Tight, Damp Rated, EnergyStar, Title20, Title24, UL, Wet Location, RoHS
-
Watts: 14.3
-
Input Volts: 120V
-
Dimmable: Yes
-
Order Code: RL56LS9FSD2W1EWH
-
Location: Wet rated
-
Fits Housing Diameter: 5-in or 6-in
-
Condition: New
-
Trim Type: Baffle
-
IP Rating: IP44
-
Includes: LED Array, Heat Sink, Reflector, Lens, Baffle and Trim Ring
