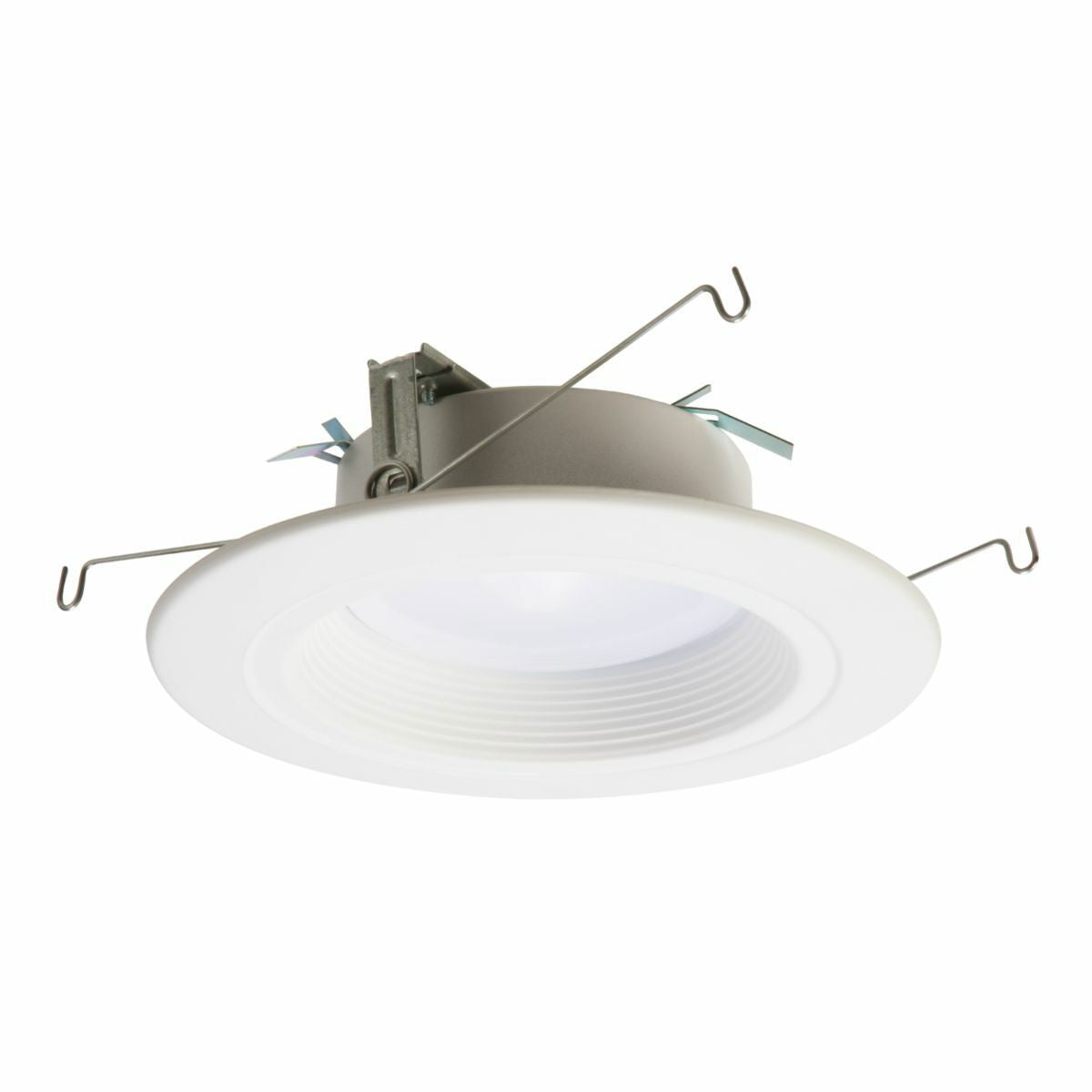

Halo RL56069S1EWHR 5/6 inches Retrofit Baffle-Trim LED Module 8 W

Product Description

The Halo RL56069S1EWHR SeleCCTable™ is a complete LED Baffle-Trim Module for 5 inch and 6 inch aperture recessed downlights, suitable for new construction, remodel, and retrofit installation. The CCT selectable switch allows users to choose between five different color temperatures. The lens provides uniform illumination and wet location listing. Precision construction makes any housing AIR-TITE for added savings and code compliance.

• Field-selectable color temperatures LED downlight with baffle trim
• Use with 5" and 6" housings with screwbase adapter included
• AIR-TITE construction
• 5 selectable color temperatures: 2700K, 3000K, 3500K, 4000K, 5000K CCT

Product Highlights

Complete LED Baffle-Trim Module suitable for new construction, remodel, and retrofit installation. Features a CCT selectable switch and AIR-TITE construction.

Product Information

Standard Information

• Brand: HALO
• Manufacturer Part Number: RL56069S1EWHR
• Country of Origin: China

Technical Specifications

• Type: RL56 LED
• Brand: Halo
• Width: 2.938 in
• Finish: White
• Height: 8-1/8 Inch
• Length: 7.438 Inch
• Lumens: 1,200 Lumen
• Voltage: 120 Volt
• Wattage: 8 Watt
• Amperage: 150m Amp
• Diameter: 5/6 Inch
• Lamp Type: LED
• Sub Brand: RL56 LED 5"/6" Retrofit SeleCCTable?? Downlight
• Applications: Lighting
• Mounting Type: Recessed
• Color Temperature: 5000 K
• Color Rendering Index: 90
• Correlated Color Temp: 2,700 K
• Standard: AIR-TITE (TM) Certified ASTM E283;RoHS Compliant;UL Listed - Wet Location;UL Listed - Damp Location;Energy Star
• UPC: 080083818525
• GTIN: 00080083818525
• Item Type: RL56 LED
• Voltage Rating: 120V
• Special Features: Field-selectable color temperatures LED downlight with baffle trim
• Average Life: 70, 000 hr
• Current Rating: 0.15 A
• Dimmable: Dimmable
• Lamp Base: E26 Edison Screw
• Material: Metal
• Trim Type: Baffle
