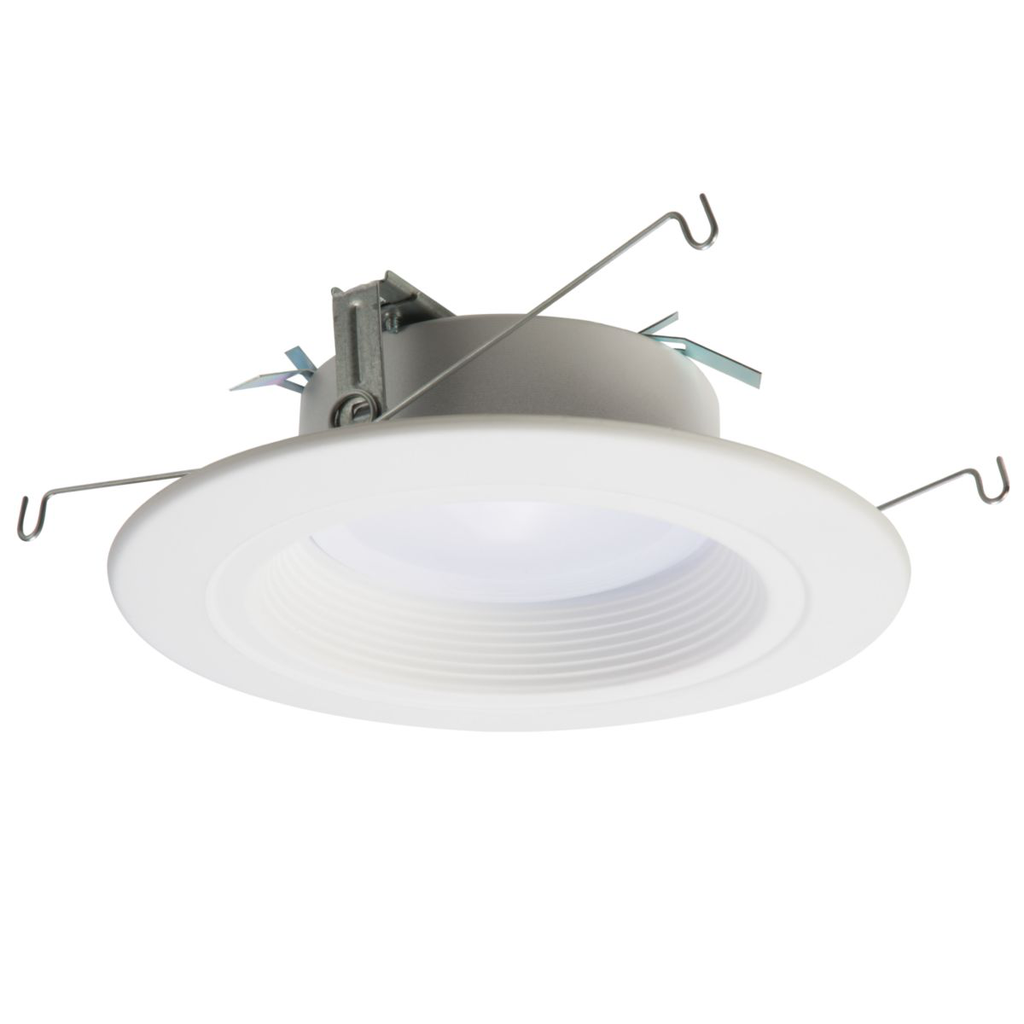

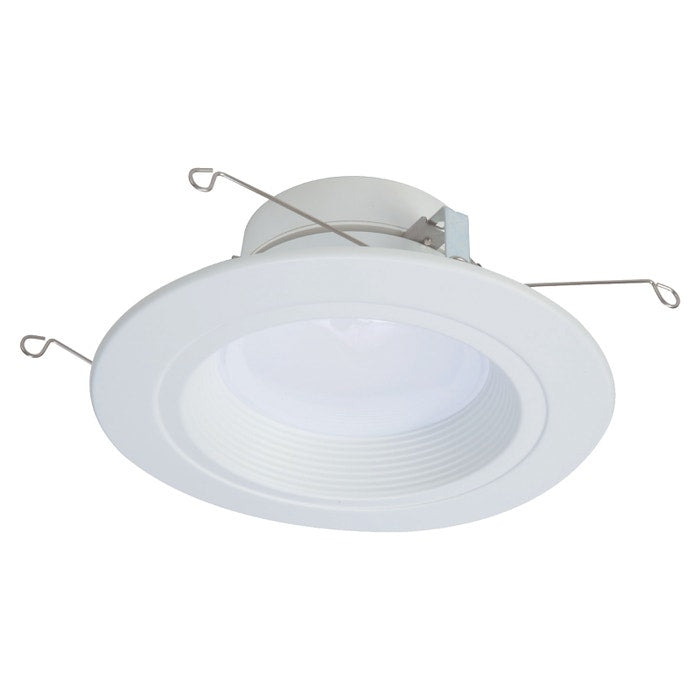

Halo RL56069BLE40AWHR Module LED Retrofit LED 10W

Product Description

The HALO RL56069BLE40AWHR retrofit LED module is an all-purpose lighting solution from Cooper Lighting Solutions. Operating at 120 V and 10 W, this LED lamp provides 600 Lumens with an output of 87.5 Lumens/W. It features wireless On/Off, dimming to 5%, and white tuning (2700 to 5000 K) when paired with the Halo Home mobile app.

• Wireless control via Halo Home Bluetooth mesh; no bridge/internet needed.
• Offers On/Off functionality and dimming down to 5%.
• Designed for ceiling mounting and compatible with 5 or 6 inch recessed housings.

Product Highlights

This Halo LED module has a 50000-hour average life, a 5000 K color temperature, and a 90 CRI. Its precise design ensures housings are Air-Tite to meet code and save energy.

Product Information

Standard Information

• Brand: HALO
• Manufacturer Part Number: RL56069BLE40AWHR
• Country of Origin: China

Technical Specifications

• Type: All-Purpose
• Lumens: 600 Lumens
• Series: RL56
• Lamp Type: LED
• Lens Type: Regressed Polycarbonate
• Average Life: 50000 hr
• Ballast Type: Dimmable
• Light Output: 87.5 Lumens/W
• Manufacturer: Cooper Lighting Solutions
• Mounting Type: Ceiling
• Voltage Rating: 120 V
• Amperage Rating: 0.082 A
• Fixture Wattage: 10 W
• Color Temperature: 5000 K
• Recessed Trim Type: Regressed Baffle
• Color Rendering Index (CRI): 90
• Wattage: 9.7 Watt
• Sub Brand: HALO Home Smart Recessed Downlight - RL56
• Applications: Lighting
• ARRA Compliant: No
• Correlated Color Temp: 5000 K
• Model / MPN: RL56069BLE40AWHR
• Feature: Diffusing, impact-resistant polycarbonate lens
• Ceiling Opening Size: 5 6 in
• Ceiling Type: Insulated Non-Insulated
• Dimmable: Dimmable
• Driver Type: Smart LED
• Housing Type: New Construction Remodel Retrofit
• Insulation Type: IC Non-IC
• Lamp Base: E26 Adapter
• Lamp Wattage: 7.6 W
• Temperature Rating: -40 to 40 deg C
• Style: Modern
• Sensor Type: Light
• Room: Study, Bathroom, Home Office/Study, Utility/Laundry Room, Attic, Entryway, Bar, Foyer, Garage, Kitchen, Bedroom, Living Room, Dining Room
• Lighting Technology: LED
• Number of Settings: 6
• Installation Area: Indoor
• IP Rating: IP20
• Model: 2700k-5000K
• Power Consumption: 4 W or Less
