Product Description

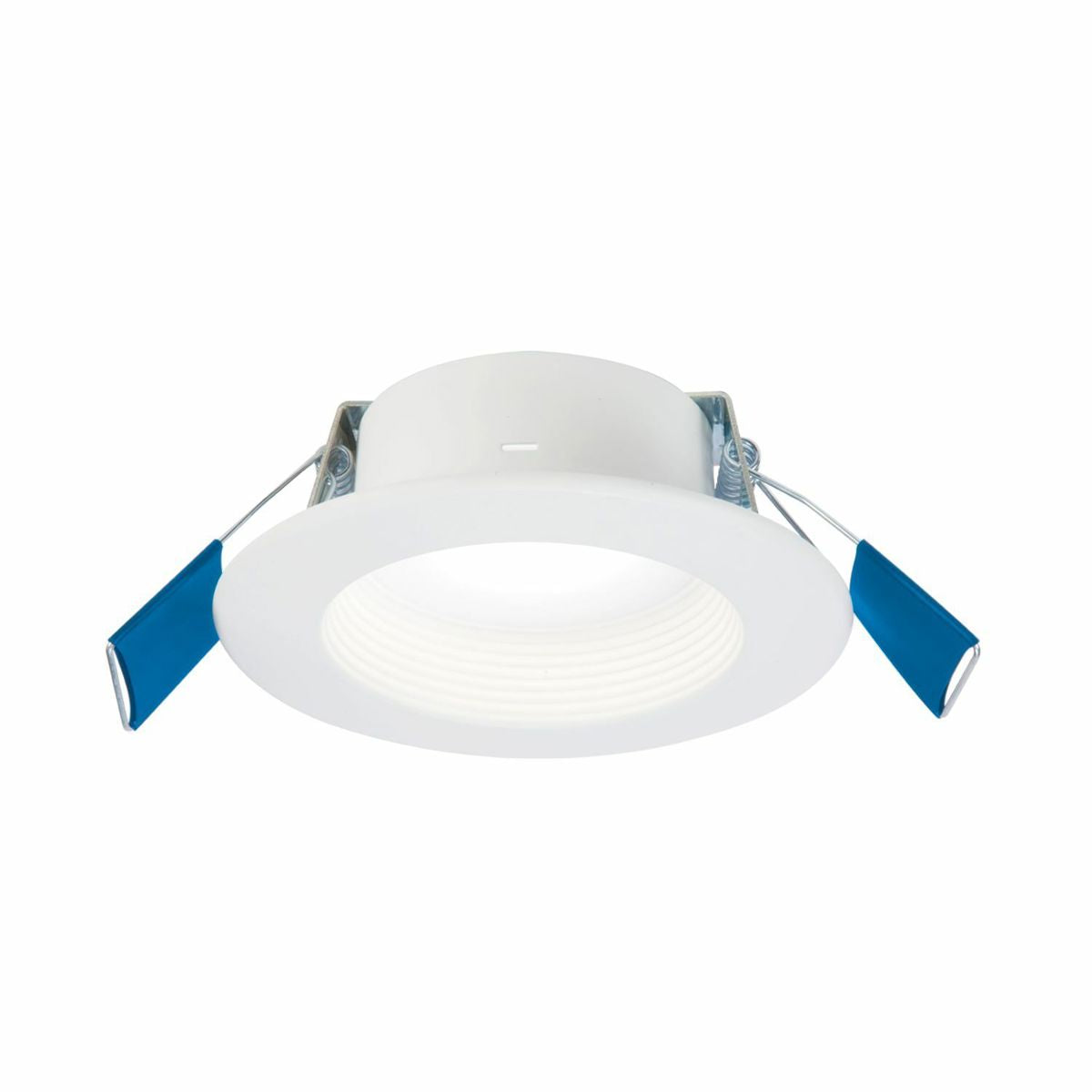

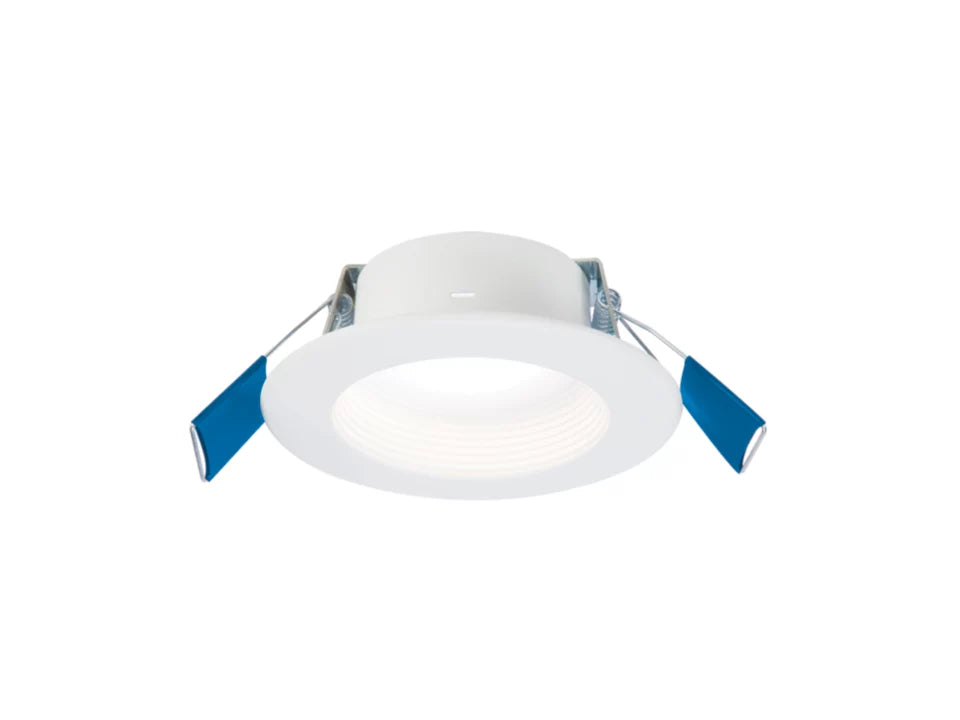

The Halo RL4LS9FSD2W1EWHDM RL direct mount canless recessed LED downlight is a 4" light with selectable lumen (600 or 900 Lumen) and selectable CCT (2700K, 3000K, 3500K, 4000K or 5000K CCT). It operates at 120V and 11.5 W, and dims to 5% with LE & TE phase cut dimming. Ideal for general area downlighting in retrofit, remodel, or new construction applications.
- Available in 4" and 6"
- Baffle and LED Trim with regressed lens
- Canless installation
Product Highlights
This LED downlight features selectable lumens and CCT, dim-to-warm technology, and is air-tite, wet location listed, and IC rated.
Product Information
Standard Information
-
Brand: HALO
-
Manufacturer Part Number: RL4LS9FSD2W1EWHDM
-
Country of Origin: China
Technical Specifications
-
Type: Canless Recessed LED Downlight
-
Lumens: Selectable, 600, 900 Lumens
-
Series: RL
-
Lamp Type: LED
-
Lens Type: Regressed Impact-Resistant Polycarbonate Lens
-
Manufacturer: Cooper Lighting Solutions
-
Mounting Type: Direct Mount
-
Enclosure Type: Air-tite, wet location listed, IC Rated
-
Voltage Rating: 120V 60 Hz
-
Fixture Wattage: 11.5 W
-
Color Temperature: Selectable, 2700K, 3000K, 3500K, 4000K, 5000K
-
Lighting Technology: LED
-
Color Rendering Index (CRI): 90 CRI
-
Voltage: 120 Volt
-
Wattage: 11.5 Watt
-
Sub Brand: Market Pro
-
Product UPC: 08008325890
-
12-Digit UPC: 080083258901
-
ARRA Compliant: No
-
Correlated Color Temp: 5000 K
-
Country of Origin: China
-
Catalog Number: RL4LS9FSD2W1EWHDM
-
Mounting: Direct
-
Special Features: Available in 4" and 6"
-
Standard: Energy Star;California Title 20;California Title 24;IECC Compliant;RoHS Compliant
-
UPC: 080083258901
-
GTIN: 00080083258901
-
Fixture Type: Downlight
-
Brand Name: Halo
-
Trade Size: 4IN
-
Application: Lighting
-
Description: CPL RL4LS9FSD2W1EWHDM 4" CANLESSLED RECESSED DWNLT 600Lm/900Lm5-CCT W/D2W 120V WHT DIRECT MOUNT
-
Stripped Catalog Number: RL4LS9FSD2W1EWHDM
-
Catalog Description (MFR): 4-inch canless recessed LED downlight, 600/900 selectable lumens (nominal), 90 CRI, selectable CCT with D2W option, 120V 60Hz, LE & TE phase cut 5% dimming, matte white flange, direct mount
-
Invoice Description (MFR): 4" RL, 600/900LM, 5CCT, D2W, 120V, DM
-
Buy American Act (BAA) Compliant: C
-
Concatenated Invoice Description: 4" RL, 600/900LM, 5CCT, D2W, 120V, DM
-
American Recovery and Reinvestment Act (ARRA) Compliant: C
-
Family: RL Recessed Canless LED Downlights – Flip-N-Klip™ Springs
-
Amperage Rating: N/A
-
Aperture: 4 Inch
-
Color Temperature Max: 5000K
-
ARRA: No
-
Location: Wet rated
-
Power Source: Hardwired
-
Dimmable: Yes
-
Fits Housing Diameter: 4-in
-
Nominal Size (in.): 4 in
-
Room Type: Bathroom, Bedroom, Entryway, Game Room, Kitchen, Laundry Room, Living Room
-
Specific Uses For Product: Home, Bedroom, Living Room, Office
-
Indoor Outdoor Usage: Indoor
-
Light Source: LED
-
Number of Light Sources: 1
-
Light Color: Warm White to Cool White
-
Lighting Method: Downlight
-
Installation Type: Flush Mount
-
Brightness: 600-900 Lumen
-
Efficiency: 82.567 lumens/watt
-
Light Fixture Installation Location: ceiling
