Product Description

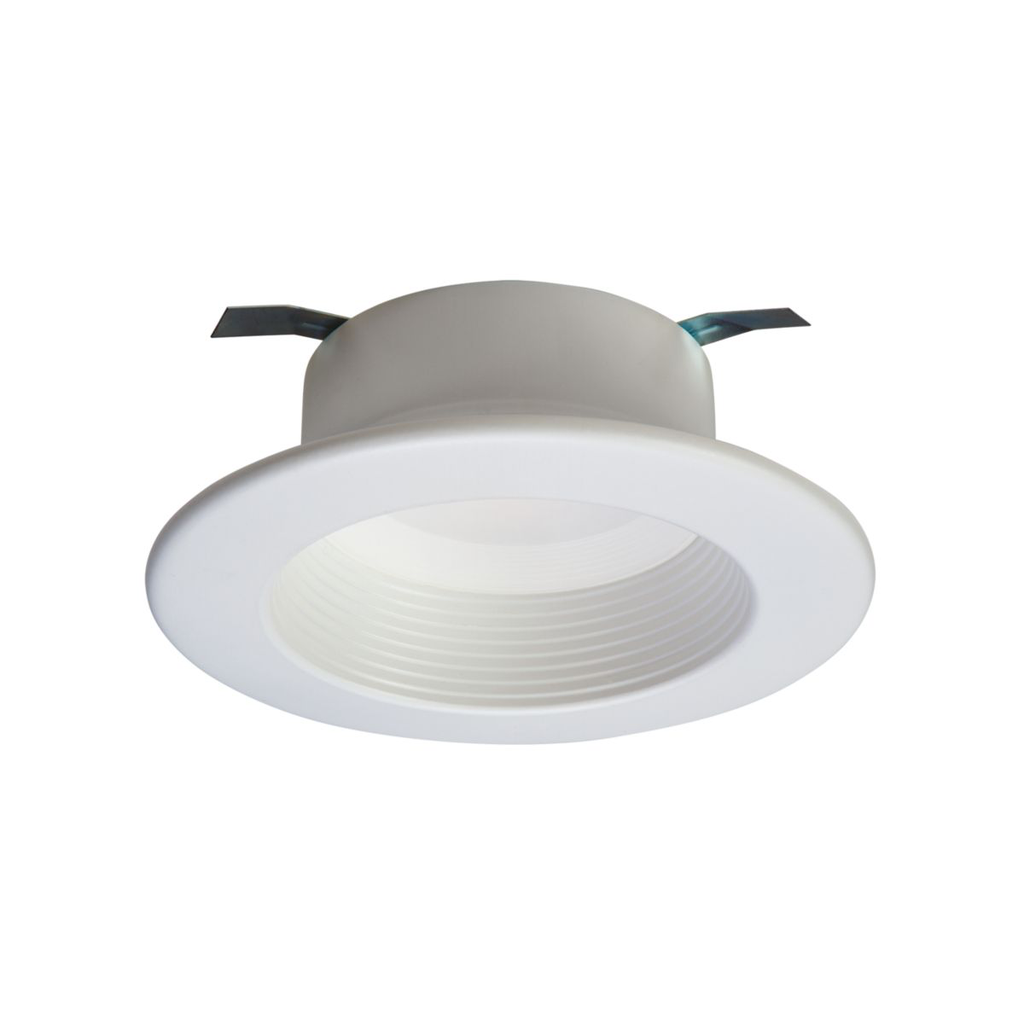

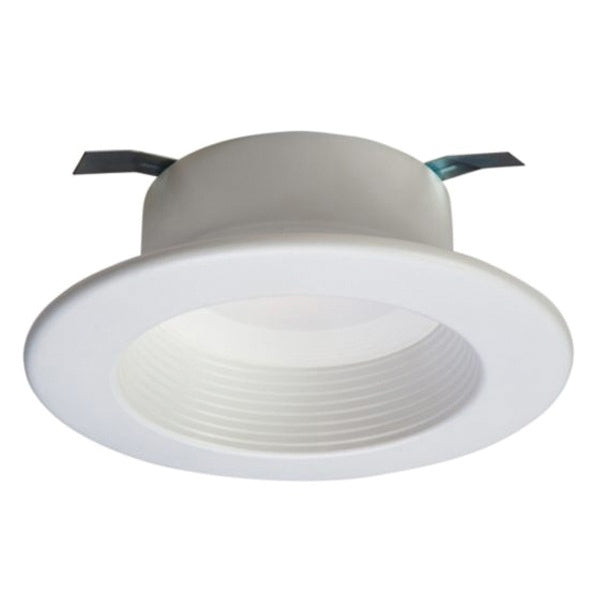

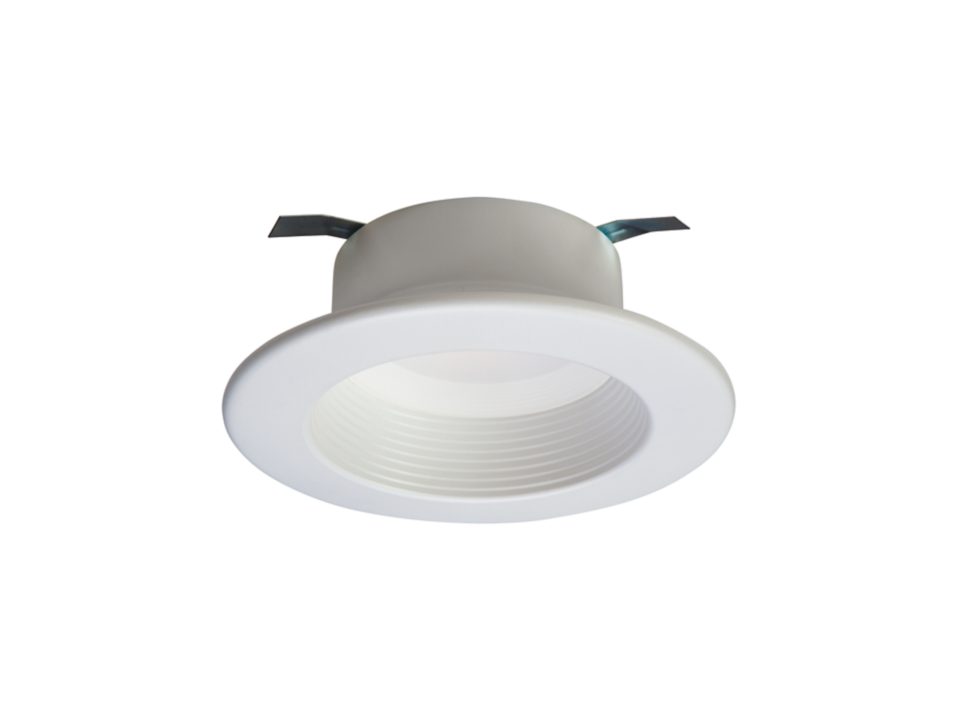

The HALO RL4LS9FSD2W1EWH is a 4 inch recessed LED retrofit module. It features selectable lumen (600 to 900 Lumens) and CCT (2700k, 3000k, 3500k, 4000k, or 5000k with D2W option). This 120V, 11W, 60Hz module has a 90 CRI and dims down to 5%. It is suitable for new construction or remodel housings.
- Compatible with most recessed housings
- 5 Color Selectable CCT: 2700K, 3000K, 3500K, 4000K, 5000K
- Dimmable down to 5% with select phase cut dimmers
Product Highlights
This LED recessed trim is air-tite, wet location listed and IC Rated. It can be installed in a canless or retrofit solution.
Product Information
Standard Information
-
Brand: HALO
-
Manufacturer Part Number: RL4LS9FSD2W1EWH
-
Country of Origin: China
Technical Specifications
-
Type: Dimmable, Recessed, Selectable Lumen, Selectable CCT
-
Lumens: Selectable, 600, 900 Lumens
-
Series: Halo, RL Retrofit Series
-
Lamp Type: LED
-
Lens Type: Impact-resistant Polycarbonate
-
Manufacturer: Cooper Lighting Solutions
-
Voltage Rating: 120 V
-
Fixture Wattage: 11 W
-
Color Temperature: Selectable, D2W, 2700K, 3000K, 3500K, 4000K, and 5000K CCT
-
Lighting Technology: LED
-
Color Rendering Index (CRI): 90 CRI
-
Mounting Type: Ceiling Mount
-
Correlated Color Temp: 5000 K
-
Frequency Rating: 60 Hz
-
Mounting: Ceiling
-
Includes: LED Array, Heat Sink, Reflector, Lens, Baffle and Trim Ring
-
Finish: Matte White
-
Environmental Conditions: Damp and Wet Location
-
Dimmable: Yes
-
Degree of Protection: IP44
-
Amperage Rating: 95 Milli-Amp
-
Standards: UL Listed, ASTM E283, NEC 410.16, FCC 47CFR Part 15, RoHS Compliant, IES LM-79-08, LM-80-08 and TM-21-11, Energy Star Listed
-
Component Type: Complete Lighting
-
Trim Size: 4 Inch
-
Driver Type: 120 Volt 60 Hz LE And TE Phase Cut 5% Dimming
-
Collection: seleCCTable™
-
Ceiling Type: Air-Tight
-
Shape: Round
-
Manufacturer Part Number: RL4LS9FSD2W1EWH
-
Manufacturer Name: Cooper Lighting
-
Brand: HALO
-
CCT: Selectable CCT with D2W option
-
Dimming: Triac Dimmable to 5%
-
Size: 4″
-
Standard: UL Certified - Damp Location;RoHS Compliant;IECC Compliant;California Title 20;California Title 24;Energy Star
-
Trade Size: 4IN
-
Application: Lighting
-
Fixture Type: Non Removable
-
Special Features: Available in 4" and 6"
-
Stripped Catalog Number: RL4LS9FSD2W1EWH
-
Catalog Description (MFR): 4-inch recessed LED retrofit module, 600/900 selectable lumens (nominal), 90 CRI, selectable CCT with D2W option, 120V 60Hz, LE & TE phase cut 5% dimming, matte white flange.
-
Invoice Description (MFR): 4" RL, 600/900LM, 5CCT, D2W, 120V
-
Buy American Act (BAA) Compliant: C
-
Concatenated Invoice Description: 4" RL, 600/900LM, 5CCT, D2W, 120V
-
American Recovery and Reinvestment Act (ARRA) Compliant: C
-
Aperture: 4 Inch
-
Color Temperature Max: 5000K
-
Wattage: 10.9 watts
-
Nominal Size (in.): 4 in
-
Color: 5 Color Selectable + Dim to Warm
-
Material: Aluminum
-
Style: 600/900 Selectable Lumens
-
Light fixture form: Recessed
-
Room Type: Bedroom
-
Specific Uses For Product: Home
-
Indoor Outdoor Usage: Indoor
-
Power Source: Corded Electric
-
Other Special Features of the Product: Adjustable Color Temperature, Dim to Warm, Lumen Selectable, Dimmable, Energy Efficient
-
Control Method: App
-
Light Source: LED
-
Number of Light Sources: 1
-
Voltage: 120 Volts
-
Light Color: Cool White and other shades of white from 2700K to 5000K
-
Lighting Method: Downlight
-
Controller Type: Remote Control
-
Switch Type: Touch, Rotary, Slide, or Rocker
-
Water Resistance Level: Water Resistant
-
Brightness: 600/900 Lumen
-
Efficiency: 55.05 to 82.57 lumens per watt
-
Style Name: 600/900 Selectable Lumens
-
Shade Color: White
-
Material Type: Aluminum
-
Finish Types: matte
-
Shade Material: Aluminum
-
Model Number: RL4LS9FSD2W1EWH
-
Model Name: RL Retrofit Series
-
Item Type Name: Integrated LED recessed Trim
-
Installation Type: Flush Mount
-
Model: RL4LS9FSD2W1EWH
-
Trim Style: White Baffle
-
Lumen Output: Selectable 600 lm / 900 lm
-
CRI: 90+
-
Installation: Retrofit into 4″ housings
-
Additional Information: Ideal for energy-conscious residential and commercial applications Offers field-selectable lumen output and color temperature Maintenance-free, long-life LED solution
