Product Description

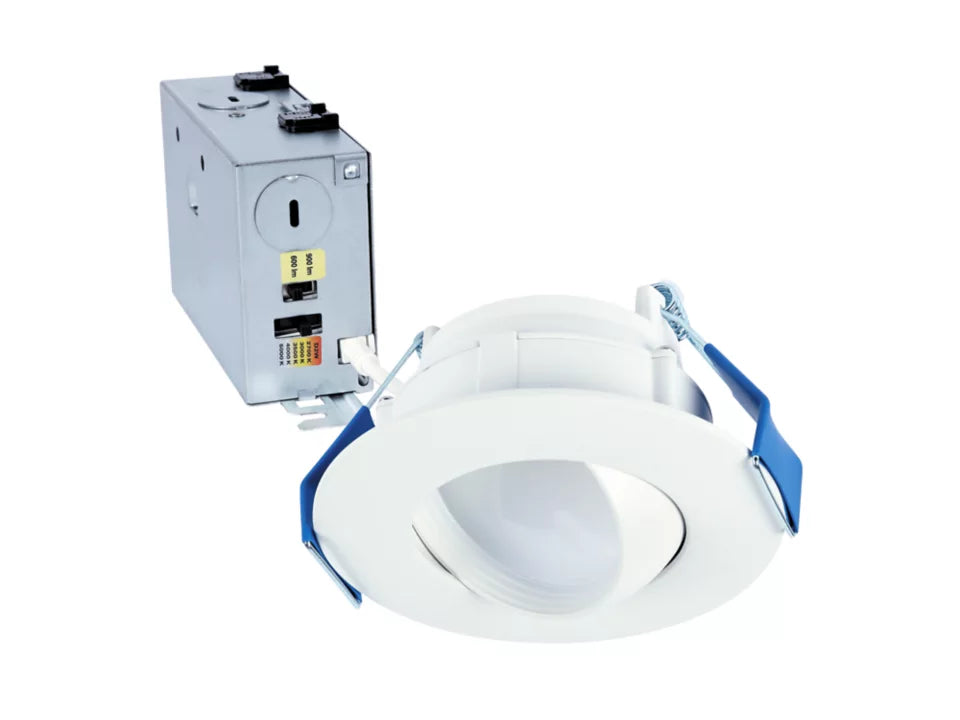

The HALO RA4LS9FSD2W1EWHDM is a 4" LED adjustable baffle direct mount downlight with 5-CCT and dim-to-warm functionality, operating at 120V with 0-10V dimming and a selectable 600/900 lumen output. This canless LED downlight is designed for direct installation into drywall without needing a housing or junction box. It features selectable color temperatures and adjustable brightness.
- Adjustable canless LED downlight
- Selectable lumens: 600/900
- 6-color selectable CCT plus dim to warm option
Product Highlights
This 4-inch adjustable canless LED downlight offers selectable lumens and color temperatures, dim-to-warm functionality, and easy installation.
Product Information
Standard Information
-
Brand: HALO
-
Manufacturer Part Number: RA4LS9FSD2W1EWHDM
-
Country of Origin: CN
Technical Specifications
-
MPN: RA4LS9FSD2W1EWHDM
-
Brand: Halo
-
Type: 4" RA Retrofit Series
-
Finish: Matte White
-
Wattage: 8.4 watts
-
Mounting: Recessed
-
Standard: Energy Star Certified;IECC Compliant;Title 24 Compliant;UL Listed;RoHS Compliant;IC Rated
-
Lamp Type: LED
-
Sub Brand: RA-DM Baffle Adjustable Canless LED Downlight
-
Trade Size: 4IN
-
Application: Lighting
-
Description: CPL RA4LS9FSD2W1EWHDM 4" ADJBAFFLE CANLESS LED DWNLT DIRECTMOUNT 5-CCT + D2W 600Lm/900LmSELECT 120V WHT
-
Voltage Rating: 120V
-
Amperage Rating: 0.07 A
-
Special Features: 4" and 6" available
-
Stripped Catalog Number: RA4LS9FSD2W1EWHDM
-
Catalog Description (MFR): 4-inch adjustable canless LED downlight, 600/900 selectable lumens, 6-color selectable CCT plus dim to warm option, 120V 60Hz, LE &TE phase cute 5% dimming, Matte White.
-
Invoice Description (MFR): 4" RA, 600/900LM, 5CCT, D2W, 120V, DM
-
Size: 4 in
-
Series: RA4
-
Lumens: Selectable
-
Color Temperature: Selectable
-
Aperture: 4 Inch
-
Color Temperature Max: 5000K
-
Room Type: Bedroom, Home Office, Kitchen, Living Room
-
Specific Uses For Product: Home
-
Indoor Outdoor Usage: Indoor
-
Power Source: Corded Electric
-
Other Special Features of the Product: Dimmable
-
Light Source: LED
-
Number of Light Sources: 1
-
Light Color: White
-
Lighting Method: Downlight
-
Controller Type: Remote Control
-
Switch Type: Temperature Switch
-
Water Resistance Level: Water Resistant
-
Brightness: 600 Lumen
-
Efficiency: 71.43 lumens per watt
-
Mounting Type: Ceiling Mount
-
Fixture Type: Removable
-
Installation Type: Flush Mount
-
Specification Met: Energy Star
-
Fixture Wattage: 9.3 W
-
Lumens/Watt: 97
-
Input Voltage: 120V
-
Dimmable: Yes
-
CRI: 90
-
Fits Housing Diameter: 4-in
