Product Description

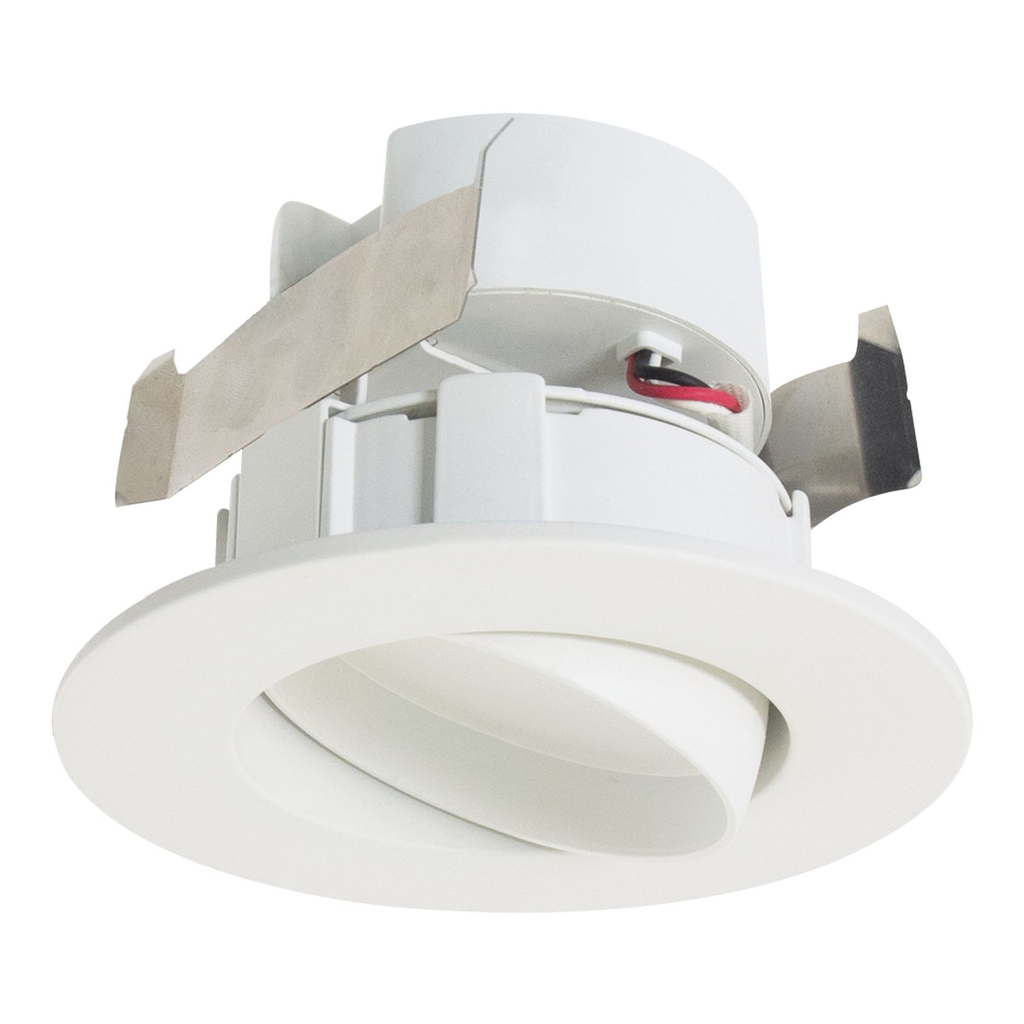

The Halo RA3059FS1EWHR is a 3" retrofit adjustable downlight with 90 CRI and operates at 120V. This LED directional module is suitable for new construction, remodel, and retrofit installations. A CCT selectable switch allows users to choose between five different color temperatures. The adjustable gimbal offers 35° tilt and up to 360° rotation.
- Adjustable gimbal offers 35° tilt and up to 360° rotation
- 90 CRI (min), R9 >50 provides high color rendering
- Suitable for new construction, remodel and retrofit installation
Product Highlights
The Halo RA3059FS1EWHR is a dimmable, energy-efficient lighting solution with selectable color temperatures and easy installation.
Product Information
Standard Information
-
Brand: HALO
-
Manufacturer Part Number: RA3059FS1EWHR
-
Country of Origin: China
Technical Specifications
-
Width: 3.125 in
-
Finish: White
-
Height: 4.688 Inch
-
Length: 4.688 Inch
-
Lumens: 567 Lumen
-
Voltage: 120 Volt
-
Wattage: 7.4 Watt
-
Diameter: 3 Inch
-
Lamp Type: LED
-
Sub Brand: Halo
-
Mounting Type: Ceiling
-
Color Temperature: 5000 K
-
Correlated Color Temp: 2,700 K
-
Brand: HALO
-
MPN: RA3059FS1EWHR
-
CRI: 90
-
Shape: Round
-
Aperture Size: 3-Inch
-
Dimmable: Yes
-
Adjustable Gimbal: 35 Degree tilt and up to 360 Degree rotation
-
Suitable for: New construction, remodel and retrofit installation
-
Frequency Rating: 60 Hz
-
Socket Type: E26 Screw Adapter
-
Power Factor: >0.9
-
Includes: In-Line Electrical Quick-Connect and E26 Adapter
-
For Use With: 3 Inch Housing
-
Temperature Rating: -30 deg C Starting
-
Environmental Conditions: Damp Location
-
Voltage Rating: 120 Volt AC
-
Amperage Rating: 0.078 Amp
-
Standards: UL Listed, IES LM-79-08, IES LM-80-08 and TM-21-11 Tested, IECC, EMI/RFI Per FCC 47CFR Part 15 Consumer Limits, California Title 24, Title 24 JA8-2016-E, RoHS Compliant, Energy Star Qualified
-
Trim Type: Gimbal Ring Baffle
-
Component Type: Retrofit Kit
-
Trim Size: 3 Inch
-
Shade Type: Convex Impact-Resistant Polycarbonate Lens
-
Lamp Included: No
-
Fixture Wattage: 7.4 Watt
-
Driver Type: LE and TE Phase Cut Dimming To 5%
-
Collection: seleCCTable™
-
Ceiling Type: Insulated
-
UNSPSC: 39111505
-
Manufacturer Name: Cooper Lighting
-
UPC: 08008313008
-
Energy Star Flag: No
