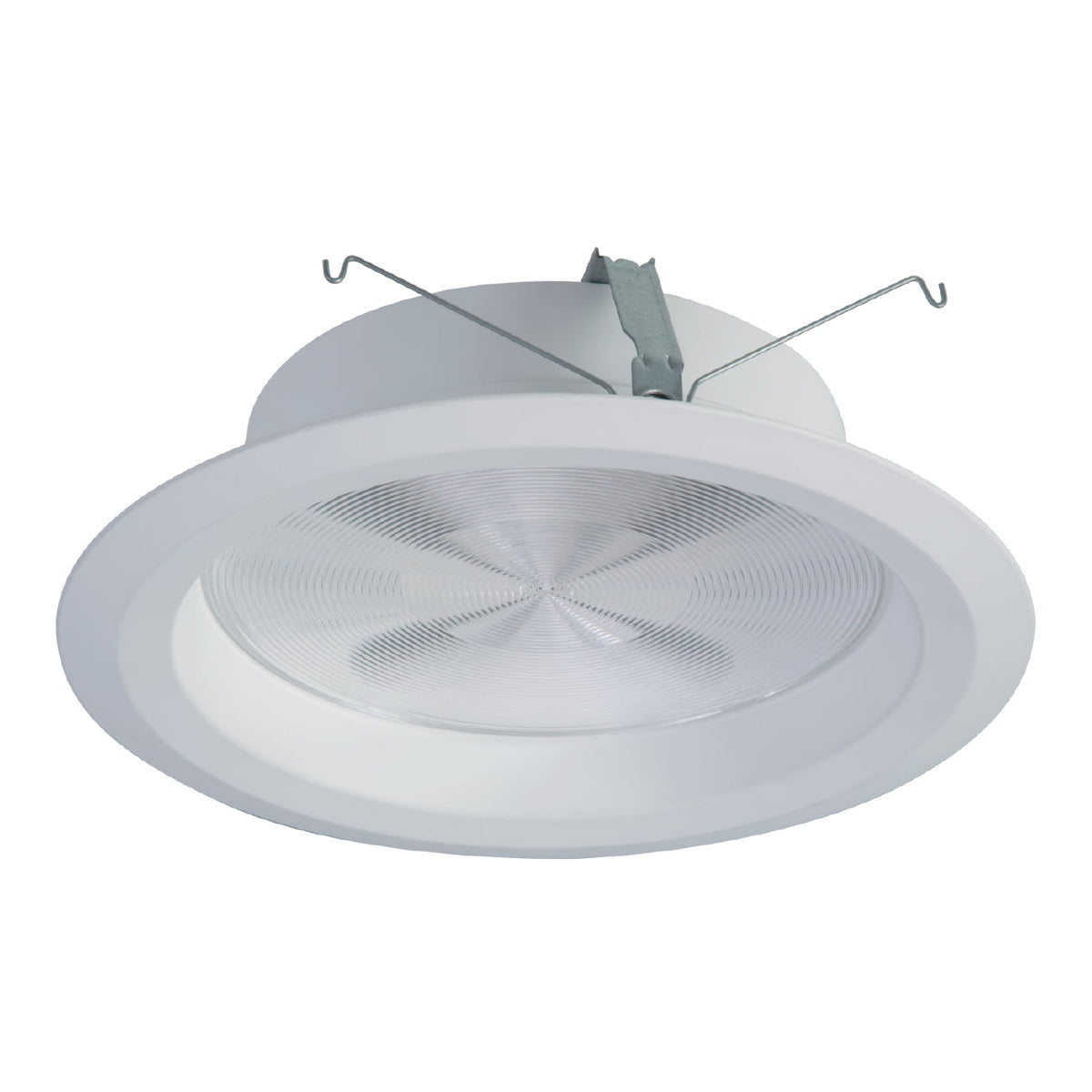

Halo PR8M12WDMW PR8 series LED downlight module 10.5W (8 in / 3.50 in H x 11.63 in W) 1222268

Product Description

The Halo PR8M12WDMW is an 8-inch PR8 series LED downlight module by Halo (MPN PR8M12WDMW) designed for recessed, retrofit, and surface-mounted housings. It operates on universal 120 to 277V input, provides nominal 1,000�2,000 lumens depending on frame selection, and consumes 10.5 watts. The module features aluminum construction, a wide distribution plastic lens, field-selectable color temperatures (3000K/3500K/4000K), and 0�10V dimming to 1%. Certifications include cULus and ENERGY STAR.

• Universal input voltage: 120 to 277V; power consumption 10.5 W
• Selectable nominal lumen outputs: 1000, 1500, or 2000 lm; field-selectable CCT 3000K/3500K/4000K; CRI 80
• Wide distribution plastic lens with field-changeable medium/wide options; compatible with new construction, retrofit and surface housings (retrofits 7", 8" and 9")

Product Highlights

8" LED downlight module, 10.5W, 1000�2000 lm nominal, field-selectable CCT, universal 120�277V, 0�10V dimming

Product Information

Standard Information

• Brand: HALO
• Manufacturer Part Number: PR8M12WDMW
• Country of Origin: Mexico

Technical Specifications

• Brand: Halo
• Manufacturer: Cooper Lighting
• MPN: PR8M12WDMW
• Alternate Part Number: 1222268
• Series: PR8
• Product Type: 8" downlight LED module
• Aperture Size: 8 in
• Material: Aluminum
• Finish: Matte White
• Input Voltage: 120 to 277V
• Power Consumption: 10.5 W
• Lumen Output: Nominal 1000, 1500, or 2000 lm (depends on connected frame)
• Color Temperature: Field selectable: 3000K / 3500K / 4000K
• CRI: 80
• Lens / Distribution: Wide distribution plastic lens; field-changeable medium & wide
• Dimming: 0-10V dimming to 1%
• Mounting Type / Compatibility: New construction, retrofit, and surface mounted housings; retrofits 7", 8" and 9" housings; retrofit collar PR8R12RING for 12" housings
• Dimensions: Height: 3.50 in; Width: 11.63 in
• Certifications / Standards: UL Listed; cULus Certified (UL 1598 / C22.2 No. 250.0); ENERGY STAR certified; RoHS compliant; Suitable for damp locations and wet locations in covered ceilings only; IP55 rated; Airtight per ASTM-E283-04; FCC CFR Title 47 Part 15 Class A at 120/277V
• Contains: No mercury or lead
• UPC: 08008377296
• GTIN: 00080083772964
• UNSPSC: 32151502
• Application: Recessed commercial lighting for general lighting in new construction, remodel, retrofit and surface mount downlights
• Country of Origin: Mexico
