Halo ML5615LSVWFL9FSE010 LED MOD 120-277 650-1100LUM, 5CCT, 0-10V, Less Trim

Product Description

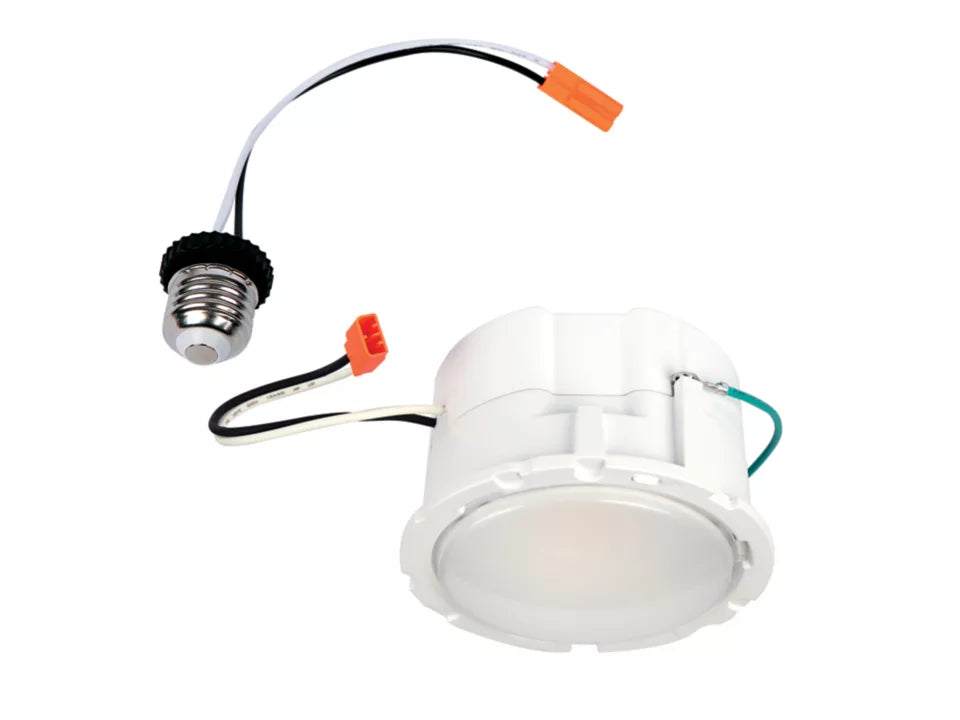

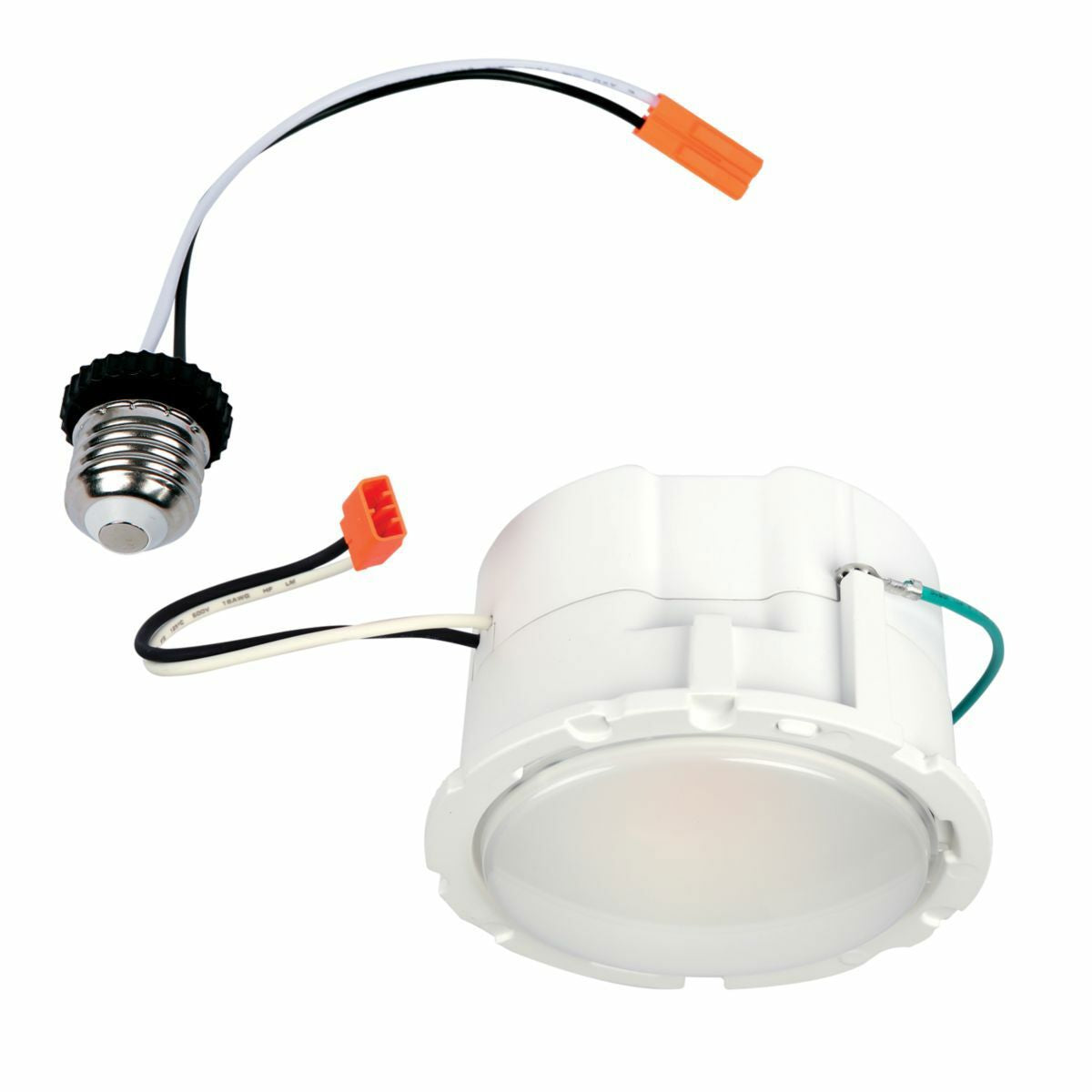

The Halo ML5615LSVWFL9FSE010 is a recessed LED retrofit module suitable for 5 or 6 inch apertures, operating between 120-277V. This 16W module features selectable lumens (650, 900, or 1100) and correlated color temperatures (2700K, 3000K, 3500K, 4000K, or 5000K). It is 0-10V dimmable to 5% and includes a soft focus diffuse lens. Optional TIR optics and lens wall wash are available.

• Offers 5 selectable CCT options: 2700K, 3000K, 3500K, 4000K, 5000K
• Features selectable lumen output from 650 to 1100 lumens
• Suitable for use with 5 or 6 inch new construction or remodel housings

Product Highlights

This LED module with integral driver is designed for new construction or remodel housings. It features selectable lumen output and CCT, and is dimmable to 5%.

Product Information

Standard Information

• Brand: HALO
• Manufacturer Part Number: ML5615LSVWFL9FSE010
• Country of Origin: China

Technical Specifications

• Type: Retrofit Recessed Downlight
• Lumens: Selectable, 650, 900, 1100 Lumens
• Series: ML56
• Lamp Type: LED
• Lens Type: Soft Focus Lens, Polycarbonate
• Average Life: L70 @ 50,000 hours
• Manufacturer: Cooper Lighting Solutions
• Mounting Type: Recessed
• Voltage Rating: 120-277 V
• Amperage Rating: 0.057 A
• Fixture Wattage: 16 W
• Housing Material: Die-Cast Aluminum
• Color Temperature: Selectable, 2700K, 3000K, 3500K, 4000K or 5000K CCT
• Lighting Technology: LED
• Color Rendering Index (CRI): 90 CRI
• Catalog Number: ML5615LSVWFL9FSE010
• Brand: Halo
• Sub Brand: ML56 Series
• Country of Origin: China
• Made in USA: No
• Application: Lighting
• Special Features: 5 Color Selectable CCT: 2700K, 3000K, 3500K, 4000K, 5000K
• Standard: Energy Star;IECC Compliant;Title 24 Compliant;Title 20 Compliant;UL Listed;RoHS Compliant
• UPC: 080083258659
• GTIN: 00080083258659
• Item Type: ML56 LED Module
• Aperture: 5/6 Inch
• Color Temperature Max: 5000K
• Wattage: 16W
• Recessed Size: 5" / 6"
• Dimming: 0-10V dimming to 5% with select controls
• Width: 4.53"
• Height: 3.14"
• Indoor/Outdoor: Indoor/Outdoor
• Fixture Type: Downlight Solid State Retrofit
• Power Factor: 1.0
• ENERGY STAR Certified: Yes
