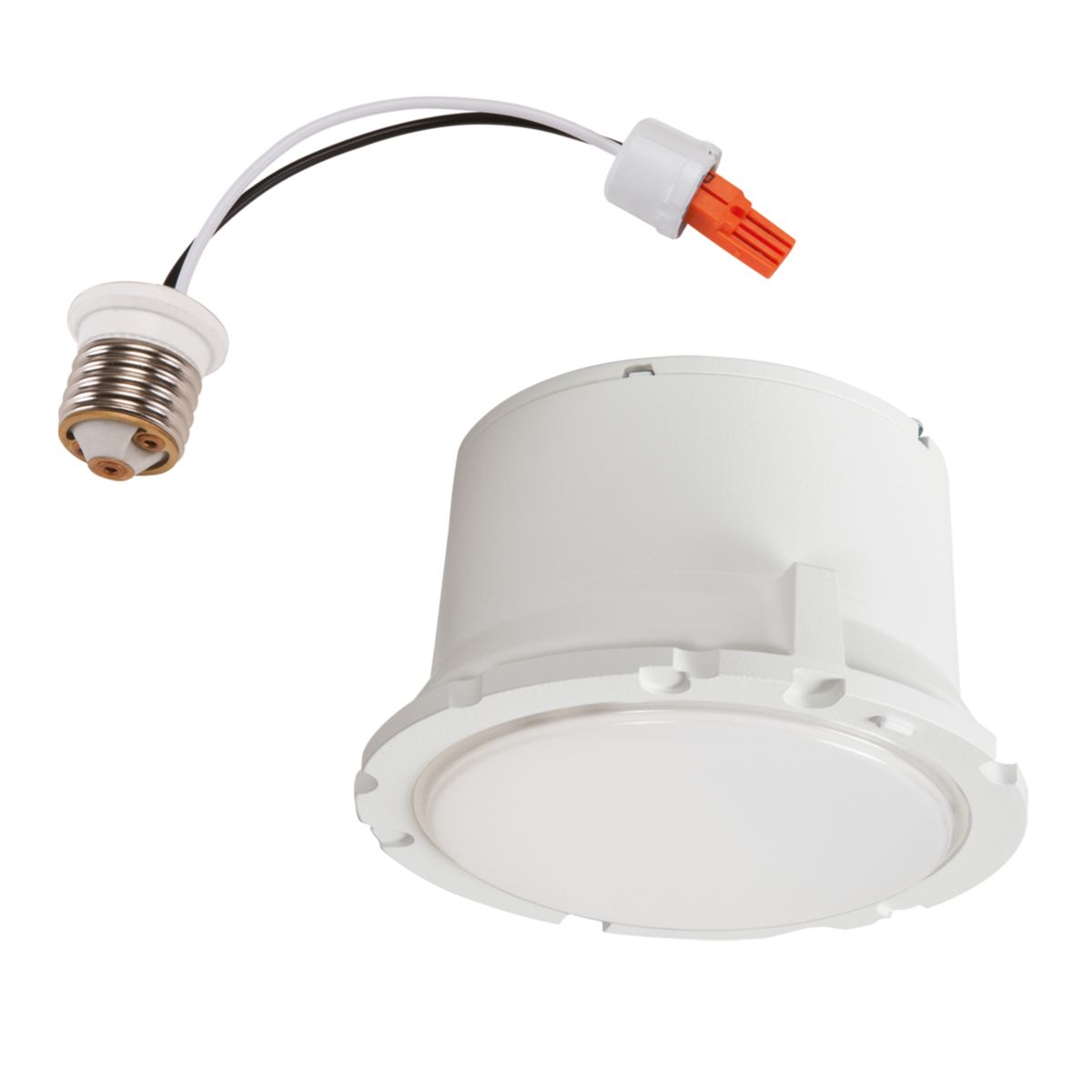

Halo ML5609930 led module 5 inches / 6 inches 900 series 3000k

Product Description

The HALO ML5609930 LED downlight system provides a flexible lighting solution. These 90 CRI modules output 900 lumens and have a color temperature of 3000K. Compatible with Halo LED housings and many existing screw-based housings, the ML56 LED system is suitable for remodel, retrofit, and new construction installations. It operates at 120V and consumes 9.4 watts.

• 6.5 IN Length 6.5 IN Width 6.375 IN Height
• ENERGY STAR® Certified
• 600 Design Lumens (typical), 90 CRI

Product Highlights

The Halo ML56 LED module is a versatile solution for recessed lighting needs, offering high color fidelity and compatibility with various housings.

Product Information

Standard Information

• Brand: HALO
• Manufacturer Part Number: ML5609930
• Country of Origin: Mexico

Technical Specifications

• Type: ML56 LED Module
• Brand: Halo
• Width: 6.5 in
• Height: 6-3/8 Inch
• Length: 6-1/2 Inch
• Lumens: 900 Lumen
• Voltage: 120 Volt
• Wattage: 9.4 Watt
• Amperage: 0.051 (at 277V)
• Diameter: 5/6 Inch
• Lamp Type: LED
• Sub Brand: ML56 LED Recessed Downlights 90 CRI - 5 & 6 inch
• Applications: Lighting
• Ballast Type: N/A
• Aperture Size: 5/6 in
• Mounting Type: Recessed
• Number of Lamps: 1
• Color Temperature: 3000 K
• Correlated Color Temp: 3,000 K
• Base Type: Edison Base
• Dimmable: Yes
• Life: 50,000 Hours
• Beam Angle: Wide Flood
• CRI: 90
• Input Power: 14 Watts
• Input Voltage: 120V - 277V
• UL Listed: Yes
• California Title 24 Compliant: Yes
• ENERGY STAR Qualified: Yes
