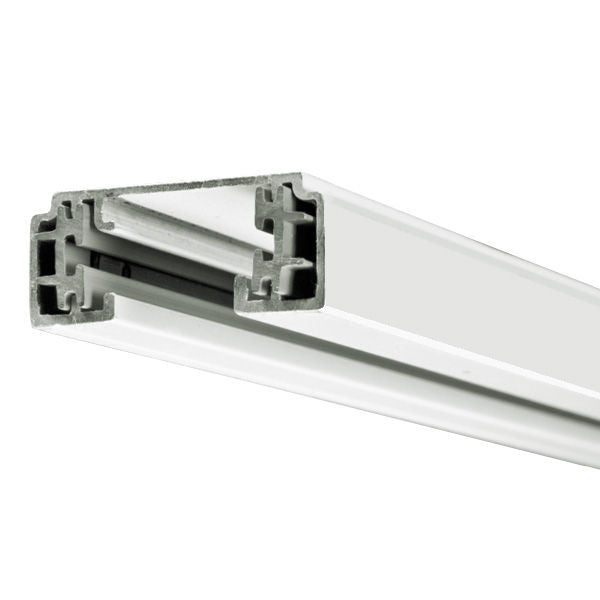

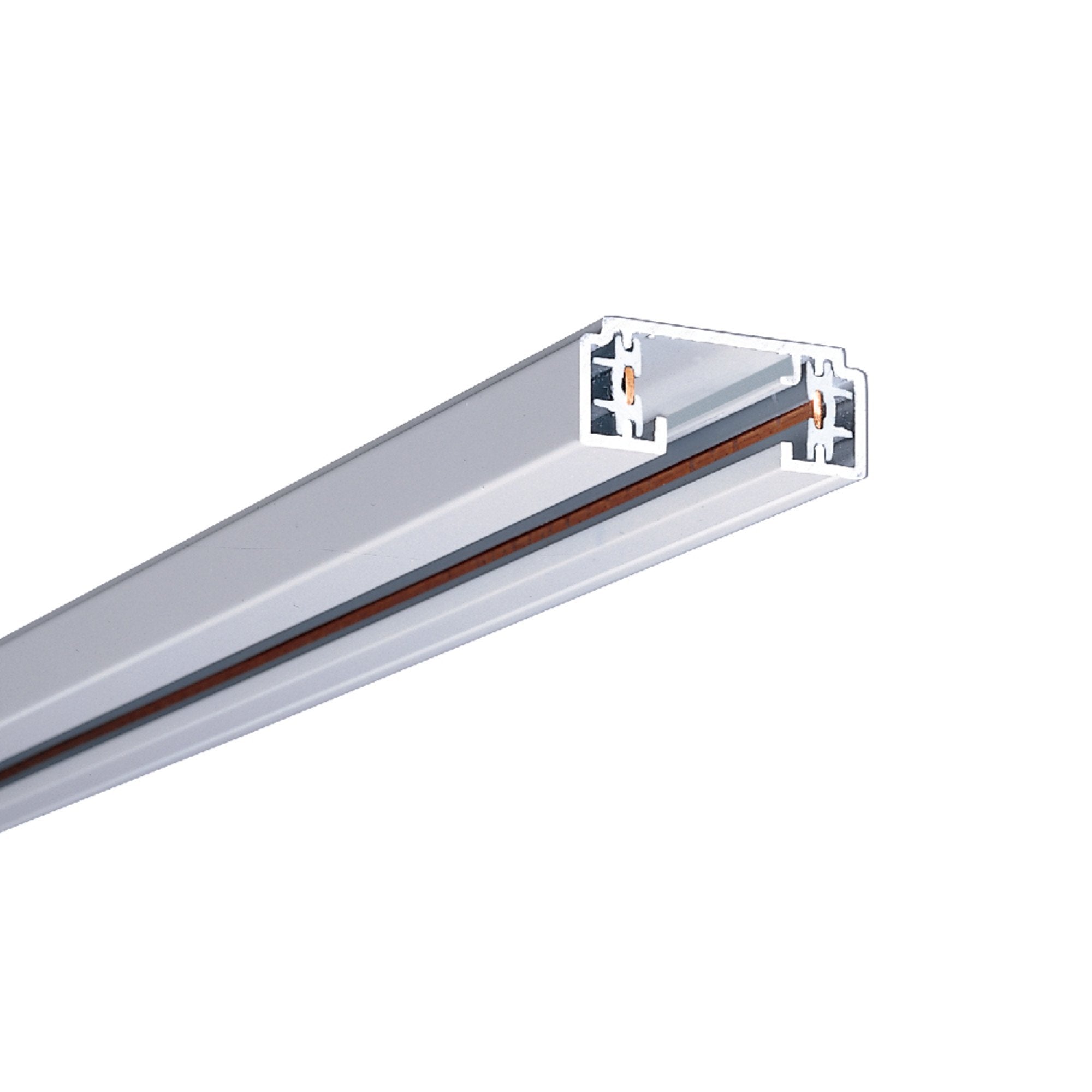

Halo LZR108P Lazer Single Circuit Track 8ft

Product Description

The Halo LZR108P Lazer Two-Conductor track is available in two finishes and 4 lengths. The overall height is only 9/16" and the track has a decorative reveal at the ceiling line. It accepts both Lazer Track lampholders and Halo Power-Trac lampholders. Straight, right angle and flexible connectors allow track to be assembled in almost any pattern.

• Accepts both Lazer Track and Power-Trac luminaires
• Structural channel is extruded aluminum,.050" nominal wall thickness
• Conductors are solid copper encased in rigid extruded PVC insulators

Product Highlights

The Halo LZR108P is a single circuit track that accepts both Lazer Track and Power-Trac luminaires. It features solid copper conductors and an extruded aluminum channel.

Product Information

Standard Information

• Brand: HALO
• Manufacturer Part Number: LZR108P
• Country of Origin: China

Technical Specifications

• Type: Lazer Lampholders and Systems
• Brand: Halo
• Width: 1.75 in
• Height: 3/4 Inch
• Length: 93-3/4 Inch
• Voltage: 120 Volt
• Amperage: 20 Amp
• Sub Brand: LZR102/LZR104/LZR106/LZR108 Lazer 2-Circuit Track
• Product UPC: 66240061745
• 12-Digit UPC: 662400617457
• Applications: Lighting
• Mounting Type: Track
• Number of Lamps: N/A
• Amperage Rating: 20A
• Voltage Rating: 120V
• Suitable For Use With: Both Lazer Track Lampholders and Halo Power-Trac Lampholders
• Material: Aluminum
• Depth: 0.63 in.
• Ratings and Certifications: UL
• Wire Gauge: 12-Gauge Copper Conductors
• Compatibility: H-Type
